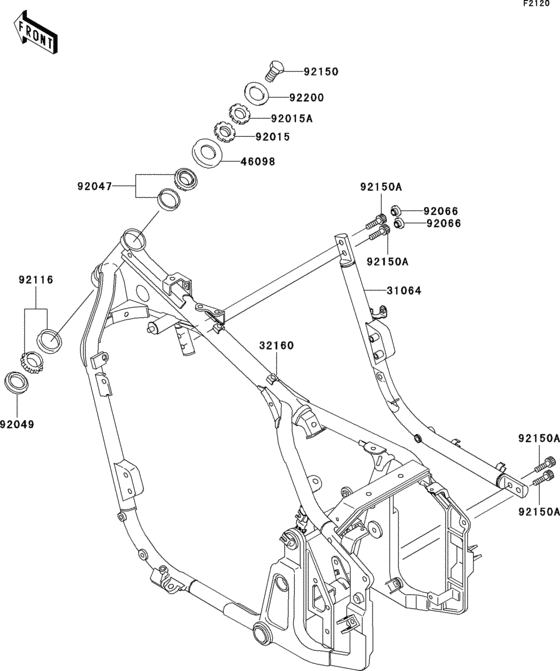

Frame Diagram Kawasaki VN800 Vulcan 800 Drifter
- Year
- 2002
- Model code
- VN800-E2
- Sales region
- Canada
- Engine Capacity
- 800
- Frame
- JKBVNCE1 2A003001 - 2A006000
- Model
- Vulcan 800 Drifter
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31064
|
31064
31064-1221 PIPE-COMP,DOWNTUBE,RH |
31064-1221 |
from US $268.62 |
||
|
32160
|
32160
32160-1697 FRAME-COMP |
32160-1697 |
from US $1,887.60 |
||
|
46098
|
46098
46098017 CAP,STEERING STEM |
46098017 |
from US $4.59 |
||
|
92015
|
92015
92015-1377 NUT,25MM,T=10 |
92015-1377 |
from US $16.16 |
||
|
92015A
|
92015A
92015-1378 NUT,25MM,T=6 |
92015-1378 |
from US $12.99 |
||
|
92047
|
92047
92047-017 BEARING,STEERING STEM |
92047-017 |
from US $25.58 |
||
|
92049
|
92049
92049-1162 SEAL-OIL,XMHE36X52X4J |
92049-1162 |
from US $7.13 |
||
|
92066
|
92066
92066-1285 PLUG |
92066-1285 |
from US $5.23 |
||
|
92116
|
92116
92116-1009 BRG,ROLLER,HR320/28XJ |
92116-1009 |
from US $20.91 |
||
|
92150
|
92150
92150-1672 BOLT,14X25 |
92150-1672 |
from US $8.71 |
||
|
92150A
|
92150A
92150-1942 BOLT,SOCKET,10X23 |
92150-1942 |
from US $3.96 |
||
|
92200
|
92200
92200-1140 WASHER |
92200-1140 |
from US $6.97 |
