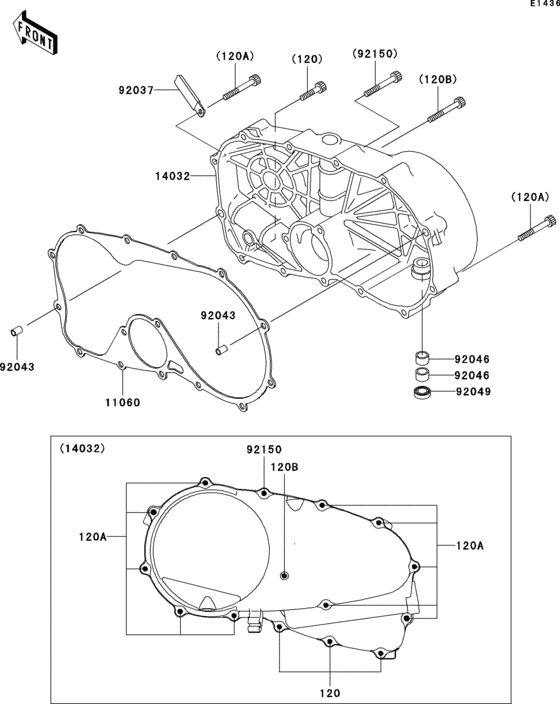

Right engine cover(s) Diagram Kawasaki VN800 Vulcan 800 Drifter
- Year
- 2002
- Model code
- VN800-E2
- Sales region
- Canada
- Engine Capacity
- 800
- Frame
- JKBVNCE1 2A003001 - 2A006000
- Model
- Vulcan 800 Drifter
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120R0630 BOLT-SOCKET,6X30 |
120R0630 |
from US $1.43 |
||
|
120A
|
120A
120R0650 BOLT-SOCKET |
120R0650 |
from US $1.90 |
||
|
120B
|
120B
120R0665 BOLT-SOCKET |
120R0665 |
from US $2.69 |
||
|
11060
|
11060
11060-1926 GASKET,CLUTCH COVER |
11060-1926 |
US $44.37 |
||
| replacement | |||||
|
11060
|
11060
11061-1517 GASKET,CLUTCH COVER |
11061-1517 |
from US $33.95 |
||
|
14032
|
14032
14032-1403 COVER-CLUTCH |
14032-1403 |
from US $497 |
||
|
92037
|
92037
92171-0652 Clamp |
92171-0652 |
from US $1.27 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92046
|
92046
92046-0034 BEARING-NEEDLE,HK1210FM |
92046-0034 |
from US $12.67 |
||
|
92049
|
92049
92049-1271 SEAL-OIL |
92049-1271 |
from US $8.15 |
||
|
92150
|
92150
92150-1436 BOLT,SOCKET,6X50 |
92150-1436 |
from US $3.64 |
||
