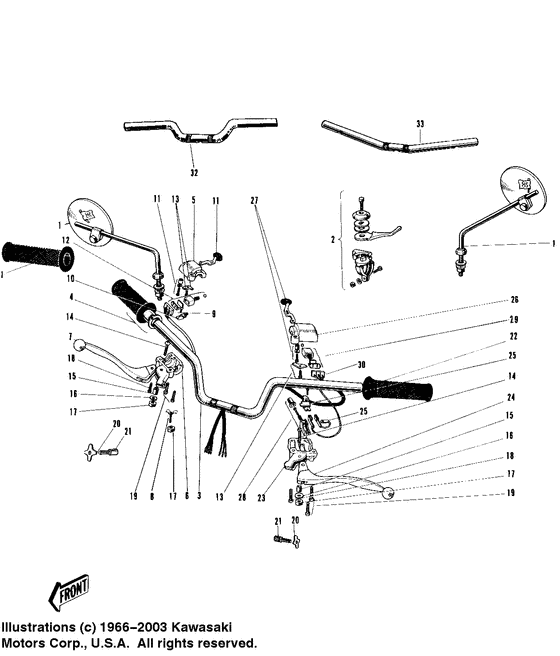

Handlebar (W2ss/w2tt; late production) Diagram Kawasaki W2 Commander
- Year
- 1969
- Model code
- W2
- Sales region
- USA
- Engine Capacity
- 650
- Model
- W2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56001-005
REAR VIEW MIRROR
|
56001-005 |
— | ||
| replacement | |||||
|
1
|
1
56003-016
REAR VIEW MIRROR LH
|
56003-016 |
— | ||
|
2
|
2
46109-007
LEVER ASSY-AIR SHUTT
|
46109-007 |
— | ||
|
3
|
3
46003-015
HANDLEBAR
|
46003-015 |
— | ||
|
4
|
4
46019-005
GRIP ASSY THROTTLE
|
46019-005 |
— | ||
|
5
|
5
46017-1071 GRIP-ASSY,RHGrip-assy,rh; |
46017-1071 |
US $86.94 |
||
|
6
|
6
46022-012 CASE R.H SWITCH LOWER |
46022-012 |
US $26.96 |
||
|
7
|
7
46058-004 LEVER, FRONT BRAKELever front brake; |
46058-004 |
from US $24.91 |
||
|
8
|
8
46024-001 SPRING THROTTLE GRIPI.s.o. thread |
46024-001 |
US $0.18 |
||
|
9
|
9
46032-010
WIRING HARNESS R.H SW
|
46032-010 |
— | ||
|
10
|
10
46037-009
HOLDER R.H SWITCH
|
46037-009 |
— | ||
|
11
|
11
46043-002
KNOB ASSY R.H SWITCH
|
46043-002 |
— | ||
|
12
|
12
46045-004
SLIDE BLOCK AY R.H SW
|
46045-004 |
— | ||
|
13
|
13
46085-012
HOLDER WIRING HARNESS
|
46085-012 |
— | ||
|
14
|
14
92007-018 BOLT HEX HEAD 5X20I.s.o. thread |
92007-018 |
US $3.11 |
||
|
15
|
15
46059-005 COLLAR LEVER |
46059-005 |
US $1.17 |
||
|
16
|
16
464H0500
Washer-lock,5mm
I.s.o. thread |
464H0500 |
— | ||
| replacement | |||||
|
16
|
16
464EA0500
Washer-toothed
I.s.o. thread |
464EA0500 |
— | ||
|
17
|
17
312B0500
NUT-HEX
Nut 5mm; I.s.o. thread |
312B0500 |
— | ||
| replacement | |||||
|
17
|
17
312AA0500 NUT-HEXNut 5mm; I.s.o. thread |
312AA0500 |
from US $0.78 |
||
|
18
|
18
220B0518 SCREW-PAN-CROSScrew pan head 5x18; I.s.o. thread |
220B0518 |
from US $0.79 |
||
| replacement | |||||
|
18
|
18
220AA0518 SCREW-PAN-CROSScrew pan head 5x18; I.s.o. thread |
220AA0518 |
from US $0.94 |
||
|
19
|
19
220B0520
SCREW PAN HEAD 5X20
Screw pan head 5x20; I.s.o. thread |
220B0520 |
— | ||
| replacement | |||||
|
19
|
19
220AA0520 SCREW-PAN-CROSScrew pan head 5x20; I.s.o. thread |
220AA0520 |
from US $0.78 |
||
|
20
|
20
46056-001
NUT,CABLE ADJUST LOCK
|
46056-001 |
— | ||
| replacement | |||||
|
20
|
20
92210-1131
NUT,CABLE ADJUST LOCK
|
92210-1131 |
— | ||
|
21
|
21
46055003 SCREW CABLE ADJUSTScrew cable adjust; D=8 |
46055003 |
from US $11.09 |
||
|
22
|
22
46075-007
RUBBER L.H GRIP
|
46075-007 |
— | ||
|
23
|
23
46077-008
CASE L.H SWITCH LOWER
|
46077-008 |
— | ||
|
24
|
24
46092015 LEVER-CLUTCHLever-clutch; |
46092015 |
from US $20.45 |
||
|
25
|
25
46085-008 HOLDER L.H SWITCH |
46085-008 |
US $4.32 |
||
|
26
|
26
46086-007
CASE L.H SWITCH UPPER
|
46086-007 |
— | ||
|
27
|
27
46088-001 KNOB ASSY L.H SWITCH |
46088-001 |
US $8.62 |
||
|
28
|
28
46078-003 SWITCH ASSY,HORN BUTN |
46078-003 |
US $7.49 |
||
| replacement | |||||
|
28
|
28
27010-1009 SWITCH ASSY,HORN BUTN |
27010-1009 |
from US $6.49 |
||
|
29
|
29
46089-002 SLIDE BLOCK AY L.H SW |
46089-002 |
US $10.91 |
||
|
30
|
30
46082-011
WIRING HARNESS L.H SW
|
46082-011 |
— | ||
|
31
|
31
46061-009
RUBBER R.H GRIP
|
46061-009 |
— | ||
|
32
|
32
46006-005
New Genuine Part
|
46006-005 |
— | ||
|
33
|
33
46005-004
New Genuine Part
|
46005-004 |
— | ||
|
4
|
4
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
5
|
5
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
6
|
6
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
7
|
7
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
8
|
8
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
9
|
9
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
10
|
10
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
11
|
11
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
12
|
12
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
13
|
13
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
14
|
14
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
15
|
15
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
16
|
16
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
17
|
17
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
18
|
18
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
19
|
19
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
20
|
20
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
21
|
21
46017-042
GRIP ASSY-R.H
|
46017-042 |
— | ||
|
14
|
14
46074-040 GRIP-ASSY-LEFT |
46074-040 |
US $125.05 |
||
