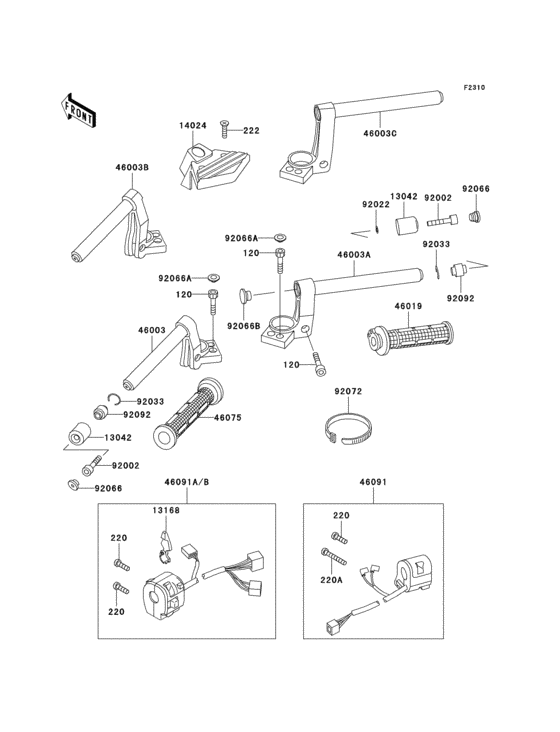

Handlebar Diagram Kawasaki ZG1000 Concours
- Year
- 2000
- Colour
- Kmm.candy Persimmon Red / Pearl Cosmic Gray (FV)
- Model code
- ZG1000-A15
- Sales region
- Europe (General)
- Engine Capacity
- 1000
- Model
- ZG1000 Concours
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0820 BOLT-SOCKET,8X20 |
120S0820 |
from US $1.74 |
||
| replacement | |||||
|
120
|
120
120CB0820 BOLT-SOCKET,8X20 |
120CB0820 |
from US $1.27 |
||
|
220
|
220
220C0525
SCREW-PAN-CROS
|
220C0525 |
— | ||
| replacement | |||||
|
220
|
220
220AB0525 SCREW-PAN-CROS |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220C0540 SCREW-PAN-CROSS,5X40 |
220C0540 |
from US $1.11 |
||
| replacement | |||||
|
220A
|
220A
220AB0540 SCREW-PAN-CROSS,5X40 |
220AB0540 |
from US $0.95 |
||
|
13042
|
13042
13042-1006 WEIGHT,HANDLE |
13042-1006 |
from US $34.26 |
||
| replacement | |||||
|
13042
|
13042
13042-5002 WEIGHT,HANDLE |
13042-5002 |
from US $31.72 |
||
|
13168
|
13168
13168-1516 LEVER,CHOKE |
13168-1516 |
from US $6.81 |
||
|
14024
|
14024
14024-1104 COVER,HANDLE |
14024-1104 |
from US $16.49 |
||
|
46003
|
46003
46003-1213 HANDLE,LH |
46003-1213 |
from US $278.38 |
||
|
46003A
|
46003A
46003-1214 HANDLE,RH |
46003-1214 |
from US $278.38 |
||
|
46003B
|
46003B
46003-1246 HANDLE,LH |
46003-1246 |
from US $334.05 |
||
|
46003C
|
46003C
46003-1247 HANDLE,RH |
46003-1247 |
from US $334.05 |
||
|
46019
|
46019
46019-1077 GRIP-ASSY,THROTTLE |
46019-1077 |
from US $28.12 |
||
|
46075
|
46075
46075-1088 GRIP,LH |
46075-1088 |
from US $15.21 |
||
|
46091
|
46091
46091-1672 HOUSING-ASSY-CONTROL, |
46091-1672 |
from US $121.33 |
||
|
46091A
|
46091A
46091-1716 HOUSING-ASSY-CONTROL, |
46091-1716 |
US $186.78 |
||
| replacement | |||||
|
46091A
|
46091A
46091-1857 HOUSING-ASSY-CONTROL, |
46091-1857 |
US $198.27 |
||
|
92002
|
92002
92002-1844 BOLT,SOCKET,8X30 |
92002-1844 |
from US $3.48 |
||
| replacement | |||||
|
92002
|
92002
92154-1866 BOLT,SOCKET,8X30 |
92154-1866 |
from US $3.17 |
||
|
92022
|
92022
92022-1470 WASHER,8.5X14.5X1.6 |
92022-1470 |
from US $2.69 |
||
|
92033
|
92033
92033-1102 RING-SNAP,OD=22.2 |
92033-1102 |
US $2.53 |
||
| replacements | |||||
|
92033
|
92033
13042-5001 WEIGHT,HANDLE |
13042-5001 |
from US $31.72 |
||
|
92033
|
92033
13042-5002 WEIGHT,HANDLE |
13042-5002 |
from US $31.72 |
||
|
92033
|
92033
13042-5003 WEIGHT,HANDLE |
13042-5003 |
from US $32.34 |
||
|
92066
|
92066
92066-1124 PLUG,HANDLE |
92066-1124 |
US $7.67 |
||
|
92066A
|
92066A
92066-1216 PLUG,HANDLE HOLDER |
92066-1216 |
from US $3.01 |
||
|
92066B
|
92066B
92066-1245 PLUG,13.5X12,POLYETHY |
92066-1245 |
from US $3.27 |
||
|
92072
|
92072
92072-1197 BAND |
92072-1197 |
from US $5.07 |
||
|
92092
|
92092
92092-1018 BUSHING-RUBBER,HANDLE |
92092-1018 |
from US $9.35 |
||
| replacements | |||||
|
92092
|
92092
13042-5002 WEIGHT,HANDLE |
13042-5002 |
from US $31.72 |
||
|
92092
|
92092
13042-5003 WEIGHT,HANDLE |
13042-5003 |
from US $32.34 |
||
