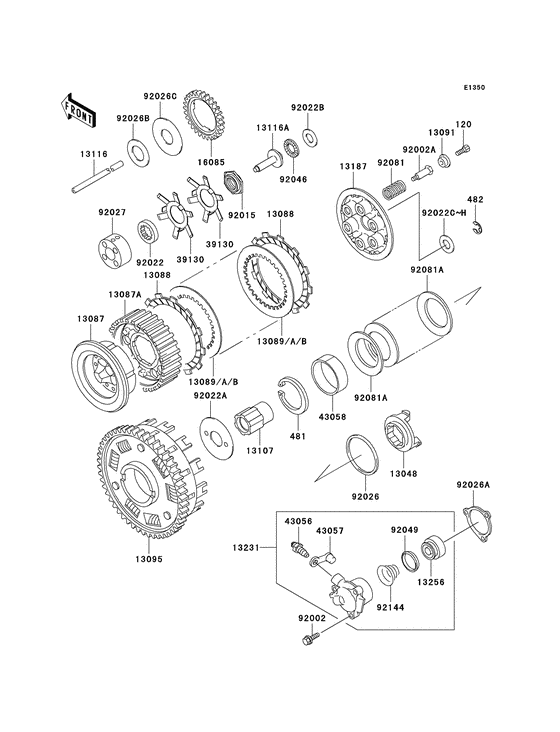

Clutch Diagram Kawasaki ZG1000 Concours
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- ZG1000 Concours
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13048
|
13048
13048-1007 DAMPER |
13048-1007 |
from US $74.05 |
||
|
13087
|
13087
13087-1071 Hub-clutch |
13087-1071 |
from US $283.10 |
||
|
13087A
|
13087A
13087-1072 Hub-clutch |
13087-1072 |
from US $393.49 |
||
|
13088
|
13088
13088-1051 PLATE-FRICTION |
13088-1051 |
from US $17.39 |
||
|
13089
|
13089
13089-1004 PLATE,CLUTCH,STEEL T=2.3Plate-clutch,t=2.3; |
13089-1004 |
from US $13.15 |
||
|
13089A
|
13089A
13089-1067 PLATE-CLUTCH,T=2.6Plate-clutch,t=2.6; |
13089-1067 |
from US $14.08 |
||
|
13089B
|
13089B
13089-1068 PLATE-CLUTCH,T=2.0Plate-clutch,t=2.0; |
13089-1068 |
from US $13.04 |
||
|
13091
|
13091
13091-1041 HOLDER,CLUTCH,SPRINGHolder,clutch spring; |
13091-1041 |
from US $8.87 |
||
|
13095
|
13095
13095-1146
HOUSING-COMP-CLUTCH
|
13095-1146 |
— | ||
|
13107
|
13107
13107-1299 SHAFT,CLUTCHShaft,clutch; |
13107-1299 |
from US $53.56 |
||
|
13116
|
13116
13116-0006 ROD-PUSH,CLUTCHRod-push,clutch; |
13116-0006 |
from US $20.79 |
||
|
13116A
|
13116A
13116-1119 ROD-PUSH,CLUTCHRod-push,clutch; |
13116-1119 |
from US $24.88 |
||
|
13187
|
13187
13187-1055 PLATE-CLUTCH OPERATIN |
13187-1055 |
from US $63.73 |
||
|
13231
|
13231
13231-1072 RELEASE-ASSY-CLUTCH |
13231-1072 |
from US $96.34 |
||
|
13256
|
13256
13256-1052 PISTON |
13256-1052 |
from US $40.09 |
||
|
16085
|
16085
16085-1108 GEAR,OIL PUMPGear,oil pump; |
16085-1108 |
from US $125.07 |
||
|
39130
|
39130
39130-1071 SPRING-LEAF |
39130-1071 |
from US $8.87 |
||
|
43056
|
43056
43056-1052 BREATHER,BRAKE |
43056-1052 |
US $12.47 |
||
| replacement | |||||
|
43056
|
43056
43056-1056 BREATHER,BRAKE |
43056-1056 |
from US $10.14 |
||
|
43057
|
43057
43057-1001 CAP-BREATHER |
43057-1001 |
from US $3.48 |
||
|
43058
|
43058
43058-1059 RING |
43058-1059 |
from US $11.98 |
||
|
92002
|
92002
92002-1344
BOLT,FLANGED,6X25
Bolt,6x25; |
92002-1344 |
— | ||
| replacement | |||||
|
92002
|
92002
92154-0497 BOLT,FLANGED,6X25Bolt,6x25; |
92154-0497 |
from US $0.79 |
||
|
92002A
|
92002A
92002-1639 BOLT,CLUTCHBolt,clutch; |
92002-1639 |
from US $7.60 |
||
|
92015
|
92015
92015-1929
NUT
|
92015-1929 |
— | ||
|
92022
|
92022
92022-1114 WASHER,LOCKWasher,toothed,25x40x5; |
92022-1114 |
from US $9.03 |
||
|
92022A
|
92022A
92022-1221 WASHER,CLUTCH THRUSTWasher,clutch thrust; |
92022-1221 |
from US $9.03 |
||
|
92022B
|
92022B
92022-1463 WASHER,15.1X29X1.0Washer,15.1x29x1.0; |
92022-1463 |
from US $3.01 |
||
|
92022C
|
92022C
92022-1750 WASHERWasher,15.1x23x1.0; |
92022-1750 |
from US $5.28 |
||
|
92022D
|
92022D
92022-1751 WASHERWasher,15.1x23x0.8; |
92022-1751 |
from US $5.28 |
||
|
92022E
|
92022E
92022-1752 WASHERWasher,15.1x23x1.2; |
92022-1752 |
from US $5.28 |
||
|
92022F
|
92022F
92022-1753 WASHERWasher,15.1x23x1.4; |
92022-1753 |
from US $5.28 |
||
|
92022G
|
92022G
92022-1754 WASHERWasher,15.1x23x1.6; |
92022-1754 |
from US $5.28 |
||
|
92022H
|
92022H
92022-1755 WASHERWasher,15.1x23x1.8; |
92022-1755 |
from US $4.98 |
||
|
92026
|
92026
92026-1043 SPACER,3.5X59X70Spacer,59x70x3.5; |
92026-1043 |
from US $17.27 |
||
|
92026A
|
92026A
92026-1263 SPACER,CLUTCH RELEASESpacer,clutch release; |
92026-1263 |
from US $12.93 |
||
|
92026B
|
92026B
92026-1306 SPACERSpacer,25x45x2.0; |
92026-1306 |
from US $11.09 |
||
|
92026C
|
92026C
92026-1307 SPACERSpacer,25x62x2.0; |
92026-1307 |
from US $11.09 |
||
|
92027
|
92027
92027-1710 COLLAR |
92027-1710 |
from US $68.52 |
||
|
92046
|
92046
92046-1052 BEARING-NEEDLE,AXK110Bearing-needle,axk1102; |
92046-1052 |
from US $14.52 |
||
|
92049
|
92049
92049-1165 SEAL-OIL,PISTONSeal-oil,piston; |
92049-1165 |
from US $12.51 |
||
|
92081
|
92081
92081-1114 SPRING,CLUTCHSpring,clutch; |
92081-1114 |
from US $4.91 |
||
|
120
|
120
120Q0616 Bolt,socket,6x16Bolt-socket,6x16; |
120Q0616 |
US $36.20 |
||
| replacement | |||||
|
120
|
120
92002-1166 BOLT,SOCKET,6X16Bolt-socket,6x16; |
92002-1166 |
from US $3.80 |
||
|
481
|
481
481J9500 CIRCLIP |
481J9500 |
from US $3.27 |
||
|
482
|
482
482J0200 CIRCLIP-TYPE-E,12MMCirclip-type-e,12mm; |
482J0200 |
from US $1.11 |
||
|
92081A
|
92081A
92081-1906 SPRING |
92081-1906 |
from US $19.28 |
||
|
92144
|
92144
92144-1084 SPRING,CLUTCH RELEASESpring,clutch release; |
92144-1084 |
from US $5.54 |
||
