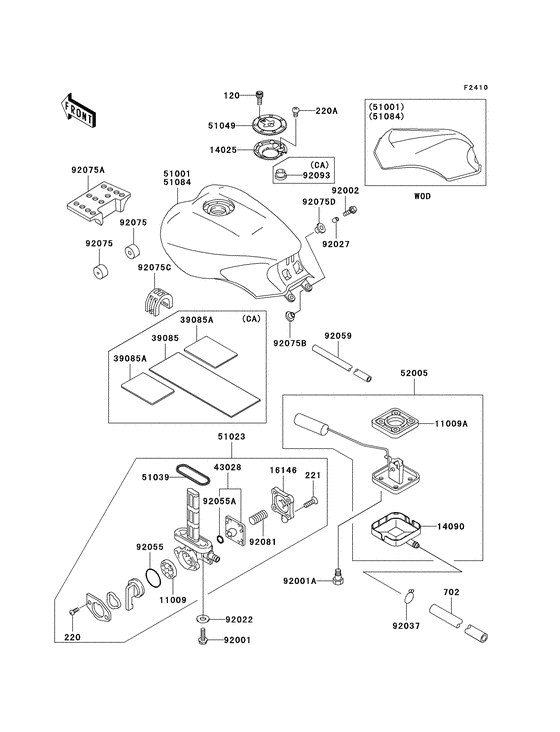

Fuel tank Diagram Kawasaki ZG1000 Concours
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- ZG1000 Concours
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1530 GASKET,TAP VALVEGasket,tap valve; |
11009-1530 |
from US $5.76 |
||
|
11009A
|
11009A
11009-1656
GASKET,FUEL GAUGE
Gasket,fuel gauge; |
11009-1656 |
— | ||
| replacement | |||||
|
11009A
|
11009A
11061-0292 GASKET,FUEL GAUGE,W/BGasket,fuel gauge; |
11061-0292 |
from US $11.98 |
||
|
14025
|
14025
14025-1913 COVERCover,tank cap; |
14025-1913 |
from US $16.47 |
||
|
14090
|
14090
14090-1624 COVER,FUEL GAUGECover,fuel gauge; |
14090-1624 |
from US $12.67 |
||
|
16146
|
16146
16146-1005 COVER ASSY,TAPCover-assy,tap diaphragm; |
16146-1005 |
from US $16.16 |
||
|
39085
|
39085
39085-1060 PAD-TANK,CNTPad-tank,cnt; |
39085-1060 |
from US $41.05 |
||
|
39085A
|
39085A
39085-1061 PAD-TANK,SIDEPad-tank,side; |
39085-1061 |
from US $17.73 |
||
|
43028
|
43028
43028-1015 DIAPHRAGM ASSY,TAPDiaphragm,tap; |
43028-1015 |
from US $16.79 |
||
|
51001
|
51001
51001-1616-TK TANK-COMP-FUEL,M.N.BLTank-comp-fuel,m.n.blue; |
51001-1616-TK |
from US $652.55 |
||
|
51023
|
51023
51023-1388 TAP-ASSY,FUELTap-assy,fuel; |
51023-1388 |
US $154.49 |
||
| replacement | |||||
|
51023
|
51023
51023-0726 Fuel Tap AssyTap-assy,fuel; |
51023-0726 |
from US $114.11 |
||
|
51039
|
51039
51039-010 O-RINGRing,tap flanged; |
51039-010 |
from US $5.54 |
||
|
51049
|
51049
51049-1131 CAP-TANK,FUELCap-tank,fuel; |
51049-1131 |
from US $91.70 |
||
| replacement | |||||
|
51049
|
51049
51049-0022 CAP-TANK,FUELCap-tank,fuel; |
51049-0022 |
from US $77.92 |
||
|
51084
|
51084
51084-5066-TK TANK-COMP-FUEL,M.N.BLTank-comp-fuel,m.n.blue; |
51084-5066-TK |
from US $691.70 |
||
|
52005
|
52005
52005-1078 GAUGE,FUELGauge,fuel; |
52005-1078 |
US $120.26 |
||
| replacement | |||||
|
52005
|
52005
52005-5020 GAUGE,FUELGauge,fuel; |
52005-5020 |
US $155.19 |
||
|
92001
|
92001
92001-1091 BOLT,6X20,FUEL TAPBolt,6x20; |
92001-1091 |
from US $2.53 |
||
|
92001A
|
92001A
92001-1705
BOLT,FUEL GAGE
Bolt,fuel gauge; |
92001-1705 |
— | ||
|
120
|
120
120S0512
BOLT-SOCKET,5X12
Bolt-socket,5x12; |
120S0512 |
— | ||
| replacement | |||||
|
120
|
120
120CB0512 BOLT-SOCKET,5X12Bolt-socket,5x12; |
120CB0512 |
from US $0.95 |
||
|
220
|
220
220B0308
SCREW PAN HEAD 3X8
Screw-pan-cros,3x8; |
220B0308 |
— | ||
| replacement | |||||
|
220
|
220
220AA0308 SCREW-PAN-CROSScrew-pan-cros,3x8; |
220AA0308 |
from US $0.79 |
||
|
220A
|
220A
220F0508
SCREW-PAN-CROS
Screw-pan-cross,5x8; |
220F0508 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0508 SCREW-PAN-CROSScrew-pan-cross,5x8; |
220AB0508 |
from US $0.88 |
||
|
221
|
221
221B0414
SCREW-CSK-CROS,4X14
Screw-csk-cros,4x14; |
221B0414 |
— | ||
| replacement | |||||
|
221
|
221
221AA0414 SCREW-CSK-CROS,4X14Screw-csk-cros,4x14; |
221AA0414 |
from US $0.79 |
||
|
702
|
702
702A07780 TUBE-BREATHER (BULK)Tube-rubber,7x10x780; |
702A07780 |
US $12.13 |
||
| replacements | |||||
|
702
|
702
702A071000 TUBE-BREATHER (BULK)Tube-rubber,7x10x780; |
702A071000 |
from US $11.40 |
||
|
702
|
702
702A07860
TUBE-BREATHER (BULK)
Tube-rubber,7x10x780; |
702A07860 |
— | ||
|
92002
|
92002
92002-1137 BOLT,6X25Bolt,6x25; |
92002-1137 |
from US $3.17 |
||
|
92022
|
92022
92022-183 WASHER-PLAINWasher,6.2x11x1.5; |
92022-183 |
from US $2.53 |
||
|
92027
|
92027
92027-156
COLLAR 6.8X10X14.5
Collar,6.8x10x14.5; |
92027-156 |
— | ||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $4.95 |
||
|
92055
|
92055
92055-1027
0 RING,TAP LEVER
Ring-o,tap lever; |
92055-1027 |
— | ||
| replacement | |||||
|
92055
|
92055
92055-0963 Ring-O,tap LeverRing-o,tap lever; |
92055-0963 |
from US $4.49 |
||
|
92055A
|
92055A
92055-1664 RING-O |
92055-1664 |
from US $3.01 |
||
|
92059
|
92059
92059-1726 TUBETube,5x8x600; |
92059-1726 |
US $23.27 |
||
| replacement | |||||
|
92059
|
92059
92059-1442
TUBE
Tube,5x8x600; |
92059-1442 |
— | ||
|
92075
|
92075
92075-125 DAMPER RUBBER,FL TANKDamper,fuel tank; |
92075-125 |
from US $4.44 |
||
|
92075A
|
92075A
92075-1672
DAMPER,FUEL TANK
Damper,fuel tank; |
92075-1672 |
— | ||
|
92075B
|
92075B
92075-174 RUBBER,FENDER COVERDamper,male; |
92075-174 |
from US $3.48 |
||
|
92075C
|
92075C
92075-1741 DAMPER,FUEL TANKDamper,fuel tank; |
92075-1741 |
from US $10.27 |
||
|
92075D
|
92075D
92075-175 DAMPER RUBBERDamper,female; |
92075-175 |
from US $3.33 |
||
|
92081
|
92081
92081-1171 SPRING,TAPSpring,tap diaphragm; |
92081-1171 |
from US $3.33 |
||
|
92093
|
92093
92093-1030 OIL SEAL,FUEL TANKSeal,fuel tank cap; |
92093-1030 |
from US $5.23 |
||
