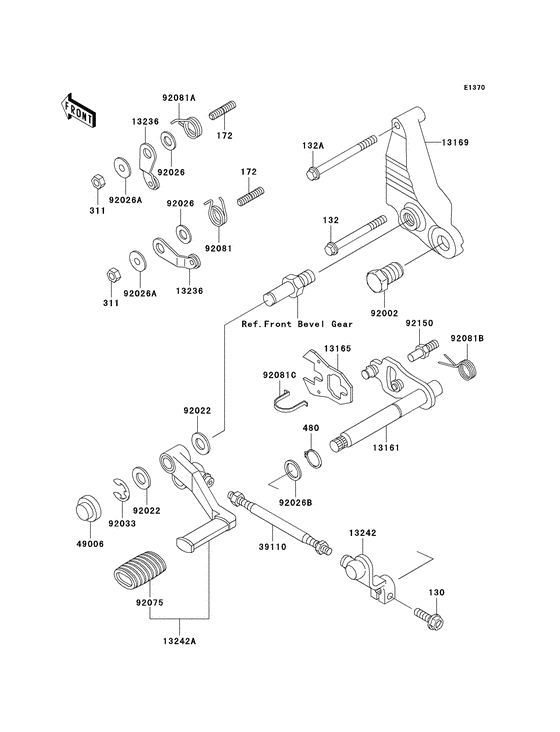

Gear change mechanism Diagram Kawasaki ZG1000 Concours
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- ZG1000 Concours
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130S0620 BOLT-FLANGED,6X20,BLCBolt-flanged,6x20; |
130S0620 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLCBolt-flanged,6x20; |
130CB0620 |
from US $1.11 |
||
|
132
|
132
132J0660 BOLT,6X60Bolt-flanged-small,6x60; |
132J0660 |
US $40.50 |
||
| replacement | |||||
|
132
|
132
132BB0660 BOLT,6X60Bolt-flanged-small,6x60; |
132BB0660 |
from US $3.17 |
||
|
132A
|
132A
132J0670 BOLT-FLANGED-SMALLBolt-flanged-small,6x70; |
132J0670 |
from US $1.90 |
||
| replacement | |||||
|
132A
|
132A
132BB0670 BOLT-FLANGED-SMALLBolt-flanged-small,6x70; |
132BB0670 |
from US $1.43 |
||
|
172
|
172
172G0614 STUD,6X14Bolt-stud,6x14; |
172G0614 |
from US $1.11 |
||
| replacement | |||||
|
172
|
172
172BA0614 STUD,6X14Bolt-stud,6x14; |
172BA0614 |
from US $1.11 |
||
|
311
|
311
311G0600 NUT-HEXNut-hex,6mm; |
311G0600 |
US $0.95 |
||
| replacement | |||||
|
311
|
311
311BA0600 NUT-HEXNut-hex,6mm; |
311BA0600 |
from US $0.95 |
||
|
480
|
480
480J1300 CIRCLIP,13MMCirclip-type-c,13mm; |
480J1300 |
from US $1.11 |
||
|
13161
|
13161
13161-1123 LEVER-COMP-CHANGE SHA |
13161-1123 |
from US $59.41 |
||
|
13165
|
13165
13165-1120 PAWL |
13165-1120 |
from US $9.98 |
||
|
13169
|
13169
13169-1663 PLATE,CHANGE PEDALPlate,change pedal; |
13169-1663 |
from US $40.44 |
||
|
13236
|
13236
13236-1103 LEVER-COMP,GEAR POSITLever-comp,gear position; |
13236-1103 |
from US $14.41 |
||
|
13242
|
13242
13242-1195 LEVER-ASSY-CHANGE |
13242-1195 |
from US $41.99 |
||
|
13242A
|
13242A
13242-1213 LEVER-ASSY-CHANGE,PEDLever-assy-change,pedal; |
13242-1213 |
from US $93.63 |
||
|
39110
|
39110
39110-1071 ROD-ASSY-TIE,CHANGE PRod-assy-tie,change pedal; |
39110-1071 |
from US $7.46 |
||
|
49006
|
49006
49006-1061 BOOT,CHANGE LEVERBoot,change lever; |
49006-1061 |
from US $5.60 |
||
|
92002
|
92002
92002-1816 BOLTBolt,m14x22; |
92002-1816 |
from US $5.28 |
||
|
92022
|
92022
92022-1593 WASHER,12.5X22X1.2Washer,12.5x22x1.2; |
92022-1593 |
from US $3.01 |
||
|
92026
|
92026
92026-094 WASHER,THRUSTSpacer,6.3x12x1.0; |
92026-094 |
from US $5.70 |
||
|
92026A
|
92026A
92026-1217 SPACER |
92026-1217 |
from US $3.33 |
||
|
92026B
|
92026B
92026-1532 SPACERSpacer,13.3x18x1.0; |
92026-1532 |
from US $2.69 |
||
|
92033
|
92033
92033-1178 RING-SNAPRing-snap,type-e,10mm; |
92033-1178 |
from US $2.69 |
||
|
92075
|
92075
92075-1175
DAMPER RUBR GEAR CHNG
Damper,change pedal; |
92075-1175 |
— | ||
|
92081
|
92081
92081-1645 SPRING |
92081-1645 |
from US $9.66 |
||
|
92081A
|
92081A
92081-1742 SPRING |
92081-1742 |
from US $7.92 |
||
|
92081B
|
92081B
92081-1750 SPRING,CHANGE PEDAL RSpring,change pedal return; |
92081-1750 |
from US $7.60 |
||
|
92081C
|
92081C
92081-1829 SPRING,CHANGE LEVERSpring,change lever; |
92081-1829 |
from US $5.70 |
||
|
92150
|
92150
92150-1869 BOLT,RETURN SPRINGBolt,return spring; |
92150-1869 |
from US $5.70 |
||
| replacement | |||||
|
92150
|
92150
92154-1885 BOLT,RETURN SPRINGBolt,return spring; |
92154-1885 |
from US $5.39 |
||
