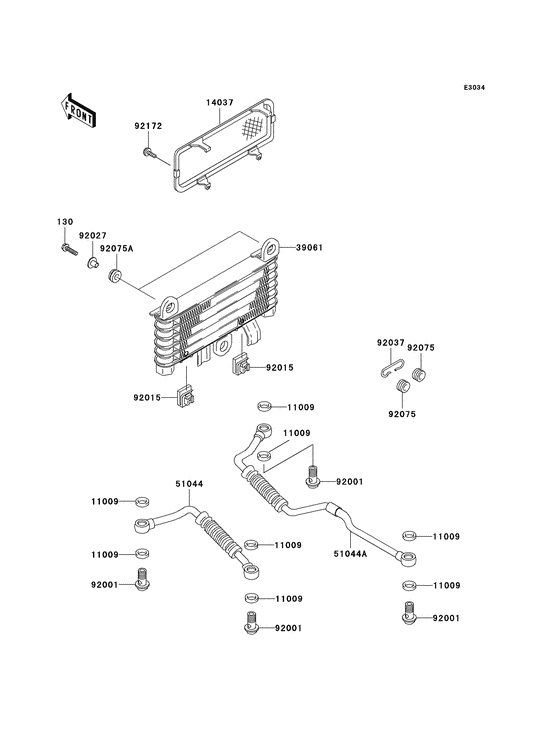

Oil cooler Diagram Kawasaki ZG1000 Concours
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- ZG1000 Concours
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0625
BOLT-FLANGED,6X25
Bolt-flanged,6x25; |
130J0625 |
— | ||
| replacement | |||||
|
130
|
130
130BB0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130BB0625 |
from US $1.61 |
||
|
11009
|
11009
11009-1461 GASKET,14X19.5X1.4Gasket,14x19.5x1.4; |
11009-1461 |
from US $3.47 |
||
|
14037
|
14037
14037-1073 SCREEN,OIL COOLERScreen,oil cooler; |
14037-1073 |
from US $55.43 |
||
|
39061
|
39061
39061-1117 Oil Cooler |
39061-1117 |
from US $534.99 |
||
|
51044
|
51044
51044-1068 TUBE-ASSY,OIL COOLER,Tube-assy,oil cooler,lh; |
51044-1068 |
from US $240.74 |
||
|
51044A
|
51044A
51044-1086 TUBE-ASSY,OIL COOLER,Tube-assy,oil cooler,rh; |
51044-1086 |
from US $240.74 |
||
|
92001
|
92001
92001-1930 BOLT,14X28.5Bolt,14x28.5; |
92001-1930 |
from US $3.60 |
||
|
92015
|
92015
92015-1758 NUTNut,6mm; |
92015-1758 |
from US $4.28 |
||
|
92027
|
92027
92027-1651 COLLAR,FLANGED,L=12.1Collar,flanged,l=12.1,black; |
92027-1651 |
from US $6.02 |
||
|
92037
|
92037
92037-1905 CLAMPClamp,oil cooler; |
92037-1905 |
from US $3.57 |
||
|
92075
|
92075
92075-1942 DAMPERDamper,oil cooler; |
92075-1942 |
US $3.96 |
||
|
92075A
|
92075A
92075-277 DAMPER RUBBER |
92075-277 |
from US $3.60 |
||
|
92172
|
92172
92172-0003 SCREW,TAPPING,6X12Screw,tapping,6x12; |
92172-0003 |
from US $1.27 |
||
