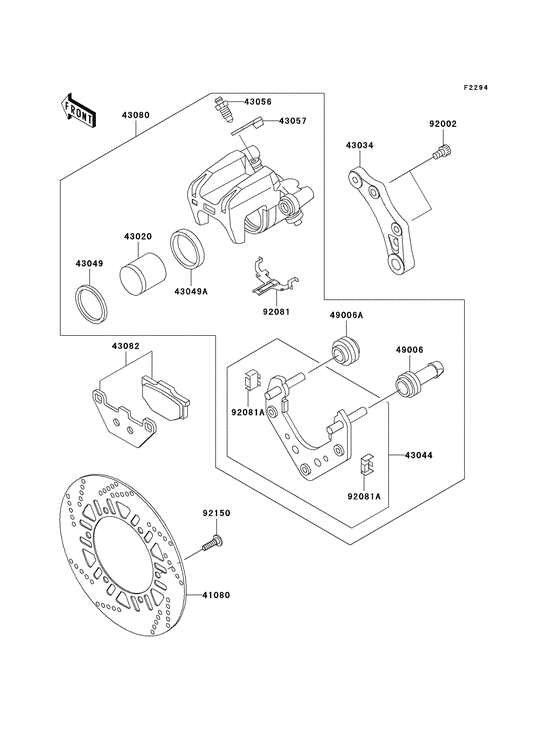

Rear brake Diagram Kawasaki ZG1000 Concours
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- ZG1000 Concours
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-0022-CM DISC,RR,SILVERDisc,rr,silver; |
41080-0022-CM |
from US $332.81 |
||
|
43020
|
43020
43020-1066 PISTON-COMP-BRAKE |
43020-1066 |
from US $75.85 |
||
|
43034
|
43034
43034-1069 HOLDER-BRAKE,RR CALIPHolder-brake,rr caliper; |
43034-1069 |
from US $124.26 |
||
|
43044
|
43044
43044-1036 HOLDER-COMP-CALIPER,FHolder-comp-caliper,fr,rh; |
43044-1036 |
from US $138.53 |
||
|
43049
|
43049
43049-1028 PACKING,PISTONPacking,piston; |
43049-1028 |
from US $9.66 |
||
|
43049A
|
43049A
43049-1098 PACKING,PISTON SEALPacking,piston seal; |
43049-1098 |
from US $8.78 |
||
|
43056
|
43056
43056-1054
Breather-brake
|
43056-1054 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $21.90 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43080
|
43080
43080-5050-GN CALIPER-SUB-ASSY,RR,SCaliper-sub-assy,rr,silver; |
43080-5050-GN |
from US $373.25 |
||
|
43082
|
43082
43082-1062 PAD-ASSY-BRAKE |
43082-1062 |
from US $67.35 |
||
|
49006
|
49006
49006-1094 BOOT,CALIPERBoot,caliper; |
49006-1094 |
from US $8.87 |
||
|
49006A
|
49006A
49006-1095 BOOT,CALIPERBoot,caliper; |
49006-1095 |
from US $4.91 |
||
|
92002
|
92002
92002-1713 BOLT,SOCKET,10X17Bolt,socket,10x17; |
92002-1713 |
from US $3.96 |
||
|
92081
|
92081
92081-1525 SPRING,PADSpring,pad; |
92081-1525 |
from US $13.15 |
||
|
92081A
|
92081A
92081-1661 SPRING,PAD STOPPERSpring,pad stopper; |
92081-1661 |
from US $8.24 |
||
|
92150
|
92150
92150-1771 BOLT,SOCKET,8X30Bolt,socket,8x30; |
92150-1771 |
US $6.05 |
||
| replacement | |||||
|
92150
|
92150
92154-1865 BOLT,SOCKET,8X30Bolt,socket,8x30; |
92154-1865 |
from US $2.85 |
||
