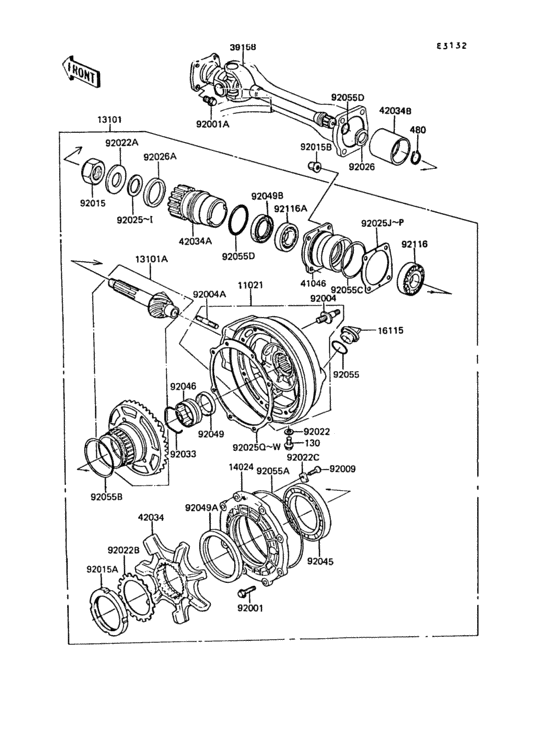

Drive shaft/final gear(1/2) Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Colour
- None (NON)
- Model code
- ZG1300-A5
- Sales region
- Germany
- Engine Capacity
- 1300
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0812 BOLT-FLANGED,8X12 |
130B0812 |
US $0.47 |
||
| replacements | |||||
|
130
|
130
130BA0812 BOLT-FLANGED |
130BA0812 |
from US $1.27 |
||
|
130
|
130
130AA0812 BOLT-FLANGED,8X12 |
130AA0812 |
from US $1.13 |
||
|
480
|
480
480J2600 CIRCLIP 26MM |
480J2600 |
from US $1.58 |
||
|
11021
|
11021
11021-1009 CASE ASSY,FINAL GEAR |
11021-1009 |
US $1,092.17 |
||
|
13101
|
13101
13101-1017 GEAR ASSY, FINAL |
13101-1017 |
US $2,655.40 |
||
|
13101A
|
13101A
13101-5026 GEAR SET,FINAL BEVEL |
13101-5026 |
US $1,506.62 |
||
|
14024
|
14024
14025-1066 COVER,FINAL GEAR CASE |
14025-1066 |
US $126.88 |
||
|
16115
|
16115
16115-1003
CAP
|
16115-1003 |
— | ||
|
39158
|
39158
39158-1004 SHAFT-ASSY-DRIVE |
39158-1004 |
US $614.11 |
||
|
41046
|
41046
41046-1008 HOUSING,BEARING,FINAL |
41046-1008 |
US $178.54 |
||
|
42034
|
42034
42034-1007 COUPLING,REAR HUB |
42034-1007 |
US $263.38 |
||
|
42034A
|
42034A
42034-1023 COUPLING,PROPELLER,LN |
42034-1023 |
US $114.23 |
||
|
42034B
|
42034B
42034-1092 COUPLING,PROPELLER SH |
42034-1092 |
US $82.40 |
||
| replacement | |||||
|
42034B
|
42034B
42034-1178 COUPLING,PROPELLER SH |
42034-1178 |
from US $70.91 |
||
|
92001
|
92001
92001-1095 BOLT,8X28 |
92001-1095 |
from US $3.80 |
||
|
92001A
|
92001A
92001-1139
BOLT,12X15,COUPLING
|
92001-1139 |
— | ||
|
92004
|
92004
92004-1020
STUD
|
92004-1020 |
— | ||
|
92004A
|
92004A
92004-1021 STUD,10X31.5 |
92004-1021 |
US $3.96 |
||
|
92009
|
92009
92009-1041 SCREW,COUNTERSNK,6X16 |
92009-1041 |
from US $2.30 |
||
|
92015
|
92015
92015-1059 NUT,16M/M |
92015-1059 |
US $7.60 |
||
|
92015A
|
92015A
92015-1060 NUT,75M/M,RING GEAR |
92015-1060 |
US $28.69 |
||
|
92015B
|
92015B
92015-1415 NUT,10MM |
92015-1415 |
from US $3.54 |
||
|
92022
|
92022
92022-1086 WASHER |
92022-1086 |
from US $3.20 |
||
|
92022A
|
92022A
92022-1105 WASHER |
92022-1105 |
US $7.60 |
||
|
92022B
|
92022B
92022-1106 WASHER,75M/M,RING GER |
92022-1106 |
US $8.69 |
||
|
92022C
|
92022C
92022-1112 WASHER,BEARING STOPPR |
92022-1112 |
US $3.55 |
||
|
92025
|
92025
92025-1027 SHIM |
92025-1027 |
US $5.06 |
||
|
92025A
|
92025A
92025-1028 SHIM |
92025-1028 |
US $11.96 |
||
|
92025B
|
92025B
92025-1029 SHIM |
92025-1029 |
US $5.98 |
||
|
92025C
|
92025C
92025-1030 SHIM |
92025-1030 |
US $11.96 |
||
|
92025D
|
92025D
92025-1031 SHIM |
92025-1031 |
US $5.98 |
||
|
92025E
|
92025E
92025-1032 SHIM |
92025-1032 |
US $7.64 |
||
|
92025F
|
92025F
92025-1033 SHIM |
92025-1033 |
US $6.30 |
||
|
92025G
|
92025G
92025-1034 SHIM |
92025-1034 |
US $6.30 |
||
|
92025H
|
92025H
92025-1035 SHIM |
92025-1035 |
US $7.48 |
||
|
92025I
|
92025I
92025-1036 SHIM |
92025-1036 |
US $9.14 |
||
|
92025J
|
92025J
92025-1037 SHIM,73X0.6 |
92025-1037 |
US $18.10 |
||
|
92025K
|
92025K
92025-1038 SHIM,73X0.9 |
92025-1038 |
US $22.94 |
||
|
92025L
|
92025L
92025-1039 SHIM,73X1.2 |
92025-1039 |
US $27.86 |
||
|
92025M
|
92025M
92025-1040 SHIM,73X0.1 |
92025-1040 |
US $11.96 |
||
|
92025N
|
92025N
92025-1041 SHIM,73X0.15 |
92025-1041 |
US $11.96 |
||
|
92025O
|
92025O
92025-1042 SHIM,73X0.2 |
92025-1042 |
US $10.12 |
||
|
92025P
|
92025P
92025-1043 SHIM,73X0.3 |
92025-1043 |
US $11.96 |
||
|
92025Q
|
92025Q
92025-1045 SHIM,168X0.6 |
92025-1045 |
US $13.68 |
||
|
92025R
|
92025R
92025-1046 SHIM,168X0.9 |
92025-1046 |
US $11.61 |
||
|
92025S
|
92025S
92025-1047 SHIM,168X1.2 |
92025-1047 |
US $10.64 |
||
|
92025T
|
92025T
92025-1048 SHIM,168X0.1 |
92025-1048 |
US $13.68 |
||
|
92025U
|
92025U
92025-1049 SHIM,168X0.15 |
92025-1049 |
US $15.77 |
||
|
92025V
|
92025V
92025-1050 SHIM,168X0.2 |
92025-1050 |
US $11.61 |
||
|
92025W
|
92025W
92025-1051 SHIM,168X0.3 |
92025-1051 |
US $13.68 |
||
|
92026
|
92026
92026-1085 SPACER,PROPELLER SHAF |
92026-1085 |
from US $5.07 |
||
|
92026A
|
92026A
92026-1102 SPACER,THRUST,26MM |
92026-1102 |
US $10.46 |
||
|
92033
|
92033
92033-1020 RING,SNAP |
92033-1020 |
US $3.15 |
||
|
92045
|
92045
92045-1020 BEARING,BALL,16016 |
92045-1020 |
from US $111.64 |
||
|
92046
|
92046
92046-1020
BEARING
|
92046-1020 |
— | ||
|
92049
|
92049
92049-1025 OIL SEAL |
92049-1025 |
from US $9.19 |
||
|
92049A
|
92049A
92049-1026 OIL SEAL,S-901159HS |
92049-1026 |
from US $22.55 |
||
|
92049B
|
92049B
92049-1082
SEAL-OIL,SC32558
|
92049-1082 |
— | ||
|
92055
|
92055
92055-049 O-RING,31MM |
92055-049 |
from US $3.37 |
||
|
92055A
|
92055A
92055-1030 0 RING,159MM |
92055-1030 |
US $7.83 |
||
|
92055B
|
92055B
92055-1031 0 RING,75MM |
92055-1031 |
US $7.65 |
||
|
92055C
|
92055C
92055-1032
0 RING,67MM
|
92055-1032 |
— | ||
|
92055D
|
92055D
92055-1037
0 RING,I.D=32.7MM
|
92055-1037 |
— | ||
|
92116
|
92116
92116-1002 BEARING,R,4T30305C |
92116-1002 |
US $33.03 |
||
|
92116A
|
92116A
92116-1003 BEARING |
92116-1003 |
from US $20.68 |
||
