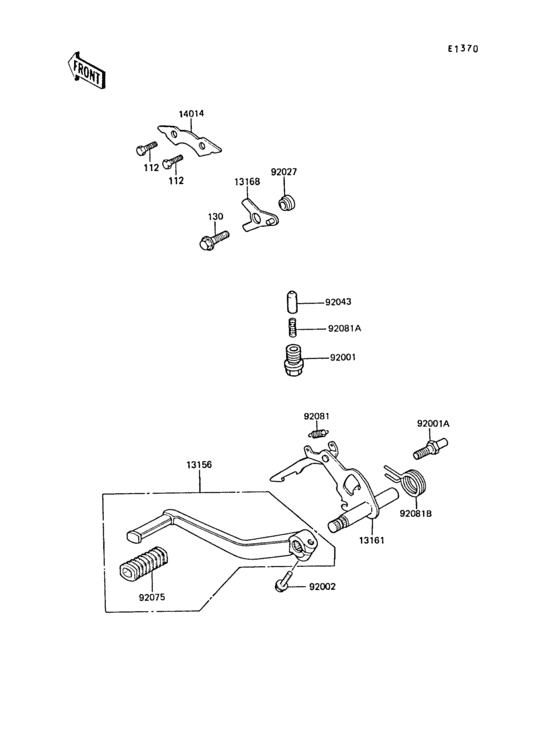

Gear change mechanism Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Colour
- None (NON)
- Model code
- ZG1300-A5
- Sales region
- Germany
- Engine Capacity
- 1300
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0616
BOLT-UPSET,6X16
|
112G0616 |
— | ||
| replacement | |||||
|
112
|
112
112BA0616 BOLT-UPSET,6X16 |
112BA0616 |
from US $0.86 |
||
|
130
|
130
130G0825
BOLT-FLANGED,8X25
|
130G0825 |
— | ||
| replacement | |||||
|
130
|
130
130BA0825 BOLT-FLANGED,8X25 |
130BA0825 |
from US $1.27 |
||
|
13156
|
13156
13156-1038
PEDAL,CHANGE
|
13156-1038 |
— | ||
|
13161
|
13161
13161-1114 LEVER-COMP-CHANGE SHA |
13161-1114 |
US $81.85 |
||
|
13168
|
13168
13168-1034 LEVER,CHANGE |
13168-1034 |
US $8.14 |
||
|
14014
|
14014
14014-1008 PLATE,POSITION,DRUM |
14014-1008 |
US $6.66 |
||
|
92001
|
92001
92001-131 BOLT,10MM |
92001-131 |
US $19.58 |
||
|
92001A
|
92001A
92001-1401
BOLT,EXCLUSIVE MASS P
|
92001-1401 |
— | ||
| replacement | |||||
|
92001A
|
92001A
92001-1455 BOLT,EXCLUSIVE MASS P |
92001-1455 |
from US $2.85 |
||
|
92002
|
92002
92002-1339
BOLT-FLANGED,6X25
|
92002-1339 |
— | ||
| replacement | |||||
|
92002
|
92002
130CA0625 BOLT-FLANGED,6X25 |
130CA0625 |
from US $1.61 |
||
|
92027
|
92027
92027-1139 COLLAR,CHANGE LEVER |
92027-1139 |
US $5.71 |
||
|
92043
|
92043
92043-076 PIN-NEUTRAL POSITION |
92043-076 |
from US $7.44 |
||
|
92075
|
92075
92075-1175
DAMPER RUBR GEAR CHNG
|
92075-1175 |
— | ||
|
92081
|
92081
92081-076 SPRING-CHANGE LEVER |
92081-076 |
from US $4.09 |
||
|
92081A
|
92081A
92081-112 SPRING |
92081-112 |
from US $3.64 |
||
|
92081B
|
92081B
92081-1662 SPRING,CHANGE SHAFT R |
92081-1662 |
US $8.57 |
||
