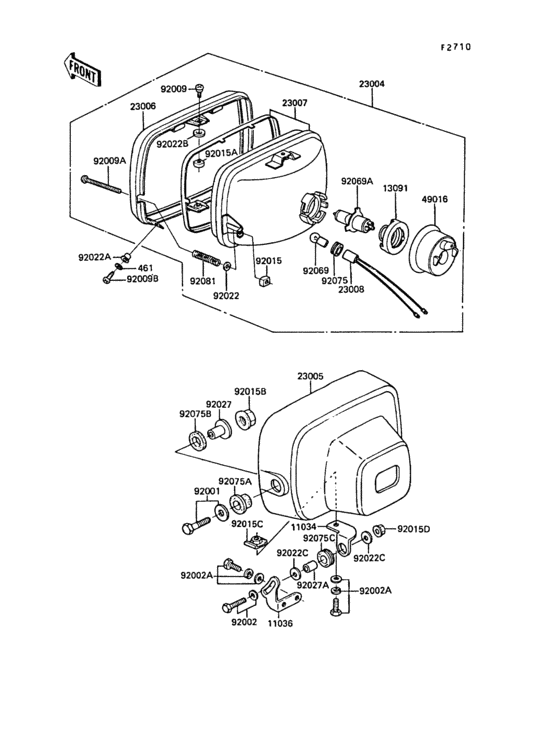

Headlight(s) Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Colour
- None (NON)
- Model code
- ZG1300-A5
- Sales region
- Germany
- Engine Capacity
- 1300
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
461
|
461
461F0500
WASHER-SPRING
|
461F0500 |
— | ||
| replacement | |||||
|
461
|
461
461DA0500 WASHER-SPRING |
461DA0500 |
from US $0.42 |
||
|
11034
|
11034
11034-1289
BRACKET,HEAD LAMP BDY
|
11034-1289 |
— | ||
|
11036
|
11036
11036-1042
BRACKET,HEAD LAMP
|
11036-1042 |
— | ||
|
13091
|
13091
13091-1036 HOLDER,HEAD LAMP SOCK |
13091-1036 |
from US $11.49 |
||
|
23004
|
23004
23004-1072
Lamp-head
|
23004-1072 |
— | ||
|
23006
|
23006
23006-1005
RIM,HEAD LAMP
|
23006-1005 |
— | ||
|
23007
|
23007
23007-1042
Lens-comp,head lamp
|
23007-1042 |
— | ||
|
23008
|
23008
23008038 SOCKET,PARKING LAMP |
23008038 |
US $6.20 |
||
|
49016
|
49016
49016-1023 COVER,HEAD LAMP SOCKE |
49016-1023 |
from US $10.85 |
||
|
92001
|
92001
92001-1910 BOLT,FLANGED,8X35 |
92001-1910 |
US $4.97 |
||
| replacement | |||||
|
92001
|
92001
92154-2923 BOLT,FLANGED,8X35 |
92154-2923 |
from US $3.36 |
||
|
92002
|
92002
92002-1125 BOLT,6X28 |
92002-1125 |
US $3.08 |
||
|
92002A
|
92002A
92002-1257
Bolt,6x16
|
92002-1257 |
— | ||
| replacement | |||||
|
92002A
|
92002A
187AA0616 BOLT-UPSET-WSP |
187AA0616 |
from US $1.20 |
||
|
92009
|
92009
23019023 SCREW-PAN HEAD,5X12 |
23019023 |
from US $3.50 |
||
|
92009A
|
92009A
92009-1047 SCREW,HEAD LAMP LENS |
92009-1047 |
from US $2.72 |
||
|
92009B
|
92009B
92011-024 SCREW,5MM |
92011-024 |
from US $1.26 |
||
| replacement | |||||
|
92009B
|
92009B
92009-1947 SCREW,5MM |
92009-1947 |
from US $1.26 |
||
|
92015
|
92015
23020018 NUT,4MM |
23020018 |
from US $2.87 |
||
|
92015A
|
92015A
23020020 NUT,HEAD LAMP RIM FIT |
23020020 |
US $3.57 |
||
| replacement | |||||
|
92015A
|
92015A
23020-023
NUT,HEAD LAMP RIM FIT
|
23020-023 |
— | ||
|
92015B
|
92015B
92015-1014 NUT,8M/M |
92015-1014 |
from US $0.84 |
||
|
92015C
|
92015C
92015-1050
NUT,HEAD LAMP BODY FT
|
92015-1050 |
— | ||
|
92015D
|
92015D
92015-1193
NUT,FLANGED,6MM
|
92015-1193 |
— | ||
| replacement | |||||
|
92015D
|
92015D
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $2.52 |
||
|
92022
|
92022
23021004 WASHER |
23021004 |
from US $2.72 |
||
|
92022A
|
92022A
23021010 WASHER |
23021010 |
from US $2.72 |
||
|
92022B
|
92022B
23021012 WASHER-PLAIN,5MM |
23021012 |
from US $3.33 |
||
|
92022C
|
92022C
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022C
|
92022C
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.56 |
||
|
92027
|
92027
92027-1131 COLLAR,HEAD LAMP FITT |
92027-1131 |
from US $4.98 |
||
|
92027A
|
92027A
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $3.47 |
||
|
92069
|
92069
92069-071 BULB,12V 4W |
92069-071 |
from US $3.18 |
||
|
92069A
|
92069A
92069-1002
BULB,12V 60/55W,H4
|
92069-1002 |
— | ||
| replacement | |||||
|
92069A
|
92069A
92069-0050 BULB,12V 60/55W,H412V 60/55W,H4 |
92069-0050 |
from US $17.61 |
||
|
92075
|
92075
23066008 DAMPER RUBBER |
23066008 |
from US $2.87 |
||
|
92075A
|
92075A
92075-1109 DAMPER,HEAD LAMP FITT |
92075-1109 |
from US $3.18 |
||
|
92075B
|
92075B
92075-1110 DAMPER,HEAD LAMP FITT |
92075-1110 |
from US $2.72 |
||
|
92075C
|
92075C
92075-209 DAMPER RUBBER,RR FENR |
92075-209 |
from US $2.62 |
||
|
92081
|
92081
92081-1103 SPRING,HEAD LAMP LENS |
92081-1103 |
from US $2.58 |
||
