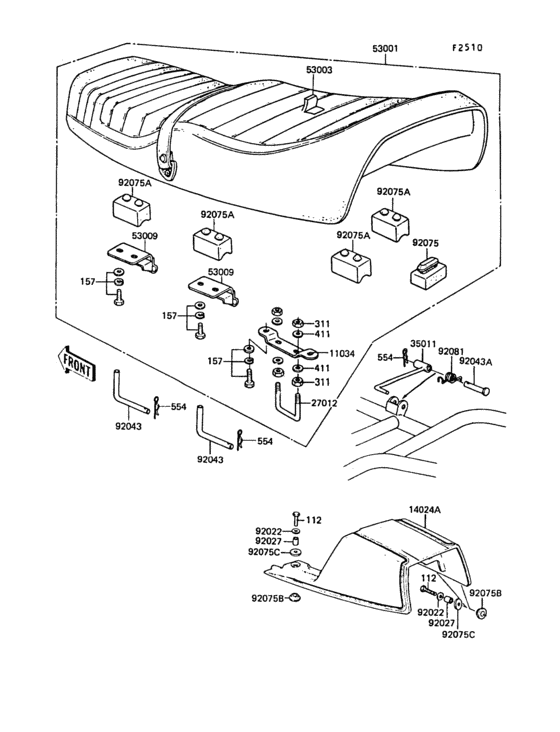

Seat Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Colour
- None (NON)
- Model code
- ZG1300-A5
- Sales region
- Germany
- Engine Capacity
- 1300
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112B0622
BOLT-UPSET
|
112B0622 |
— | ||
| replacement | |||||
|
112
|
112
112BA0622 BOLT-UPSET |
112BA0622 |
from US $1.61 |
||
|
157
|
157
157B0614
Bolt-upset-wsp
|
157B0614 |
— | ||
| replacement | |||||
|
157
|
157
187AA0614 BOLT-UPSET-WSP |
187AA0614 |
from US $1.01 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1 |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
554
|
554
554A0500
PIN-SNAP,5MM
|
554A0500 |
— | ||
| replacement | |||||
|
554
|
554
554DA0500 PIN-SNAP |
554DA0500 |
from US $1.73 |
||
|
11034
|
11034
53058001
BRACKET, SEAT CATCH
|
53058001 |
— | ||
|
27012
|
27012
53056002 CATCH, SEAT |
53056002 |
from US $11.23 |
||
|
35011
|
35011
35011-1018
STAY,SEAT STAND
|
35011-1018 |
— | ||
|
53001
|
53001
53001-1358
DESC-SEAT-ASSY,DUAL
|
53001-1358 |
— | ||
|
53003
|
53003
53003-1022
LEATHER,SEAT
|
53003-1022 |
— | ||
|
53009
|
53009
53009-1011
HINGE,SEAT
|
53009-1011 |
— | ||
|
92022
|
92022
92022-228 WASHER,PLAIN,7MM |
92022-228 |
from US $2.53 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $4.80 |
||
|
92043
|
92043
92043-1021
PIN,SEAT PIVOT
|
92043-1021 |
— | ||
|
92043A
|
92043A
92043-1045 PIN,SEAT STAND |
92043-1045 |
US $2.41 |
||
|
92075
|
92075
92075-099 DAMPER RUBBER |
92075-099 |
from US $3.33 |
||
|
92075A
|
92075A
92075-139 DAMPER RUBBER,SEAT |
92075-139 |
from US $5.28 |
||
|
92075B
|
92075B
92075-174 RUBBER,FENDER COVER |
92075-174 |
from US $3.48 |
||
|
92075C
|
92075C
92075-175 DAMPER RUBBER |
92075-175 |
from US $3.33 |
||
|
92081
|
92081
92081-1100 SPRING,SEAT STAND |
92081-1100 |
US $6.71 |
||
