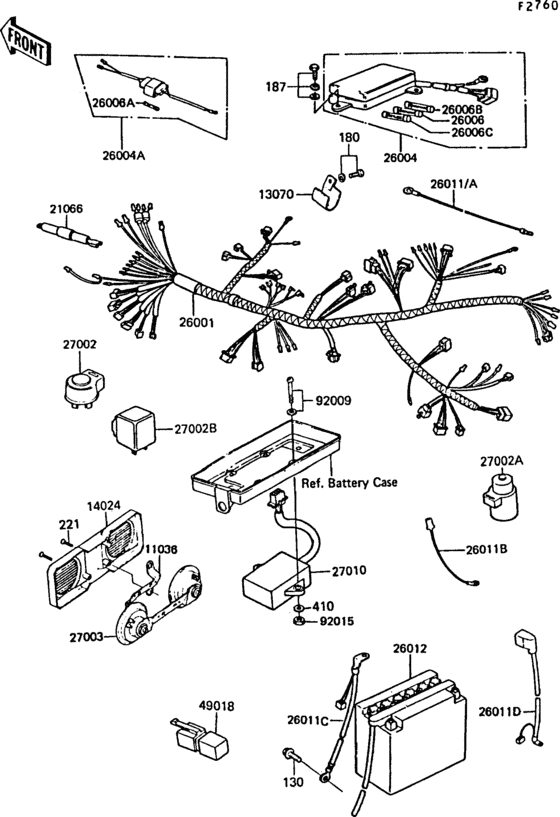

Chassis electrical equipment Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
180
|
180
180AA0612 BOLT-UPSET-WS |
180AA0612 |
from US $1.24 |
||
|
187
|
187
187AA0612 BOLT-UPSET-WSP |
187AA0612 |
from US $1.11 |
||
|
221
|
221
221C0430
SCREW-CSK
|
221C0430 |
— | ||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
11036
|
11036
11036-1028 BRACKET,HORN COVER |
11036-1028 |
US $16.42 |
||
|
13070
|
13070
13070-1022
GUIDE,MAIN HARNESS
|
13070-1022 |
— | ||
|
14024
|
14024
14025-1310
COVER,HORN
|
14025-1310 |
— | ||
|
21066
|
21066
21066-026
REGULATOR
|
21066-026 |
— | ||
|
26001
|
26001
26001-1589
Harness,main
|
26001-1589 |
— | ||
|
26004
|
26004
26004-1009
FUSE ASSY
|
26004-1009 |
— | ||
|
26004A
|
26004A
26004-1018 FUSE-ASSY |
26004-1018 |
US $48.85 |
||
|
26006
|
26006
26006003 FUSE,GLASS TUBE,6.4X2 |
26006003 |
from US $3.48 |
||
|
26006A
|
26006A
26006-1002 FUSE,GLASS TUBE,6.4X3 |
26006-1002 |
from US $3.33 |
||
|
26006B
|
26006B
26006-1004 FUSE,2A,L=25M/M |
26006-1004 |
US $3.47 |
||
|
26006C
|
26006C
26006-1005 FUSE,GLASS TUBE,6.4X2 |
26006-1005 |
from US $3.57 |
||
|
26011
|
26011
26011063 LEAD WIRE,SIGNAL LAMP |
26011063 |
from US $6.02 |
||
|
26011A
|
26011A
26011095 WIRE,LEAD |
26011095 |
from US $9.03 |
||
|
26011B
|
26011B
26011-1100
WIRE-LEAD,ACCESSORY G
|
26011-1100 |
— | ||
|
26011C
|
26011C
26011-1265
Wire-lead,battery(-)
|
26011-1265 |
— | ||
|
26011D
|
26011D
26011-1275
Wire-lead,battery(+)
|
26011-1275 |
— | ||
|
26012
|
26012
26012-1339
YUA BAT Y50-N18L-A
|
26012-1339 |
— | ||
| replacement | |||||
|
26012
|
26012
26012-1012
YUA BAT Y50-N18L-A
|
26012-1012 |
— | ||
|
27002
|
27002
27002-0003 RELAY-ASSY |
27002-0003 |
from US $68.59 |
||
|
27002A
|
27002A
27002-1051 RELAY-ASSY |
27002-1051 |
from US $40.09 |
||
|
27003
|
27003
27003-1037
HORN
|
27003-1037 |
— | ||
|
27010
|
27010
27010-1077 SWITCH,TURN SIGNAL OP |
27010-1077 |
US $141.50 |
||
|
49018
|
49018
49018-0005 DIODE |
49018-0005 |
from US $29.17 |
||
|
92009
|
92009
92009-1274
Screw,6x35
|
92009-1274 |
— | ||
|
92015
|
92015
92017-014 NUT,LOCK 6MM |
92017-014 |
from US $4.95 |
||
