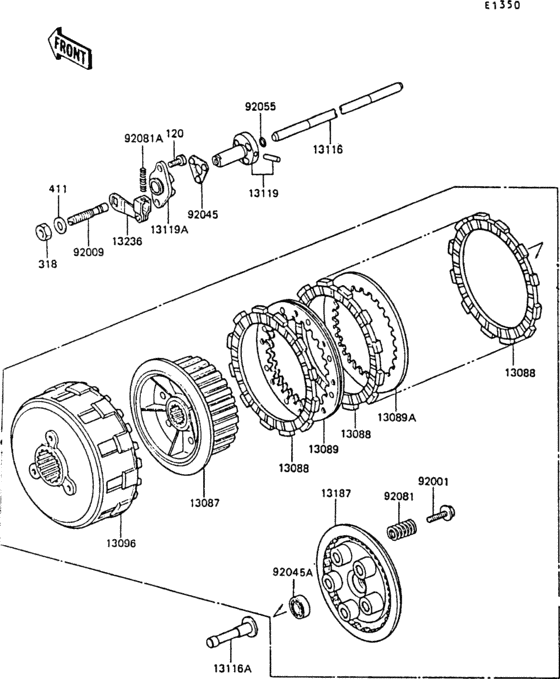

Clutch Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
92150-1666 BOLT,SOCKET,6X14 |
92150-1666 |
US $2.79 |
||
| replacement | |||||
|
120
|
120
120CA0614 BOLT,SOCKET,6X14 |
120CA0614 |
from US $2.69 |
||
|
318
|
318
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
411
|
411
411AA0800 WASHER-PLAIN |
411AA0800 |
from US $0.72 |
||
|
13087
|
13087
13087-1055 Hub-clutch |
13087-1055 |
US $170.93 |
||
|
13088
|
13088
13088-1018 PLATE-FRICTION |
13088-1018 |
from US $20.21 |
||
|
13089
|
13089
13089-1056
PLATE-CLUTCH
|
13089-1056 |
— | ||
|
13089A
|
13089A
13089-1057
PLATE-CLUTCH,STEEL
|
13089-1057 |
— | ||
|
13096
|
13096
13096-1059 HOUSING-CLUTCH |
13096-1059 |
US $340.83 |
||
|
13116
|
13116
13116-1050
ROD-PUSH,CLUTCH
|
13116-1050 |
— | ||
|
13116A
|
13116A
13116-1108 ROD-PUSH |
13116-1108 |
US $20.41 |
||
|
13119
|
13119
13119-1007 CAM,CLUTCH RELEASE A |
13119-1007 |
US $52.33 |
||
|
13119A
|
13119A
13119-1008 CAM,CLUTCH RELEASE B |
13119-1008 |
US $42.23 |
||
|
13187
|
13187
13187-1015 PLATE-CLUTCH OPERATIN |
13187-1015 |
US $67.54 |
||
|
13236
|
13236
13236-1055 LEVER-COMP,CLUTCH REL |
13236-1055 |
US $11.48 |
||
|
92001
|
92001
92001-1066 BOLT,CLUTCH SPR FITT |
92001-1066 |
from US $4.25 |
||
|
92009
|
92009
92009-1052 SCREW,CLUTCH RELEASE |
92009-1052 |
US $13.27 |
||
|
92045
|
92045
92045-1023 BALL,ASSY,CLUTCH RELS |
92045-1023 |
US $7.65 |
||
|
92045A
|
92045A
92045-1235 BEARING-BALL (12X28X8) |
92045-1235 |
from US $16.42 |
||
|
92055
|
92055
670B1505 O RING,5MM |
670B1505 |
from US $2.53 |
||
|
92081
|
92081
92081-1033 SPRING,CLUTCH |
92081-1033 |
from US $6.65 |
||
|
92081A
|
92081A
92081-1532 SPRING,COIL,9.7X95 |
92081-1532 |
US $3.82 |
||
