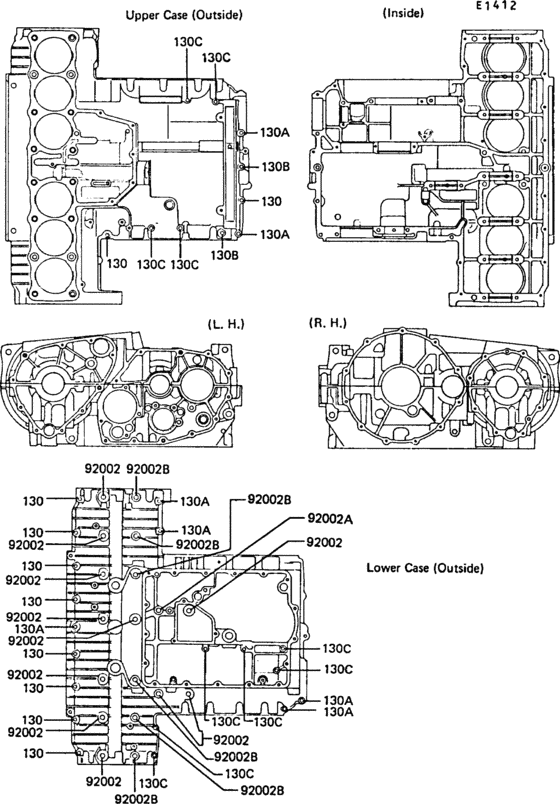

Crankcase bolt pattern Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BD0640 BOLT-FLANGED |
130BD0640 |
from US $1.40 |
||
|
130A
|
130A
130CD0650 BOLT-FLANGED |
130CD0650 |
from US $1.27 |
||
|
130B
|
130B
130CD0665 BOLT-FLANGED,6X65 |
130CD0665 |
from US $1.56 |
||
|
130C
|
130C
130Y0685
BOLT-FLANGED
|
130Y0685 |
— | ||
|
92002
|
92002
92002-1077 BOLT,8X95 |
92002-1077 |
from US $7.44 |
||
|
92002A
|
92002A
92002-1272 BOLT,8X130 |
92002-1272 |
US $8.10 |
||
|
92002B
|
92002B
92002-1274 BOLT,8X105 |
92002-1274 |
US $7.65 |
