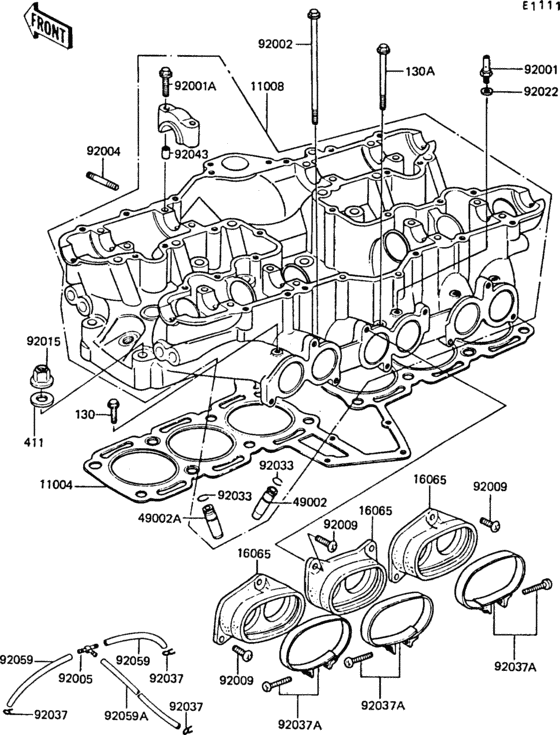

Cylinder head Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130N0608
BOLT,FLANGED,6X18
|
130N0608 |
— | ||
|
130A
|
130A
130CD0665 BOLT-FLANGED,6X65 |
130CD0665 |
from US $1.56 |
||
|
411
|
411
411AA1000 WASHER-PLAIN,10MM |
411AA1000 |
from US $0.72 |
||
|
11004
|
11004
11004-1291 GASKET-HEAD CYLINDER |
11004-1291 |
from US $246.34 |
||
|
11008
|
11008
11008-1072
HEAD-COMP-CYLINDER
|
11008-1072 |
— | ||
|
16065
|
16065
16065-1016
HOLDER,CARBURETOR
|
16065-1016 |
— | ||
|
49002
|
49002
12013-009 GUIDE,INLET VALVE |
12013-009 |
from US $18.25 |
||
|
49002A
|
49002A
49002-1002 GUIDE,EXHAUST VALVE |
49002-1002 |
from US $16.52 |
||
|
92001
|
92001
92001-1143
BOLT,VACUUM
|
92001-1143 |
— | ||
|
92001A
|
92001A
92003-092 BOLT,HEX HEAD,6X45 |
92003-092 |
from US $3.57 |
||
|
92002
|
92002
92002-1273 BOLT,6X161 |
92002-1273 |
US $6.88 |
||
|
92004
|
92004
92004-1128 STUD,6X30 |
92004-1128 |
from US $3.48 |
||
|
92005
|
92005
92005-1017 FITTING,TUBE |
92005-1017 |
from US $7.44 |
||
|
92009
|
92009
92009-1334 SCREW,6X16 |
92009-1334 |
US $2.21 |
||
|
92015
|
92015
92015-076 NUT,CYLINDER HEAD |
92015-076 |
from US $10.27 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92033
|
92033
92036-023 CIRCLIP-VALVE |
92036-023 |
from US $0.82 |
||
|
92037
|
92037
92037-072 CLAMP-PIPE |
92037-072 |
from US $4.28 |
||
|
92037A
|
92037A
92037-1119
CLAMP,CARBURETOR HLDR
|
92037-1119 |
— | ||
|
92043
|
92043
92042-007 PIN-DOWEL |
92042-007 |
from US $4.44 |
||
|
92059
|
92059
92059-1916 TUBE,4X9X935,WHITE STRIPE |
92059-1916 |
from US $11.98 |
||
|
92059A
|
92059A
92059-1846 TUBE (4x9x650) |
92059-1846 |
from US $6.06 |
