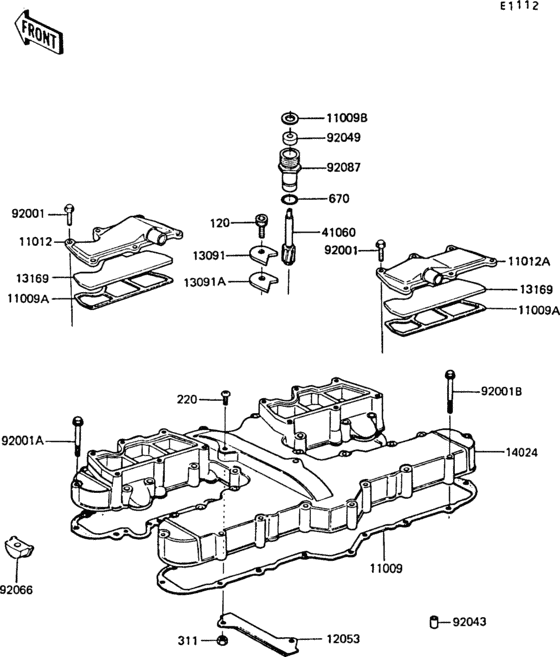

Cylinder head cover Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
92150-1666 BOLT,SOCKET,6X14 |
92150-1666 |
US $2.79 |
||
| replacement | |||||
|
120
|
120
120CA0614 BOLT,SOCKET,6X14 |
120CA0614 |
from US $2.69 |
||
|
220
|
220
220AA0616 SCREW-PAN-CROS,6X16 |
220AA0616 |
from US $0.95 |
||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
670
|
670
670D1510 0 RING,10MM |
670D1510 |
from US $2.85 |
||
|
11009
|
11009
11060-1471 GASKET,CYL. HEAD CUR. |
11060-1471 |
US $145.46 |
||
|
11009A
|
11009A
11060-1385
No longer available
|
11060-1385 |
— | ||
|
11009B
|
11009B
92065-103 GASKET,TACHOMETER GER |
92065-103 |
from US $3.17 |
||
|
11012
|
11012
11012-1107
Cap,l.h
|
11012-1107 |
— | ||
|
11012A
|
11012A
11012-1108
Cap,r.h
|
11012-1108 |
— | ||
|
12053
|
12053
12053-1026 GUIDE,CHAIN,CAM |
12053-1026 |
US $28.08 |
||
|
13091
|
13091
13091-1008 HOLDER,TACHOMETER2.3T |
13091-1008 |
from US $2.88 |
||
|
13091A
|
13091A
13091-1009 HOLDER,TACHOMETR,3.2T |
13091-1009 |
from US $2.88 |
||
|
13169
|
13169
13169-1221
Plate
|
13169-1221 |
— | ||
|
14024
|
14024
14025-1312
Cover,cylinder head
|
14025-1312 |
— | ||
|
41060
|
41060
13223011 GEAR,TACHOMETER,10T |
13223011 |
from US $46.66 |
||
|
92001
|
92001
92001-1100 BOLT,HEX HEAD,6X20 |
92001-1100 |
from US $3.48 |
||
|
92001A
|
92001A
92001-1192
BOLT,HEX HEAD,6X52
|
92001-1192 |
— | ||
|
92001B
|
92001B
92003-092 BOLT,HEX HEAD,6X45 |
92003-092 |
from US $3.57 |
||
|
92043
|
92043
92042-007 PIN-DOWEL |
92042-007 |
from US $4.44 |
||
|
92049
|
92049
92050-075 OIL SEAL |
92050-075 |
from US $7.13 |
||
|
92066
|
92066
92066-1030 PLUG,CAMSHAFT |
92066-1030 |
from US $7.78 |
||
|
92087
|
92087
92087-010 GUIDE,TACHOMETER GEAR |
92087-010 |
from US $13.68 |
||
