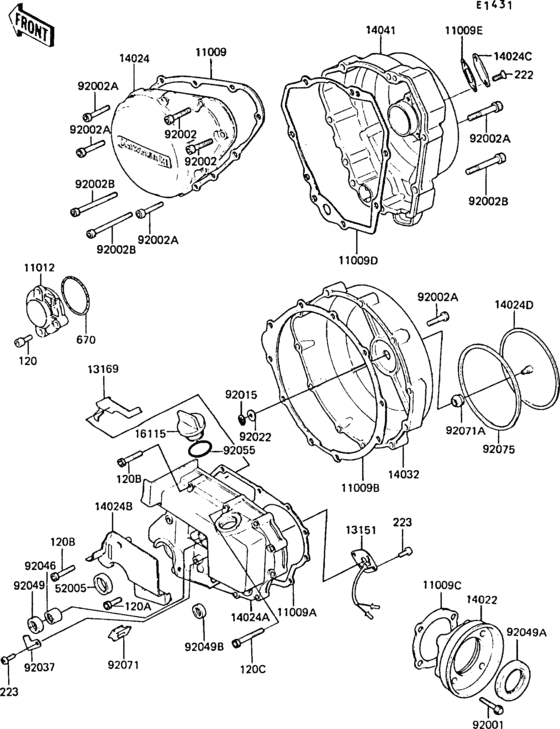

Engine cover(s)(1/2) Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CD0614
BOLT-SOCKET
|
120CD0614 |
— | ||
|
120A
|
120A
120CD0616 BOLT-SOCKET |
120CD0616 |
from US $1.11 |
||
|
120B
|
120B
120CD0635 BOLT-SOCKET |
120CD0635 |
from US $1.24 |
||
|
120C
|
120C
120Z0645 BOLT-SOCKET |
120Z0645 |
US $3.35 |
||
|
222
|
222
222E0510
SCREW OVL CNTSNK 5X10
|
222E0510 |
— | ||
|
223
|
223
223AA0612 SCREW-PAN-WS-CROS |
223AA0612 |
from US $0.65 |
||
|
670
|
670
670B3045
0 RING,45M/M
|
670B3045 |
— | ||
|
11009
|
11009
11060-1417
GASKET,ENGINE COVER,L
|
11060-1417 |
— | ||
|
11009A
|
11009A
11060-1418 GASKET,MISSION COVER |
11060-1418 |
US $27.27 |
||
|
11009B
|
11009B
11060-1419 GASKET,CLUTCH COVER |
11060-1419 |
US $24.97 |
||
|
11009C
|
11009C
11009-1159
GASKET,BEARING CAP
|
11009-1159 |
— | ||
|
11009D
|
11009D
11060-1602 GASKET,GENERATOR |
11060-1602 |
US $13.79 |
||
|
11009E
|
11009E
11060-1614 GASKET,OIL INSPECTION |
11060-1614 |
US $10.87 |
||
|
11012
|
11012
11012-1060 CAP,TIMING SPROCKET |
11012-1060 |
US $26.10 |
||
|
13151
|
13151
13151-1013
SWITCH-COMP
|
13151-1013 |
— | ||
|
13169
|
13169
13169-1131
PLATE,BAFFLE,BREATHER
|
13169-1131 |
— | ||
|
14022
|
14022
14022-1005 CAP,BEARING,OUT SHAFT |
14022-1005 |
US $31.88 |
||
|
14024
|
14024
14025-1501
COVER,L.H ENGINE
|
14025-1501 |
— | ||
|
14024A
|
14024A
14025-1617 COVER,TRANSMISSION,SI |
14025-1617 |
US $205.60 |
||
|
14024B
|
14024B
14025-1618
COVER,RELEASE
|
14025-1618 |
— | ||
|
14024C
|
14024C
14025-1704
COVER,OIL INSPECTION
|
14025-1704 |
— | ||
|
14024D
|
14024D
14025-1814 COVER,CLUTCH COVER |
14025-1814 |
US $42.88 |
||
|
14032
|
14032
14032-1111 COVER-CLUTCH |
14032-1111 |
US $261.29 |
||
|
14041
|
14041
14041-1024
COVER,COMP,GENERATOR
|
14041-1024 |
— | ||
|
16115
|
16115
16115-1009 CAP-OIL FILLER |
16115-1009 |
from US $10.14 |
||
|
52005
|
52005
52005-0069 GAUGE,OIL LEVEL |
52005-0069 |
from US $29.71 |
||
|
92001
|
92001
92003-202 BOLT |
92003-202 |
from US $3.27 |
||
|
92002
|
92002
92002-1281
Bolt,6x25
|
92002-1281 |
— | ||
|
92002A
|
92002A
92002-1282 BOLT,6X35 |
92002-1282 |
US $3.47 |
||
|
92002B
|
92002B
92002-1283 BOLT,6X50 |
92002-1283 |
US $3.47 |
||
|
92015
|
92015
92018-004 NUT,LOCK,5MM |
92018-004 |
from US $3.17 |
||
|
92022
|
92022
92022-1405 WASHER,5.5X20X1.2 |
92022-1405 |
from US $2.69 |
||
|
92037
|
92037
92037-1152
CLAMP,CABLE
|
92037-1152 |
— | ||
|
92046
|
92046
92046-0043 BEARING-NEEDLE,HK1412 |
92046-0043 |
from US $13.94 |
||
|
92049
|
92049
92049-1037 OIL SEAL,TC14244.8 |
92049-1037 |
US $10.18 |
||
|
92049A
|
92049A
92049-1038 OIL SEAL,TC35527 |
92049-1038 |
from US $12.20 |
||
|
92049B
|
92049B
92051-005 OIL SEAL,TB13225.5 |
92051-005 |
from US $6.57 |
||
|
92055
|
92055
92055-049 O-RING,31MM |
92055-049 |
from US $3.37 |
||
|
92071
|
92071
92071-1051 GROMMET |
92071-1051 |
US $5.67 |
||
|
92071A
|
92071A
92071-1108 GROMMET,CLUTCH COVER |
92071-1108 |
from US $3.27 |
||
|
92075
|
92075
92075-1594 DAMPER,CLUTCH COVER |
92075-1594 |
from US $15.09 |
