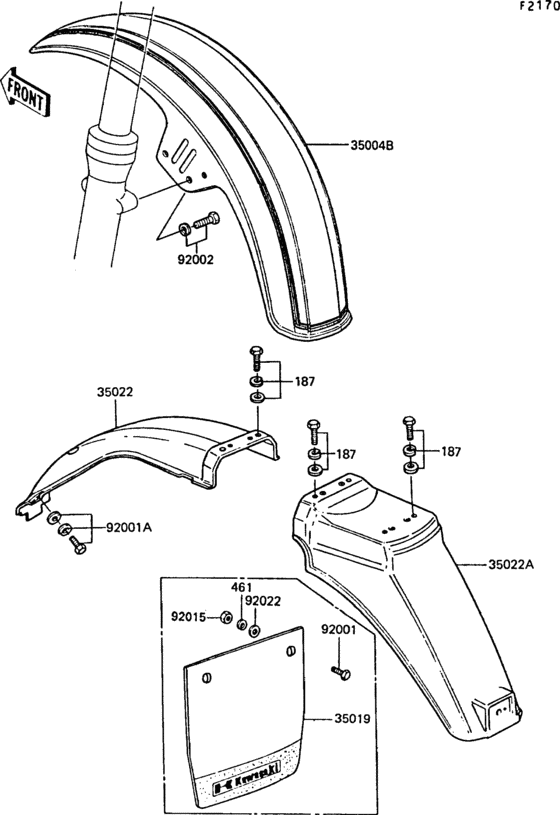

Fenders Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187AA0618
BOLT-UPSET-WSP
|
187AA0618 |
— | ||
|
461
|
461
461DA0500 WASHER-SPRING |
461DA0500 |
from US $0.48 |
||
|
35004B
|
35004B
35004-5010-H8 FENDER-FRONT,EBONY |
35004-5010-H8 |
US $323.84 |
||
|
35019
|
35019
35019-1005 FLAP, FENDER |
35019-1005 |
US $15.87 |
||
|
35022
|
35022
35022-1019
FENDER-RR
|
35022-1019 |
— | ||
|
35022A
|
35022A
35022-1028-6Z
Fender,rear
|
35022-1028-6Z |
— | ||
|
92001
|
92001
92009-5002 SCREW |
92009-5002 |
US $3.55 |
||
|
92001A
|
92001A
92001-1763 BOLT,W/SP,6X16 |
92001-1763 |
from US $3.01 |
||
|
92002
|
92002
92002-1200 BOLT,FLANGED,8X16 |
92002-1200 |
from US $3.17 |
||
|
92015
|
92015
92015-1446 NUT,5MM |
92015-1446 |
US $1.66 |
||
|
92022
|
92022
92200-0284 WASHER,5.5X20X1.2 |
92200-0284 |
from US $0.95 |
