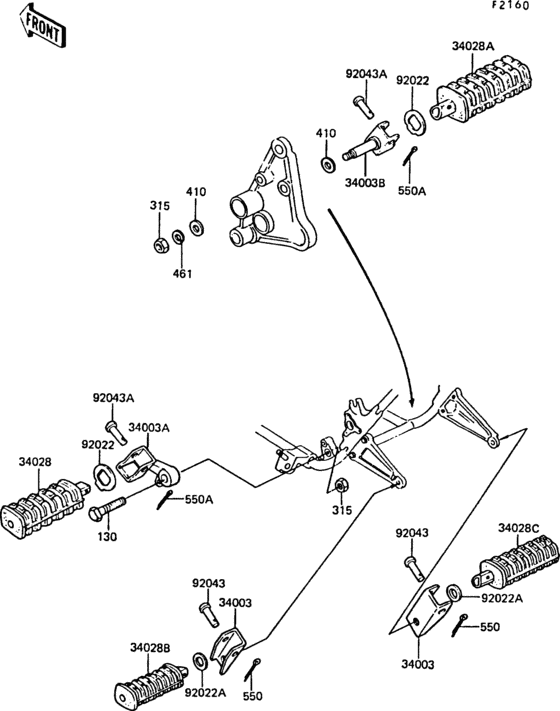

Footrests Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J1235 BOLT-FLANGED |
130J1235 |
US $4.32 |
||
|
315
|
315
315AA1200 NUT-HEX-FINE |
315AA1200 |
from US $1.09 |
||
|
410
|
410
410AA1200 WASHER-PLAIN-SMALL,12 |
410AA1200 |
from US $0.95 |
||
|
461
|
461
461DA1200 WASHER-SPRING,12MM |
461DA1200 |
from US $0.86 |
||
|
550
|
550
550AA2012 PIN,COTTER,2.0X12 |
550AA2012 |
from US $0.94 |
||
|
550A
|
550A
550AA2515 PIN-COTTER,2.5X15 |
550AA2515 |
from US $0.78 |
||
|
34003
|
34003
34003-1025 HOLDER,REAR FOOTREST |
34003-1025 |
from US $23.94 |
||
|
34003A
|
34003A
34003-1029 HOLDER,L.H,FOOTREST |
34003-1029 |
US $66.76 |
||
|
34003B
|
34003B
34003-1030 HOLDER,R.H,FOOTREST |
34003-1030 |
US $66.76 |
||
|
34028
|
34028
34028-1015 STEP,FRONT FOOTREST |
34028-1015 |
US $63.32 |
||
|
34028A
|
34028A
34028-1016 STEP,FRONT FOOTREST |
34028-1016 |
US $63.32 |
||
|
34028B
|
34028B
34028-1128 STEP,RR,LH |
34028-1128 |
US $23.45 |
||
|
34028C
|
34028C
34028-1129 STEP,RR,RH |
34028-1129 |
US $26.19 |
||
|
92022
|
92022
92022-1096 WASHER,LOCK |
92022-1096 |
US $4.25 |
||
|
92022A
|
92022A
92022-1514 WASHER,STEP FITTING |
92022-1514 |
from US $3.08 |
||
|
92043
|
92043
92043-1464 PIN |
92043-1464 |
from US $5.39 |
||
|
92043A
|
92043A
92043-080 PIN-FOOTREST BAR FIT |
92043-080 |
from US $3.33 |
