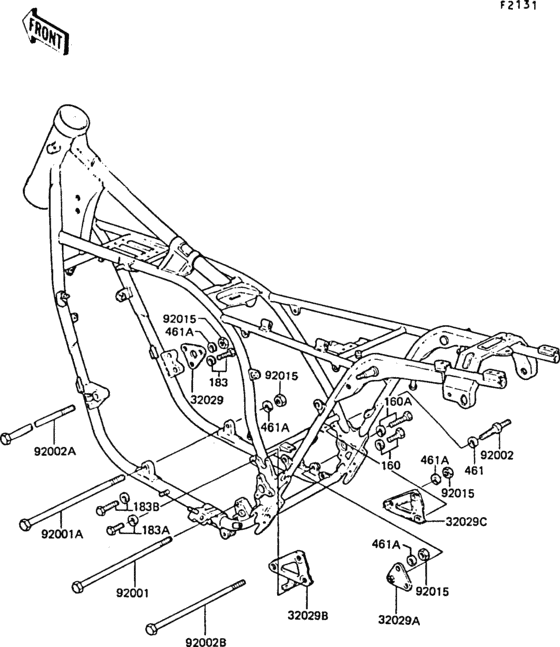

Frame fittings Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
160
|
160
160G1016
Bolt-fine-ws
|
160G1016 |
— | ||
|
160A
|
160A
160G1040
Bolt-fine-ws
|
160G1040 |
— | ||
|
183
|
183
183BB0822 BOLT-UPSET-WS-SMALL |
183BB0822 |
US $4.12 |
||
|
183A
|
183A
183BB0825 BOLT-UPSET-WS-SMALL |
183BB0825 |
US $1.40 |
||
|
183B
|
183B
183J0840
Bolt-upset-ws-small
|
183J0840 |
— | ||
|
461
|
461
461DB0800 WASHER-SPRING,8MM,BLA |
461DB0800 |
from US $0.78 |
||
|
461A
|
461A
461DB1000 WASHER-SPRING,10MM |
461DB1000 |
from US $1.09 |
||
|
32029
|
32029
32029-1061 BRACKET,ENGINE,FRONT |
32029-1061 |
US $7.74 |
||
|
32029A
|
32029A
32029-1062 BRACKET,ENGINE,REAR |
32029-1062 |
US $11.02 |
||
|
32029B
|
32029B
32029-1063 BRACKET,ENGINE,REAR |
32029-1063 |
US $30.65 |
||
|
32029C
|
32029C
32029-1064 BRACKET,ENGINE,REAR |
32029-1064 |
US $26.24 |
||
|
92001
|
92001
92001-1992 BOLT,FLANGED,10X305 |
92001-1992 |
US $19.89 |
||
|
92001A
|
92001A
92001-1993 BOLT,FLANGED,10X315 |
92001-1993 |
US $20.41 |
||
|
92002
|
92002
92002-1205
Bolt,engine bracket,8
|
92002-1205 |
— | ||
|
92002A
|
92002A
92002-1207
Bolt,10x370
|
92002-1207 |
— | ||
|
92002B
|
92002B
92002-1458
Bolt,flanged,10x287
|
92002-1458 |
— | ||
|
92015
|
92015
92015-1189 NUT,LOCK,10MM,BLACK |
92015-1189 |
from US $3.96 |
