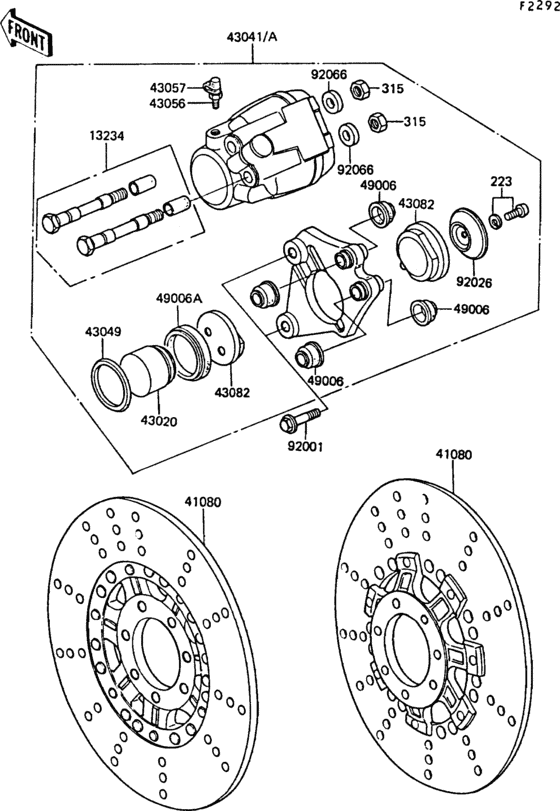

Front brake Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223AA0612 SCREW-PAN-WS-CROS |
223AA0612 |
from US $0.65 |
||
|
315
|
315
315AA1000 NUT-HEX-FINE |
315AA1000 |
from US $0.92 |
||
|
13234
|
13234
13234-1002
SHAFT ASSY,CALIPER
|
13234-1002 |
— | ||
|
41080
|
41080
41080-1123
DISC,FR,SILVER
|
41080-1123 |
— | ||
|
43020
|
43020
43020-1012
PISTON,BRAKE,42M/M
|
43020-1012 |
— | ||
|
43041
|
43041
43041-1156
Caliper-assy,fr,lh
|
43041-1156 |
— | ||
|
43041A
|
43041A
43041-1157
Caliper-assy,fr,rh
|
43041-1157 |
— | ||
|
43049
|
43049
43049-1098 PACKING,PISTON SEAL |
43049-1098 |
from US $8.78 |
||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43082
|
43082
43082-1058
Pad-assy-brake
|
43082-1058 |
— | ||
|
49006
|
49006
43052005 DUST SHILD,SHAFT |
43052005 |
from US $7.06 |
||
|
49006A
|
49006A
43054003 DUST SEALD,RUBBER |
43054003 |
from US $13.45 |
||
|
92001
|
92001
92001-1299 BOLT,HEX HEAD,10X44 |
92001-1299 |
US $5.39 |
||
|
92026
|
92026
43040004
SPACER
|
43040004 |
— | ||
|
92066
|
92066
43088002
PLUG
|
43088002 |
— |
