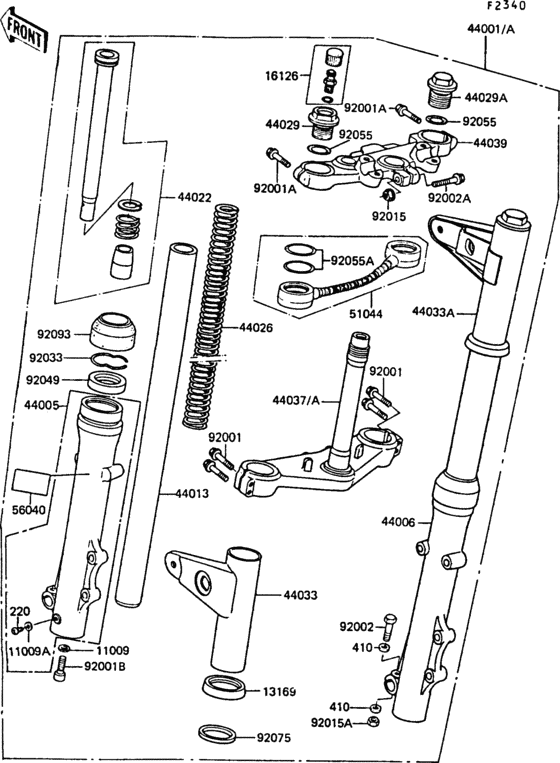

Front fork Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220E0408 SCREW PAN HEAD 4X8 |
220E0408 |
from US $0.95 |
||
|
410
|
410
410S0800 WASHER |
410S0800 |
from US $0.95 |
||
|
11009
|
11009
11009-1127 GASKET,FORK CYLINDER |
11009-1127 |
from US $3.80 |
||
|
11009A
|
11009A
44045002 GASKET FORK DRAIN PLG |
44045002 |
from US $3.96 |
||
|
13169
|
13169
13169-1163
GUIDE,FORK COVER,LOWE
|
13169-1163 |
— | ||
|
16126
|
16126
16126-1052 VALVE AIR |
16126-1052 |
from US $23.34 |
||
|
44001
|
44001
44001-1536
Fork-front
|
44001-1536 |
— | ||
|
44005
|
44005
44005-1043 TUBE,LH,FORK OUTER |
44005-1043 |
US $479.90 |
||
|
44006
|
44006
44006-1043 TUBE,RH,FORK OUTER |
44006-1043 |
US $406.44 |
||
|
44013
|
44013
44013-1214
Pipe-fork inner
|
44013-1214 |
— | ||
|
44022
|
44022
44022-1163
Cylinder-fork
|
44022-1163 |
— | ||
|
44026
|
44026
44026-1269
Spring-front fork
|
44026-1269 |
— | ||
|
44029
|
44029
44029-1047
Seat-fork spring,lh
|
44029-1047 |
— | ||
|
44029A
|
44029A
44029-1048
Seat-fork spring,rh
|
44029-1048 |
— | ||
|
44033
|
44033
44033-1164
Cover-fork,lh
|
44033-1164 |
— | ||
|
44033A
|
44033A
44033-1165
Cover-fork,rh
|
44033-1165 |
— | ||
|
44037
|
44037
44037-1165
Holder-fork under
|
44037-1165 |
— | ||
|
44039
|
44039
44039-1013 HEAD,STEERING STEM |
44039-1013 |
US $311.65 |
||
|
51044
|
51044
51044-1025
TUBE-ASSY,FRONT FORK
|
51044-1025 |
— | ||
|
56040
|
56040
56040-1117
LABEL-WARNING,SHOCKAB
|
56040-1117 |
— | ||
|
92001
|
92001
92001-1188
BOLT,8X40
|
92001-1188 |
— | ||
|
92001A
|
92001A
92001-1189
BOLT,10X45
|
92001-1189 |
— | ||
|
92001B
|
92001B
92001-1309 BOLT,FORK CYLINDER |
92001-1309 |
from US $4.59 |
||
|
92002
|
92002
92001-1064
BOLT,HEX HEAD,8X55
|
92001-1064 |
— | ||
|
92002A
|
92002A
92002-1161
Bolt,flanged,8x55
|
92002-1161 |
— | ||
|
92015
|
92015
92015-1485 NUT,FLANGED,8MM |
92015-1485 |
from US $3.17 |
||
|
92015A
|
92015A
92015-1390 NUT,LOCK,8MM |
92015-1390 |
from US $3.27 |
||
|
92033
|
92033
92033-1036 CIRCLIP |
92033-1036 |
from US $3.80 |
||
|
92049
|
92049
92049-1356 SEAL-OIL |
92049-1356 |
from US $15.05 |
||
|
92055
|
92055
92055-1050 0 RING,FORK TOP CAP |
92055-1050 |
from US $3.48 |
||
|
92055A
|
92055A
92055-1106
O RING,HOSE ASSY
|
92055-1106 |
— | ||
|
92075
|
92075
92075-1155
DAMPER,FORK COVER
|
92075-1155 |
— | ||
|
92093
|
92093
92093-1023
DUST SHIELD,FORK
|
92093-1023 |
— |
