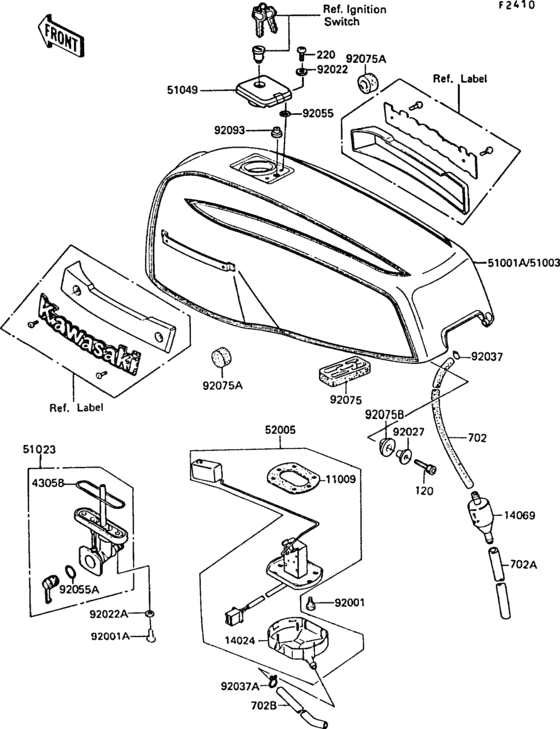

Fuel tank Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0830 BOLT-SOCKET,8X30 |
120CA0830 |
from US $1.61 |
||
|
220
|
220
220AA0510 SCREW-PAN-CROSS,5X10 |
220AA0510 |
from US $0.48 |
||
|
702
|
702
702A071000 TUBE-BREATHER (BULK) |
702A071000 |
from US $11.40 |
||
|
702A
|
702A
702A071000 TUBE-BREATHER (BULK) |
702A071000 |
from US $11.40 |
||
|
702B
|
702B
702A071000 TUBE-BREATHER (BULK) |
702A071000 |
from US $11.40 |
||
|
11009
|
11009
11009-1826 GASKET,FUEL GAUGE |
11009-1826 |
from US $15.05 |
||
|
14024
|
14024
14024-1434 COVER,FUEL GAUGE |
14024-1434 |
from US $24.38 |
||
|
14069
|
14069
14069-1004 BREATER,FUEL TANK |
14069-1004 |
from US $9.04 |
||
|
43058
|
43058
51039-010 O-RING |
51039-010 |
from US $5.54 |
||
|
51001A
|
51001A
51001-5357-H8
Tank-comp-fuel,ebony
|
51001-5357-H8 |
— | ||
|
51023
|
51023
51023-1028
TAP ASSY,FUEL
|
51023-1028 |
— | ||
|
51049
|
51049
51049-1136 CAP-TANK,FUEL |
51049-1136 |
from US $113.21 |
||
|
52005
|
52005
52005-1060
Gauge,fuel
|
52005-1060 |
— | ||
|
92001
|
92001
92001-1069 BOLT,FUEL GAUGE FIT |
92001-1069 |
from US $4.12 |
||
|
92001A
|
92001A
92001-1091 BOLT,6X20,FUEL TAP |
92001-1091 |
from US $2.53 |
||
|
92022
|
92022
92022-1977 WASHER,5.1X10X1.2 |
92022-1977 |
from US $2.53 |
||
|
92022A
|
92022A
92022-183 WASHER-PLAIN |
92022-183 |
from US $2.53 |
||
|
92027
|
92027
92027-1134 COLLAR,FUEL TANK FITT |
92027-1134 |
from US $8.15 |
||
|
92037
|
92037
92037-010 CLAMP FUEL PIPE |
92037-010 |
from US $2.69 |
||
|
92037A
|
92037A
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92055
|
92055
92055-1023 O-RING |
92055-1023 |
from US $2.53 |
||
|
92055A
|
92055A
92055-1036
O-RING
|
92055-1036 |
— | ||
|
92075
|
92075
92075-1114 DAMPER,FUEL TANK,REAR |
92075-1114 |
from US $11.09 |
||
|
92075A
|
92075A
92075-1115 DAMPER,FUEL TANK,FRON |
92075-1115 |
from US $4.80 |
||
|
92075B
|
92075B
92075-1116 DAMPER,FUEL TANK,FITT |
92075-1116 |
from US $3.57 |
||
|
92093
|
92093
92093-1030 OIL SEAL,FUEL TANK |
92093-1030 |
from US $5.23 |
