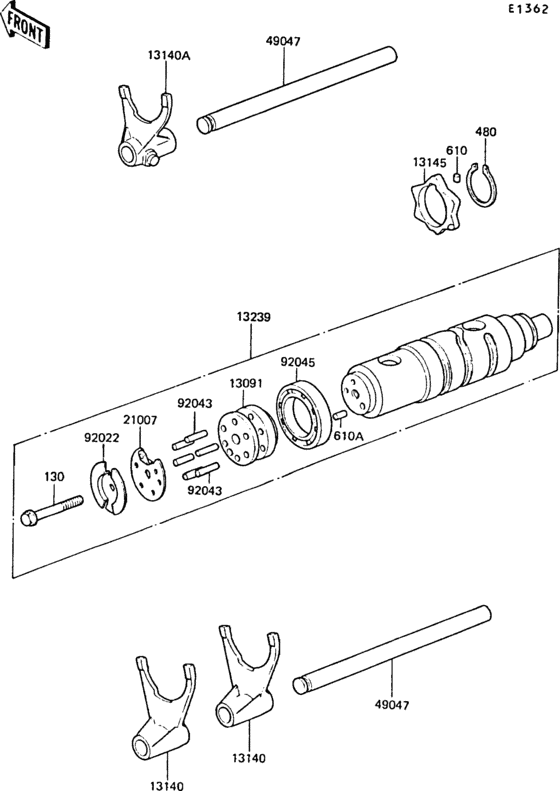

Gear change drum/shift fork(s) Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0635 BOLT,FLANGED,6X35 |
130BA0635 |
from US $1.11 |
||
|
480
|
480
480J3000 CIRCLIP,30MM |
480J3000 |
from US $1.43 |
||
|
610
|
610
610A0406 PIN-DOWEL,4X6 |
610A0406 |
from US $0.79 |
||
|
610A
|
610A
610A0408 PIN DOWEL 4X8 |
610A0408 |
from US $1.07 |
||
|
13091
|
13091
13091-1113 HOLDER,BEARING |
13091-1113 |
US $36.47 |
||
|
13140
|
13140
13140-1050 FORK-SHIFT,LOW,2,3RD |
13140-1050 |
US $135.34 |
||
|
13140A
|
13140A
13140-1051 FORK-SHIFT,4TH&TOP |
13140-1051 |
US $105.08 |
||
|
13145
|
13145
13145-1058 CAM-CHANGE DRUM |
13145-1058 |
from US $16.95 |
||
|
13239
|
13239
13239-1109 DRUM-ASSY-CHANGE |
13239-1109 |
US $245.75 |
||
|
21007
|
21007
21007-1070 ROTOR,NEUTRAL |
21007-1070 |
US $2.81 |
||
|
49047
|
49047
49047-1008 ROD,SHIFT,12X173 |
49047-1008 |
US $23.81 |
||
|
92022
|
92022
92022-1399 WASHER,NEUTRAL ROTOR |
92022-1399 |
US $3.69 |
||
|
92043
|
92043
92042-020 PIN-CHANGE DRUM |
92042-020 |
from US $3.17 |
||
|
92045
|
92045
92045-1016 BEARING,BALL,#6906 |
92045-1016 |
US $27.18 |
