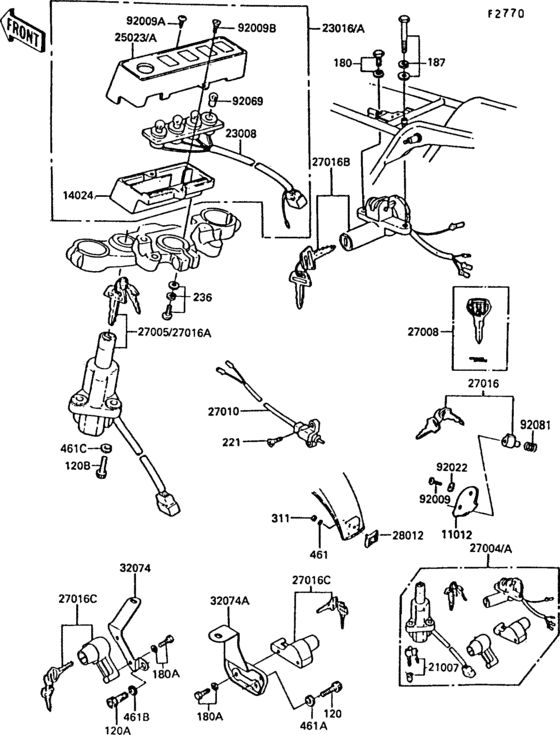

Ignition switch(1/2) Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0610 BOLT-SOCKET,6X10 |
120CB0610 |
from US $1.11 |
||
|
120A
|
120A
120CB0814 BOLT-SOCKET |
120CB0814 |
from US $1.40 |
||
|
120B
|
120B
120CA0822 BOLT-SOCKET,8X22 |
120CA0822 |
from US $1.27 |
||
|
180
|
180
180AA0612 BOLT-UPSET-WS |
180AA0612 |
from US $1.24 |
||
|
180A
|
180A
180C0510
Bolt-upset-ws,5x10,bl
|
180C0510 |
— | ||
|
187
|
187
187B0650
Bolt-upset-wsp
|
187B0650 |
— | ||
|
221
|
221
221AB0520 SCREW-CSK-CROS |
221AB0520 |
from US $0.78 |
||
|
236
|
236
236B0516
Screw-pan-wsp-cros
|
236B0516 |
— | ||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
461A
|
461A
461K0600
WASHER-SPRING
|
461K0600 |
— | ||
| replacement | |||||
|
461A
|
461A
461DB0600 WASHER-SPRING |
461DB0600 |
from US $0.79 |
||
|
461B
|
461B
461DB0800 WASHER-SPRING,8MM,BLA |
461DB0800 |
from US $0.78 |
||
|
461C
|
461C
461DA0800 WASHER-SPRING,8MM |
461DA0800 |
from US $0.48 |
||
|
14024
|
14024
14025-1117 COVER,PILOT LAMP,LOWE |
14025-1117 |
US $17.87 |
||
|
21007
|
21007
21007-5039 ROTOR,LOCK,TANK CAP |
21007-5039 |
from US $59.39 |
||
|
23008
|
23008
23008-1048
Socket assy pilot lam
|
23008-1048 |
— | ||
|
23016
|
23016
23016-1015
Lamp assy,pilot
|
23016-1015 |
— | ||
|
25023
|
25023
25023-1016
Cover,pilot lamp,uppe
|
25023-1016 |
— | ||
|
27004
|
27004
27004-5216
Switch-assy
|
27004-5216 |
— | ||
|
27008
|
27008
27008-1103 KEY-LOCK,BLANK |
27008-1103 |
from US $14.57 |
||
|
27010
|
27010
27010-1189 SWITCH,SIDE STAND |
27010-1189 |
US $57.15 |
||
|
27016A
|
27016A
27016-5026
IGNITION&STEERING ASY
|
27016-5026 |
— | ||
|
27016B
|
27016B
27016-5027
LOCK ASSY,SEAT
|
27016-5027 |
— | ||
|
27016C
|
27016C
27016-5038
LOCK ASSY,HELMET
|
27016-5038 |
— | ||
|
28012
|
28012
28012-1055 REFLECTOR-REFLEX,RR |
28012-1055 |
US $15.80 |
||
|
32074
|
32074
32074-1020 BRACKET-LOCK,HLMT,LH |
32074-1020 |
US $6.80 |
||
|
32074A
|
32074A
32074-1021 BRACKET-LOCK,HLMT,RH |
32074-1021 |
US $12.01 |
||
|
92009A
|
92009A
92009-1073 SCREW,TAPPING,3.5X10 |
92009-1073 |
US $2.11 |
||
|
92009B
|
92009B
92009-1074 SCREW,CNTSNK HED,4X10 |
92009-1074 |
US $2.59 |
||
|
92069
|
92069
92069-018 BULB 12V 3W |
92069-018 |
from US $3.90 |
||
