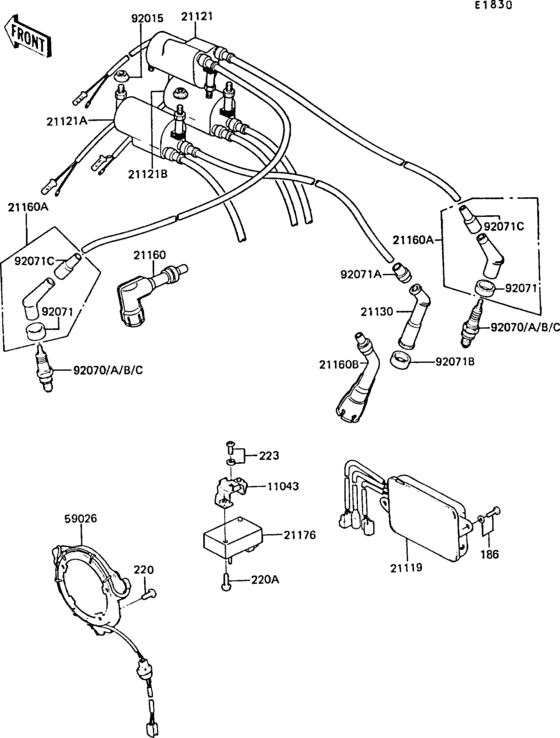

Ignition System Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
186
|
186
186B0610 Bolt,upset |
186B0610 |
US $1.11 |
||
| replacement | |||||
|
186
|
186
186AA0610
Bolt-upset-wp
|
186AA0610 |
— | ||
|
220
|
220
220AA0612 SCREW-PAN-CROSS,6X12 |
220AA0612 |
from US $0.91 |
||
|
220A
|
220A
220AB0630 SCREW-PAN-CROSS |
220AB0630 |
from US $1.11 |
||
|
223
|
223
223AA0612 SCREW-PAN-WS-CROS |
223AA0612 |
from US $0.65 |
||
|
11043
|
11043
11043-1338 BRACKET-B,SENSOR |
11043-1338 |
US $8.30 |
||
|
21119
|
21119
21119-1073
IGNITER
|
21119-1073 |
— | ||
|
21121
|
21121
21121-1074
Coil-ignition,#1 & #6
|
21121-1074 |
— | ||
|
21121A
|
21121A
21121-1075
Coil-ignition,#2 & #5
|
21121-1075 |
— | ||
|
21121B
|
21121B
21121-1076
Coil-ignition,#3 & #8
|
21121-1076 |
— | ||
|
21160
|
21160
21160-005
Cap,spark plug
|
21160-005 |
— | ||
|
21160B
|
21160B
21160-1018
Cap-assy-plug
|
21160-1018 |
— | ||
|
21176
|
21176
21176-1006 SENSOR,VACUUM |
21176-1006 |
US $1,013.65 |
||
|
59026
|
59026
59026-1027
COIL-PULSING
|
59026-1027 |
— | ||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92070
|
92070
120CA0530 BOLT-SOCKET,5X30 |
120CA0530 |
from US $0.95 |
||
|
92070A
|
92070A
120CA0530 BOLT-SOCKET,5X30 |
120CA0530 |
from US $0.95 |
||
