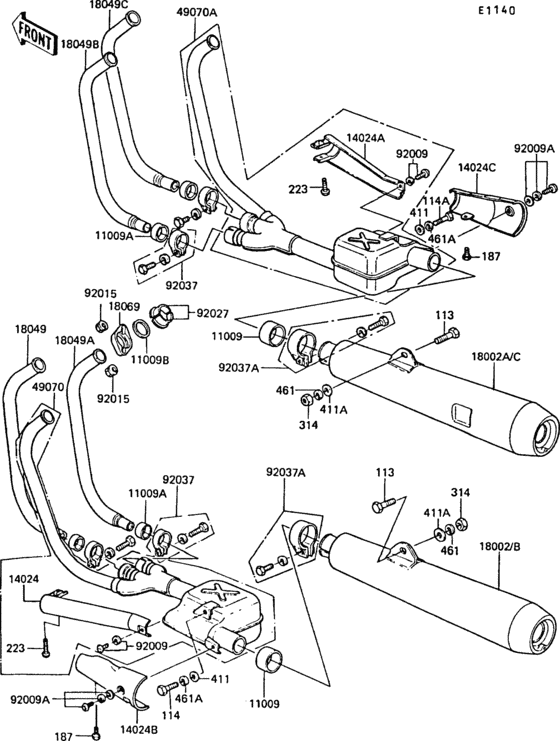

Muffler(s) Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
113
|
113
113J1040 BOLT-SMALL-FINE,10X40 |
113J1040 |
US $5.33 |
||
|
114
|
114
114N0825
BOLT,8X25
|
114N0825 |
— | ||
|
114A
|
114A
114N0855 BOLT,8X55 |
114N0855 |
US $3.82 |
||
|
187
|
187
187AA0612 BOLT-UPSET-WSP |
187AA0612 |
from US $1.11 |
||
|
223
|
223
223B0640
Screw-pan-ws-cros,6x4
|
223B0640 |
— | ||
|
314
|
314
314AB1000 NUT-HEX-FINE,10MM,BLA |
314AB1000 |
US $1.09 |
||
|
411
|
411
411S0800 WASHER |
411S0800 |
from US $1.74 |
||
|
411A
|
411A
411AB1000 WASHER,10MM |
411AB1000 |
from US $2.53 |
||
|
461
|
461
461DB1000 WASHER-SPRING,10MM |
461DB1000 |
from US $1.09 |
||
|
461A
|
461A
461S0800 WASHER SPRING 8MM |
461S0800 |
from US $0.95 |
||
|
11009
|
11009
11009-1666 GASKET,EXHAUST PIPE C |
11009-1666 |
from US $21.54 |
||
|
11009A
|
11009A
11060-1051 GASKET,MUFFLER CONNECTING |
11060-1051 |
from US $21.17 |
||
|
11009B
|
11009B
11009-1866 GASKET,EXHAUST PIPE H |
11009-1866 |
from US $4.91 |
||
|
14024
|
14024
14025-1147 COVER,MUFFLER,L.H,FR |
14025-1147 |
US $32.53 |
||
|
14024A
|
14024A
14025-1148 COVER,MUFFLER,R.H,FR |
14025-1148 |
US $45.72 |
||
|
14024B
|
14024B
14025-1149
COVER,MUFFLER,L.H,RER
|
14025-1149 |
— | ||
|
14024C
|
14024C
14025-1150
COVER,MUFFLER,R.H,RER
|
14025-1150 |
— | ||
|
18002
|
18002
18002-1634
Body-comp-muffler,lh
|
18002-1634 |
— | ||
|
18002A
|
18002A
18002-1635
Body-comp-muffler,rh
|
18002-1635 |
— | ||
|
18049
|
18049
18049-1164
PIPE-EXHAUST,#2
|
18049-1164 |
— | ||
|
18049A
|
18049A
18049-1165
PIPE-EXHAUST,#3
|
18049-1165 |
— | ||
|
18049B
|
18049B
18049-1166
PIPE-EXHAUST,#4
|
18049-1166 |
— | ||
|
18049C
|
18049C
18049-1167
PIPE-EXHAUST,#5
|
18049-1167 |
— | ||
|
18069
|
18069
18069-1010 HOLDER,EXHAUST PIPE |
18069-1010 |
US $16 |
||
|
49070
|
49070
49070-1101
MUFFLER-COMP,LH
|
49070-1101 |
— | ||
|
49070A
|
49070A
49070-1102
MUFFLER-COMP,RH
|
49070-1102 |
— | ||
|
92009
|
92009
92009-1088 SCREW,6X12 |
92009-1088 |
US $2.48 |
||
|
92009A
|
92009A
92009-1098 SCREW,6X10 |
92009-1098 |
US $2.48 |
||
|
92015
|
92015
92015-1365 NUT,6MM |
92015-1365 |
from US $4.09 |
||
|
92027
|
92027
92027-1142 COLLAR,EXHAUST PIPE (L=14.5) |
92027-1142 |
from US $4.25 |
||
|
92037
|
92037
92037-1243
CLAMP,MUFFLER,37MM
|
92037-1243 |
— | ||
|
92037A
|
92037A
92037-1228
CLAMP,MUFFLER
|
92037-1228 |
— |
