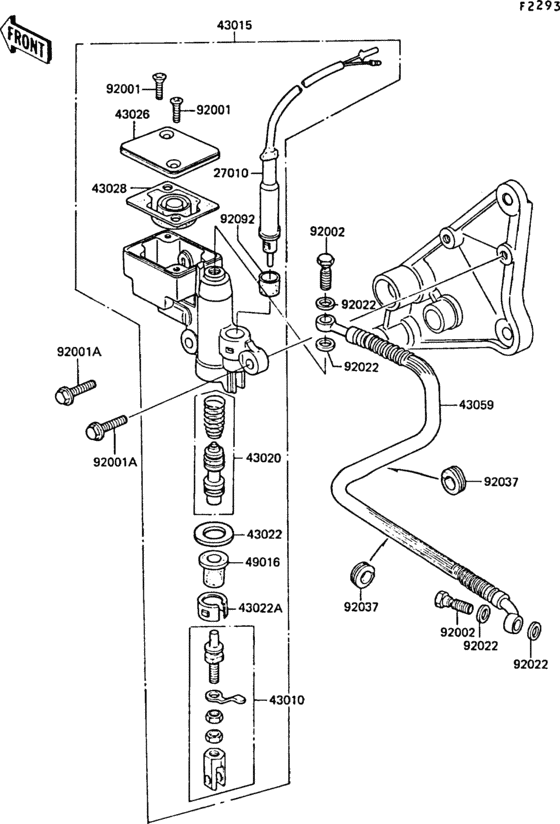

Rear master cylinder Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27010
|
27010
27010-1027
SWITCH,REAR BRAKE
|
27010-1027 |
— | ||
|
43010
|
43010
43010-1001 ROD ASSY,BRAKE |
43010-1001 |
US $55.87 |
||
|
43015
|
43015
43015-1062
CYLINDER ASSY,REAR
|
43015-1062 |
— | ||
|
43020
|
43020
43020-1024
PISTON-COMP-BRAKE
|
43020-1024 |
— | ||
|
43022
|
43022
43022-1002
STOPPER,PISTON
|
43022-1002 |
— | ||
|
43022A
|
43022A
43022-1003
STOPPER,DUST COVER
|
43022-1003 |
— | ||
|
43026
|
43026
43026-1013 CAP,OIL CUP |
43026-1013 |
US $36.61 |
||
|
43028
|
43028
43028-1007
DIAPHRAGM
|
43028-1007 |
— | ||
|
43059
|
43059
43059-1254
Hose-brake,l=620
|
43059-1254 |
— | ||
|
49016
|
49016
49016-1026
DUST COVER
|
49016-1026 |
— | ||
|
92001
|
92001
92001-1055 SCREW,COUNTERSUNK HED |
92001-1055 |
from US $3.64 |
||
|
92001A
|
92001A
92001-1095 BOLT,8X28 |
92001-1095 |
from US $3.80 |
||
|
92002
|
92002
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
92037
|
92037
43064007 DAMPER RUBBER |
43064007 |
from US $3.64 |
||
|
92092
|
92092
92092-1007
BUSHING
|
92092-1007 |
— |
