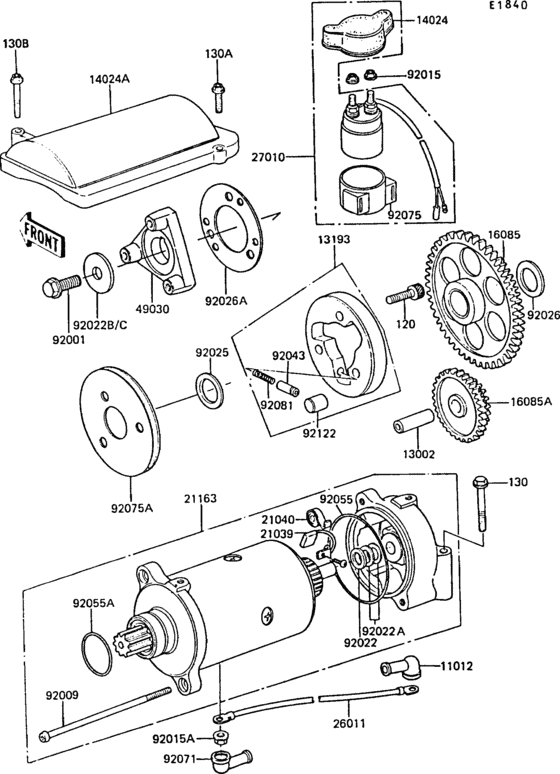

Starter motor Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0825 BOLT-SOCKET,8X25 |
120CA0825 |
from US $0.95 |
||
|
130
|
130
130BA0655 BOLT,FLANGED,6X55 |
130BA0655 |
from US $1.40 |
||
|
130A
|
130A
130N0625
BOLT-FLANGED
|
130N0625 |
— | ||
|
130B
|
130B
130N0640
BOLT-FLANGED
|
130N0640 |
— | ||
|
11012
|
11012
11012-1354 CAP,TERMINAL |
11012-1354 |
from US $7.44 |
||
|
13002
|
13002
13002019 PIN-PISTON |
13002019 |
US $13.27 |
||
|
13193
|
13193
13193-1062 CLUTCH-ASSY-ONEWAY |
13193-1062 |
from US $131.95 |
||
|
14024
|
14024
14025-1165
COVER,MAGNETIC SWITCH
|
14025-1165 |
— | ||
|
14024A
|
14024A
14025-1752 COVER,STARTER MOTOR |
14025-1752 |
US $63.94 |
||
|
16085
|
16085
16085-1040
GEAR,STARTER CLUTCH,6
|
16085-1040 |
— | ||
|
16085A
|
16085A
16085-1041 GEAR,STARTER REDUCTIO |
16085-1041 |
US $57.73 |
||
|
21039
|
21039
21039003 CARBON BRUSH |
21039003 |
from US $23.76 |
||
|
21040
|
21040
21040003
SPRING,CARBON BRUSH
|
21040003 |
— | ||
|
21163
|
21163
21163-1233
STARTER,ELECTRIC
|
21163-1233 |
— | ||
|
26011
|
26011
26011-1276 WIRE-LEAD,STARTER MOT |
26011-1276 |
from US $49.07 |
||
|
27010
|
27010
27010-1025 SWITCH,MAGNETIC |
27010-1025 |
US $103.54 |
||
|
49030
|
49030
49030-1008
Hub,torsion damper
|
49030-1008 |
— | ||
|
92001
|
92001
92001-1425 BOLT,FLANGED,12X25 |
92001-1425 |
US $10.64 |
||
|
92009
|
92009
21015005 SCREW,PAN HEAD,6X110 |
21015005 |
US $7.22 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92015A
|
92015A
92210-0630 NUT,FLANGED,6MM |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
21025010
WASHER,THRUST,1.6T
|
21025010 |
— | ||
|
92022A
|
92022A
21025011 WASHER,THRUST,0.2T |
21025011 |
from US $4.28 |
||
|
92022B
|
92022B
92022-1263 WASHER,PLAIN |
92022-1263 |
US $33.98 |
||
|
92022C
|
92022C
92022-1263 WASHER,PLAIN |
92022-1263 |
US $33.98 |
||
|
92025
|
92025
92025-1019 SHIM,25.3X36X0.3 |
92025-1019 |
US $10.52 |
||
|
92026
|
92026
92026-1059
SPACER,25X34X2.3
|
92026-1059 |
— | ||
|
92026A
|
92026A
92026-112
PLATE,CLUTCH STARTER
|
92026-112 |
— | ||
|
92043
|
92043
92043-087 PIN |
92043-087 |
from US $8.71 |
||
|
92055
|
92055
21027003 0 RING,STARTING MTR |
21027003 |
US $7.22 |
||
|
92055A
|
92055A
92055-1276 RING-O |
92055-1276 |
from US $7.62 |
||
|
92071
|
92071
21017017 GROMMET,CORD |
21017017 |
from US $6.81 |
||
|
92075
|
92075
21064002 DAMPER,MAGNETIC SWITC |
21064002 |
from US $14.41 |
||
| replacement | |||||
|
92075
|
92075
92161-1722 DAMPER,MAGNETIC SWITC |
92161-1722 |
from US $14.10 |
||
|
92075A
|
92075A
92075-1390 DAMPER |
92075-1390 |
US $106.83 |
||
|
92081
|
92081
92081-110 SPRING |
92081-110 |
from US $3.48 |
||
|
92122
|
92122
92122004 ROLLER |
92122004 |
from US $7.44 |
||
