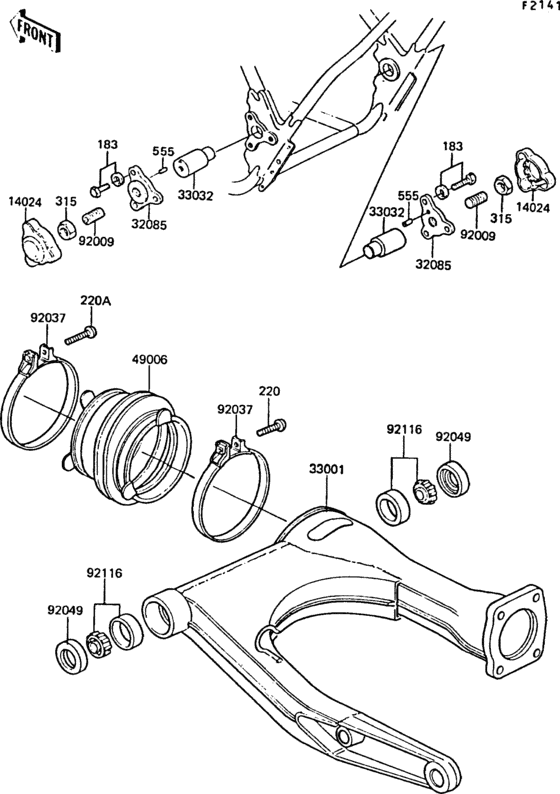

Swingarm Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
183
|
183
183BA0822 BOLT-UPSET-WS-SMALL |
183BA0822 |
from US $1.40 |
||
|
220
|
220
220AA0420 SCREW-PAN-CROS,4X20 |
220AA0420 |
from US $0.79 |
||
|
220A
|
220A
220AA0430 SCREW-PAN-CROS |
220AA0430 |
from US $0.94 |
||
|
315
|
315
315AA1400 NUT,14MM |
315AA1400 |
from US $1.24 |
||
|
555
|
555
555A0314
PIN,SPRING,3X14
|
555A0314 |
— | ||
|
14024
|
14024
14025-1087
COVER,SWING ARM
|
14025-1087 |
— | ||
|
32085
|
32085
32085-1053
STOPPER,SWING ARM
|
32085-1053 |
— | ||
|
33001
|
33001
33001-1026 ARM,SWING |
33001-1026 |
US $494.84 |
||
|
33032
|
33032
33032-1016
SHAFT,SWING ARM
|
33032-1016 |
— | ||
|
49006
|
49006
49006-1020
BOOT,SWING ARM
|
49006-1020 |
— | ||
|
92009
|
92009
92009-1087
SCREW,14X22
|
92009-1087 |
— | ||
|
92037
|
92037
92037-1097
CLAMP,SWING ARM BOOT
|
92037-1097 |
— | ||
|
92049
|
92049
92049-1030 OIL SEAL,26406 |
92049-1030 |
from US $7.29 |
||
|
92116
|
92116
92116-1001 BRG,ROLLER,4T30203E1 |
92116-1001 |
from US $20.28 |
