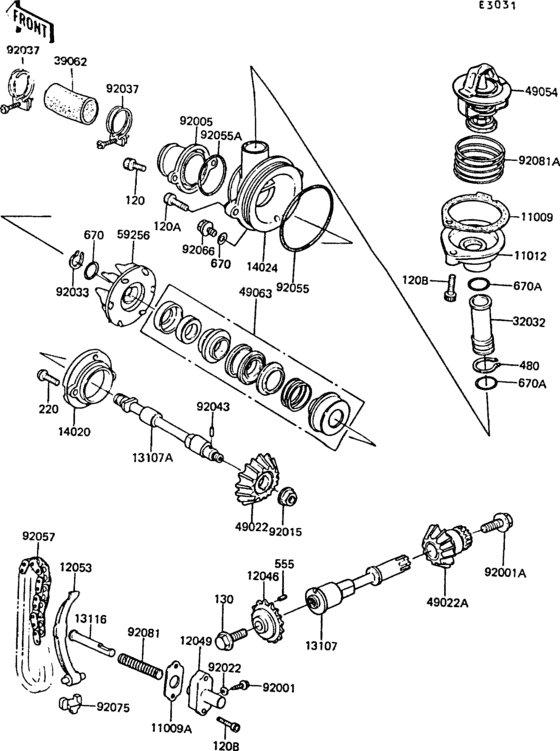

Water pump(1/2) Diagram Kawasaki ZG1300 Z1300
- Year
- 1989
- Model code
- ZG1300-A5
- Sales region
- Norway
- Engine Capacity
- 1300
- Frame
- ZGT30A 004001 - 999999
- Model
- ZG1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CD0616 BOLT-SOCKET |
120CD0616 |
from US $1.11 |
||
|
120A
|
120A
120CD0620 BOLT-SOCKET |
120CD0620 |
from US $1.24 |
||
|
120B
|
120B
120CD0625 BOLT-SOCKET |
120CD0625 |
from US $1.40 |
||
|
130
|
130
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
220
|
220
220R0516 SCREW-PAN-CROS |
220R0516 |
from US $1.27 |
||
|
480
|
480
480J2000 CIRCLIP, 20MM |
480J2000 |
from US $1.27 |
||
|
555
|
555
555A0408 PIN-SPRING,4X8 |
555A0408 |
from US $2.38 |
||
|
670
|
670
670B1508 O RING,8MM |
670B1508 |
from US $1.63 |
||
|
670A
|
670A
670B2016 O RING,16MM |
670B2016 |
from US $1.70 |
||
|
11009
|
11009
11009-1087 GASKET,THERMOSTAT CAP |
11009-1087 |
from US $3.94 |
||
|
11009A
|
11009A
11009-1099
GASKET,TIMING TENSONR
|
11009-1099 |
— | ||
|
11012
|
11012
11012-1054
CAP,THERMOSTAT
|
11012-1054 |
— | ||
|
12046
|
12046
12046-1015
SPROCKET,TIMING CHAIN
|
12046-1015 |
— | ||
|
12049
|
12049
12049-1007 TENSIONER,TIMING CHAN |
12049-1007 |
US $35.24 |
||
|
12053
|
12053
12053-1027
GUIDE,CHAIN,TIMING
|
12053-1027 |
— | ||
|
13107
|
13107
13107-1009
SHAFT,WATER PUMP DRIV
|
13107-1009 |
— | ||
|
13107A
|
13107A
13107-1011
SHAFT,WATER PUMP
|
13107-1011 |
— | ||
|
13116
|
13116
13116-1014 ROD,PUSH,TENSIONER |
13116-1014 |
US $11.47 |
||
|
14020
|
14020
14020-1004
RETAINER,MECHA SEAL
|
14020-1004 |
— | ||
|
14024
|
14024
14025-1864
COVER,WATER PUMP
|
14025-1864 |
— | ||
|
32032
|
32032
32032-1184 PIPE,WATER BYPASS |
32032-1184 |
US $23.85 |
||
|
39062
|
39062
39062-1020
HOSE-COOLING
|
39062-1020 |
— | ||
|
49022
|
49022
49022-1006 GEAR,BEVEL,WATER PUMP |
49022-1006 |
US $132.84 |
||
|
49022A
|
49022A
49022-1015
GEAR-BEVEL,WATER PUMP
|
49022-1015 |
— | ||
|
49054
|
49054
49054-1001 THERMOSTAT |
49054-1001 |
from US $43.23 |
||
|
49063
|
49063
49063-1001
SEAL,MECHANICAL
|
49063-1001 |
— | ||
|
59256
|
59256
59256-1001
IMPELLER,WATER PUMP
|
59256-1001 |
— | ||
|
92001
|
92001
92001-1155 BOLT,TENSIONER ADJUST |
92001-1155 |
from US $3.48 |
||
|
92001A
|
92001A
92001-1371 BOLT,FLANGED,8X17 |
92001-1371 |
US $6.21 |
||
|
92005
|
92005
92005-1011
FITTING,SUCTION
|
92005-1011 |
— | ||
|
92015
|
92015
92015-1014 NUT,8M/M |
92015-1014 |
from US $0.83 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92033
|
92033
92033-1024 CIRCLIP,11M/M,IMPELER |
92033-1024 |
US $3.15 |
||
|
92037
|
92037
92037-1177 CLAMP,HOSE |
92037-1177 |
US $7.65 |
||
|
92043
|
92043
92042-014 PIN GEAR CHANGE DRUM |
92042-014 |
from US $0.75 |
||
|
92055
|
92055
92055-1032
0 RING,67MM
|
92055-1032 |
— | ||
|
92055A
|
92055A
92055-1033
0 RING,0R2037
|
92055-1033 |
— | ||
|
92057
|
92057
92057-1019
CHAIN,TIMING,72L
|
92057-1019 |
— | ||
|
92066
|
92066
92066-1026 PLUG,DRAIN,8X10 |
92066-1026 |
from US $6.36 |
||
|
92075
|
92075
92075-1187 DAMPER,TIMING CHAIN |
92075-1187 |
US $4.52 |
||
|
92081
|
92081
92081-1102 SPRING,TENSIONER |
92081-1102 |
US $3.96 |
||
|
92081A
|
92081A
92081-1104 SPRING,THERMOSTAT |
92081-1104 |
US $12.17 |
