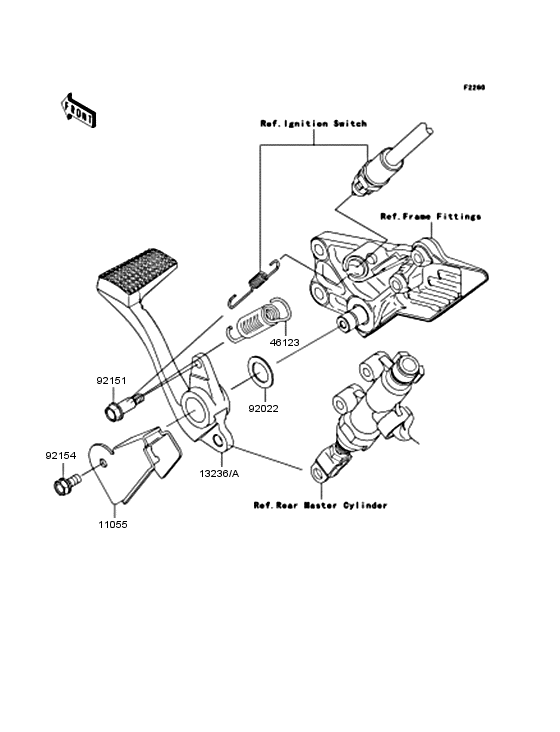

Brake pedal/torque link Diagram Kawasaki ZG1400 1400GTR ABS
- Year
- 2008
- Colour
- Neutron Silver (17N)
- Model code
- ZG1400A8F
- Sales region
- Malaysia
- Engine Capacity
- 1400
- Frame
- ZGT40A 005001 - 019000
- Engine
- ZXT40AE 000001 -
- Model
- 1400GTR ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11055
|
11055
11055-1936 BRACKET,GUARDBRACKET，GUARD |
11055-1936 |
US $17.73 |
||
|
13236
|
13236
13236-0121 Lever-comp,brake pedalLEVER-COMP，BRAKE PEDAL |
13236-0121 |
from US $90.06 |
||
| replacement | |||||
|
13236
|
13236
13236-0173 Lever-comp,brake pedalLEVER-COMP，BRAKE PEDAL |
13236-0173 |
from US $85.76 |
||
|
13236A
|
13236A
13236-0173 Lever-comp,brake pedalLEVER-COMP，BRAKE PEDAL |
13236-0173 |
from US $85.76 |
||
|
46123
|
46123
46123-0006 SPRING-COMP,BRAKE PEDSPRING-COMP，BRAKE PEDAL RETURN |
46123-0006 |
from US $3.76 |
||
|
92022
|
92022
92022-326 WASHER,PLAINWASHER，15.3X24X1 |
92022-326 |
from US $3.20 |
||
|
92151
|
92151
92151-1295 BOLTBOLT，6MM |
92151-1295 |
from US $3.80 |
||
|
92154
|
92154
92154-0293 BOLT,UPSET-WS,6X14BOLT，UPSET-WS，6X14 |
92154-0293 |
from US $0.79 |
||
