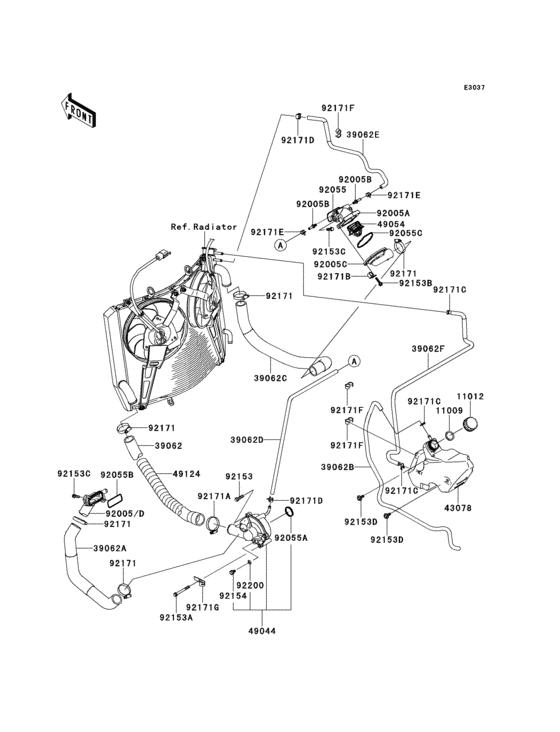

Water pipe Diagram Kawasaki ZG1400 Concours 14
- Year
- 2008
- Colour
- Neutron Silver (17N)
- Model code
- ZG1400B8F
- Sales region
- USA
- Engine Capacity
- 1400
- Model
- Concours 14
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1145 GASKET,RESERVE TANK |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANK |
11012-1084 |
from US $2.14 |
||
|
39062
|
39062
39062-0113 HOSE-COOLING,RAD-W/P |
39062-0113 |
from US $33.59 |
||
|
39062A
|
39062A
39062-0114 HOSE-COOLING,W/P-CYL. |
39062-0114 |
from US $32.38 |
||
|
39062B
|
39062B
39062-0151 HOSE-COOLING,THERMO-P |
39062-0151 |
from US $8.77 |
||
|
39062C
|
39062C
39062-0169 HOSE-COOLING,CYL.HEAD |
39062-0169 |
from US $54.64 |
||
| replacement | |||||
|
39062C
|
39062C
39062-0275 HOSE-COOLING,CYL.HEAD |
39062-0275 |
from US $46.84 |
||
|
39062D
|
39062D
39062-0170 HOSE-COOLING,4X10X490 |
39062-0170 |
from US $6.47 |
||
|
39062E
|
39062E
39062-0217 HOSE-COOLING,AIR VENT |
39062-0217 |
from US $8.95 |
||
|
39062F
|
39062F
39062-0218 HOSE-COOLING,L=797 |
39062-0218 |
from US $11.91 |
||
|
43078
|
43078
43078-0047 RESERVOIR |
43078-0047 |
from US $26.33 |
||
|
49044
|
49044
49044-0006 PUMP-WATER |
49044-0006 |
from US $252.46 |
||
| replacement | |||||
|
49044
|
49044
49044-0012 PUMP-WATER |
49044-0012 |
from US $245.32 |
||
|
49054
|
49054
49054-1067 THERMOSTAT |
49054-1067 |
US $65.04 |
||
| replacement | |||||
|
49054
|
49054
49054-0004 THERMOSTAT |
49054-0004 |
from US $44.30 |
||
|
49124
|
49124
49124-0001 SPRING-TUBE GUARD |
49124-0001 |
from US $39.17 |
||
|
92005
|
92005
92005-0045 FITTING,CYLINDER |
92005-0045 |
from US $26.48 |
||
| replacement | |||||
|
92005
|
92005
92005-0816 FITTING,CYLINDER |
92005-0816 |
from US $23.79 |
||
|
92005A
|
92005A
92005-0047 FITTING,THERMO CASE |
92005-0047 |
from US $23.34 |
||
|
92005B
|
92005B
92005-0056 FITTING |
92005-0056 |
from US $6.18 |
||
| replacement | |||||
|
92005B
|
92005B
92005-0826 FITTING |
92005-0826 |
from US $5.70 |
||
|
92005C
|
92005C
92005-0076 FITTING,THERMO CAP |
92005-0076 |
from US $53.56 |
||
| replacement | |||||
|
92005C
|
92005C
92005-0814 FITTING,THERMO CAP |
92005-0814 |
from US $47.42 |
||
|
92055
|
92055
92055-0021 RING-O |
92055-0021 |
from US $1.90 |
||
|
92055A
|
92055A
92055-0158 RING-O |
92055-0158 |
from US $5.39 |
||
|
92055B
|
92055B
92055-1402 RING-O |
92055-1402 |
from US $5.07 |
||
|
92055C
|
92055C
92055-1699 RING-O,THERMOSTAT CAP |
92055-1699 |
from US $6.57 |
||
|
92153
|
92153
92153-1585 BOLT,FLANGED-SMALL,6X |
92153-1585 |
from US $1.27 |
||
|
92153A
|
92153A
92153-1586 BOLT,FLANGED-SMALL,6X |
92153-1586 |
from US $1.27 |
||
|
92153B
|
92153B
92153-1588 BOLT,FLANGED,5X18 |
92153-1588 |
from US $0.63 |
||
|
92153C
|
92153C
92153-1589 BOLT,FLANGED-SMALL,6X |
92153-1589 |
from US $1.11 |
||
|
92153D
|
92153D
92153-1939
BOLT,UPSET-WP,6X16
|
92153-1939 |
— | ||
| replacement | |||||
|
92153D
|
92153D
92154-1850 BOLT,UPSET-WP,6X16 |
92154-1850 |
from US $0.79 |
||
|
92154
|
92154
92154-0184 BOLT,DRAIN |
92154-0184 |
from US $3.96 |
||
|
92171
|
92171
92171-0179 CLAMP |
92171-0179 |
from US $6.49 |
||
|
92171A
|
92171A
92171-0180 CLAMP |
92171-0180 |
from US $8.24 |
||
|
92171B
|
92171B
92171-0534 CLAMP |
92171-0534 |
from US $3.17 |
||
|
92171C
|
92171C
92171-0718 CLAMP |
92171-0718 |
from US $1.11 |
||
|
92171D
|
92171D
92171-0719 CLAMP |
92171-0719 |
from US $1.11 |
||
|
92171E
|
92171E
92171-0720 CLAMP |
92171-0720 |
from US $1.11 |
||
| replacement | |||||
|
92171E
|
92171E
92170-2042 CLAMP |
92170-2042 |
from US $1.77 |
||
|
92171F
|
92171F
92171-1184 CLAMP |
92171-1184 |
from US $1.43 |
||
|
92171G
|
92171G
92171-1705 CLAMP |
92171-1705 |
from US $3.48 |
||
|
92200
|
92200
92200-0498 WASHER,DRAIN |
92200-0498 |
from US $1.43 |
||
