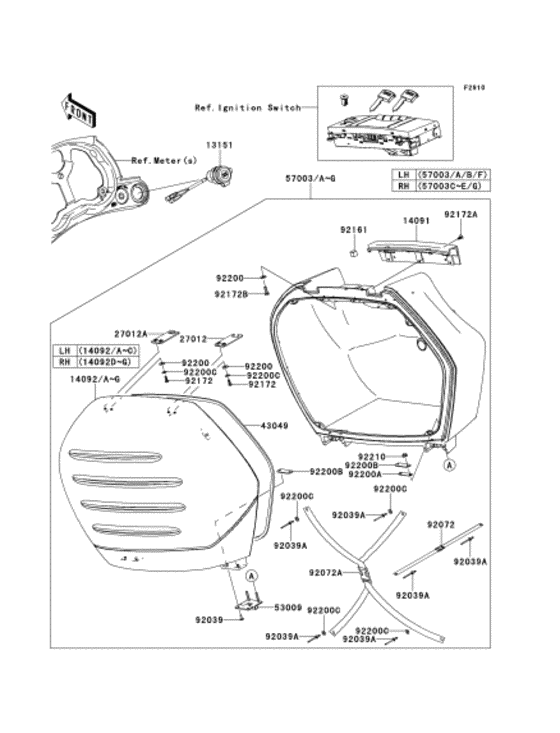

Accessory Diagram Kawasaki ZG1400 1400GTR ABS
- Year
- 2013
- Colour
- Metallic Spark Black (660)
- Model code
- ZG1400CDF
- Sales region
- Southeast Asia
- Engine Capacity
- 1400
- Engine
- ZXT40AE 000001 -
- Model
- 1400GTR ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13151
|
13151
13151-0040 SWITCH-COMPSWITCH-COMP |
13151-0040 |
from US $121.64 |
||
|
14091
|
14091
14091-1688 COVER,SIDE BAG,LIDCOVER，SIDE BAG，LID |
14091-1688 |
from US $114.53 |
||
|
14092
|
14092
14092-0122-19A Coverサイド バツグ，LH，ブル COVER，SIDE BAG，LH，M.M.S.BLUE |
14092-0122-19A |
US $432.67 |
||
|
14092A
|
14092A
14092-0122-33M COVER,SIDE BAG,LH,M.DCOVER，SIDE BAG，LH，C.A.RED |
14092-0122-33M |
from US $432.67 |
||
|
14092B
|
14092B
14092-0122-45W カバ-サイド バツグ，LH，グレ COVER，SIDE BAG，LH，W.GRAY |
14092-0122-45W |
US $432.67 |
||
|
14092C
|
14092C
14092-0122-660 COVER,SIDE BAG,LH,M.Sサイド バツグ，LH，ブラツク COVER，SIDE BAG，LH，M.S.BLACK |
14092-0122-660 |
from US $381.40 |
||
|
14092D
|
14092D
14092-0123-19A Coverサイド バツグ，RH，ブル COVER，SIDE BAG，RH，M.M.S.BLUE |
14092-0123-19A |
US $432.67 |
||
|
14092E
|
14092E
14092-0123-33M COVER,SIDE BAG,RH,M.DCOVER，SIDE BAG，RH，C.A.RED |
14092-0123-33M |
from US $432.67 |
||
|
14092F
|
14092F
14092-0123-45W カバ-サイド バツグ，RH，グレ COVER，SIDE BAG，RH，W.GRAY |
14092-0123-45W |
US $432.67 |
||
|
14092G
|
14092G
14092-0123-660 COVER,SIDE BAG,RH,M.Sサイド バツグ，RH，ブラツク COVER，SIDE BAG，RH，M.S.BLACK |
14092-0123-660 |
from US $381.40 |
||
|
27012
|
27012
27012-0110 HOOK,LHHOOK |
27012-0110 |
from US $16.08 |
||
|
27012A
|
27012A
27012-0111 HOOK,RHHOOK |
27012-0111 |
from US $16.08 |
||
|
43049
|
43049
43049-0010 PACKINGPACKING |
43049-0010 |
from US $11.76 |
||
|
53009
|
53009
53009-0020 HINGEHINGE |
53009-0020 |
from US $20.73 |
||
|
57003
|
57003
57003-0052-25Z Bagassyebony+redLH，ボデイブラツク/カハ BAG-ASSY，LH，BODY BLK+COVER BLU |
57003-0052-25Z |
US $774.80 |
||
| replacement | |||||
|
57003
|
57003
57003-0101-25Z Bag-Assy,lh,body Blk+Cover BluBAG-ASSY，LH，BODY BLK+COVER BLU |
57003-0101-25Z |
US $718.50 |
||
|
57003A
|
57003A
57003-0052-27X BAG-ASSY,LH,BODY BLK+LH，ボデイ ブラツク+カバ BAG-ASSY，LH，BODY BLK+COVER BLK |
57003-0052-27X |
from US $774.80 |
||
| replacement | |||||
|
57003A
|
57003A
57003-0101-27X BAG-ASSY,LH,BODY BLK+BAG-ASSY，LH，BODY BLK+COVER BLK |
57003-0101-27X |
from US $718.50 |
||
|
57003B
|
57003B
57003-0052-33N BAG-ASSY,LH,BODY BLK+BAG-ASSY，LH，BODY BLK+COVER RED |
57003-0052-33N |
from US $774.80 |
||
| replacement | |||||
|
57003B
|
57003B
57003-0101-33N BAG-ASSY,LH,BODY BLK+BAG-ASSY，LH，BODY BLK+COVER RED |
57003-0101-33N |
from US $718.50 |
||
|
57003C
|
57003C
57003-0053-25Z Bagassyebony+redRH，ボデイ ブラツク/カ BAG-ASSY，RH，BODY BLK+COVER BLU |
57003-0053-25Z |
US $774.80 |
||
| replacement | |||||
|
57003C
|
57003C
57003-0102-25Z Bag-assy,rh,body blk+coveBAG-ASSY，RH，BODY BLK+COVER BLU |
57003-0102-25Z |
US $718.50 |
||
|
57003D
|
57003D
57003-0053-27X BAG-ASSY,RH,BODY BLK+RH，ボデイ ブラツク+カバ BAG-ASSY，RH，BODY BLK+COVER BLK |
57003-0053-27X |
from US $774.80 |
||
| replacement | |||||
|
57003D
|
57003D
57003-0102-27X BAG-ASSY,RH,BODY BLK+BAG-ASSY，RH，BODY BLK+COVER BLK |
57003-0102-27X |
from US $718.50 |
||
|
57003E
|
57003E
57003-0053-33N BAG-ASSY,RH,BODY BLK+BAG-ASSY，RH，BODY BLK+COVER RED |
57003-0053-33N |
from US $774.80 |
||
| replacement | |||||
|
57003E
|
57003E
57003-0102-33N BAG-ASSY,RH,BODY BLK+BAG-ASSY，RH，BODY BLK+COVER RED |
57003-0102-33N |
from US $718.50 |
||
|
57003F
|
57003F
57003-0101-45X バツグアツシLH，ブラツク+グレ BAG-ASSY，LH，BODY BLK+COVER GRY |
57003-0101-45X |
US $774.80 |
||
|
57003G
|
57003G
57003-0102-45X バツグアツシRH，ブラツク+グレ BAG-ASSY，RH，BODY BLK+COVER GRY |
57003-0102-45X |
US $774.80 |
||
|
92039
|
92039
92039-0063 RIVETRIVET |
92039-0063 |
from US $1.27 |
||
|
92039A
|
92039A
92039-0072 RIVETRIVET |
92039-0072 |
from US $1.90 |
||
|
92072
|
92072
92072-0082 BANDBAND |
92072-0082 |
from US $12.51 |
||
|
92072A
|
92072A
92072-1368 BANDBAND |
92072-1368 |
from US $26.93 |
||
|
92161
|
92161
92161-0573 DAMPERDAMPER |
92161-0573 |
from US $1.90 |
||
|
92172
|
92172
92172-0303 SCREW,4X12SCREW，4X12 |
92172-0303 |
from US $0.95 |
||
|
92172A
|
92172A
92172-0306 SCREW,4X8SCREW，4X8 |
92172-0306 |
from US $0.95 |
||
|
92172B
|
92172B
92172-0493 SCREW,5X155X15 SCREW，5X15 |
92172-0493 |
from US $0.63 |
||
|
92200
|
92200
92200-0373 WASHER,5MMWASHER，5MM |
92200-0373 |
from US $0.95 |
||
|
92200A
|
92200A
92200-0374 WASHERWASHER |
92200-0374 |
from US $1.90 |
||
|
92200B
|
92200B
92200-0375 WASHERWASHER |
92200-0375 |
from US $1.90 |
||
|
92200C
|
92200C
92200-0416 WASHERWASHER |
92200-0416 |
from US $0.95 |
||
|
92210
|
92210
92210-0434 NUT,CAP,4MMNUT，CAP，4MM |
92210-0434 |
from US $1.11 |
||
