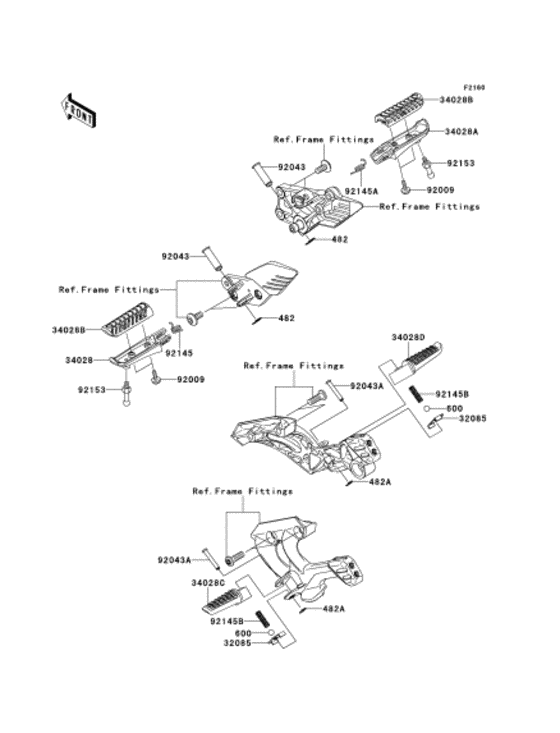

Footrests Diagram Kawasaki ZG1400 1400GTR ABS
- Year
- 2013
- Colour
- Metallic Spark Black (660)
- Model code
- ZG1400CDF
- Sales region
- Southeast Asia
- Engine Capacity
- 1400
- Engine
- ZXT40AE 000001 -
- Model
- 1400GTR ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
482
|
482
482EA0100 CIRCLIP-TYPE-E,10MMCIRCLIP-TYPE-E，10MM |
482EA0100 |
from US $0.72 |
||
|
482A
|
482A
482EA5000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E |
482EA5000 |
from US $0.91 |
||
|
600
|
600
600A0800 BALL,6.35MMBALL-STEEL，1/4; s |
600A0800 |
from US $0.91 |
||
|
32085
|
32085
32085-0046 STOPPER,REAR STEPSTOPPER，REAR STEP |
32085-0046 |
from US $2.13 |
||
|
34028
|
34028
34028-0031 STEP,FR,LHSTEP，FR，LH |
34028-0031 |
from US $47.12 |
||
|
34028A
|
34028A
34028-0032 STEP,FR,RHSTEP，FR，RH |
34028-0032 |
from US $47.12 |
||
|
34028B
|
34028B
34028-0033 STEP,FR,RUBBERSTEP，FR，RUBBER |
34028-0033 |
from US $22.41 |
||
|
34028C
|
34028C
34028-0329 STEP,RR,LHRR，LH STEP，RR，LH |
34028-0329 |
from US $55.35 |
||
|
34028D
|
34028D
34028-0330 STEP,RR,RHRR，RH STEP，RR，RH |
34028-0330 |
from US $55.35 |
||
|
92009
|
92009
92009-1404 SCREW,5X14SCREW，5X14 |
92009-1404 |
US $3.01 |
||
| replacement | |||||
|
92009
|
92009
92172-0976 SCREW,5X14SCREW，5X14 |
92172-0976 |
from US $2.69 |
||
|
92043
|
92043
92043-1594 PIN,12X42.5PIN，12X42.5 |
92043-1594 |
from US $3.48 |
||
|
92043A
|
92043A
92043-1595 PIN,6X40PIN，6X40 |
92043-1595 |
from US $1.77 |
||
|
92145
|
92145
92145-0360 SPRING,STEP RETURN,LHSPRING，STEP RETURN，LH |
92145-0360 |
from US $1.90 |
||
|
92145A
|
92145A
92145-0361 SPRING,STEP RETURN,RHSPRING，STEP RETURN，RH |
92145-0361 |
from US $1.90 |
||
|
92145B
|
92145B
92145-1319 SPRINGSPRING |
92145-1319 |
from US $1.61 |
||
|
92153
|
92153
92153-1462 BOLT,BANK SENSOR,6X10BOLT，BANK SENSOR |
92153-1462 |
US $3.01 |
||
| replacement | |||||
|
92153
|
92153
92154-1854 BOLT,BANK SENSOR,6X10BOLT，BANK SENSOR |
92154-1854 |
from US $3.37 |
||
