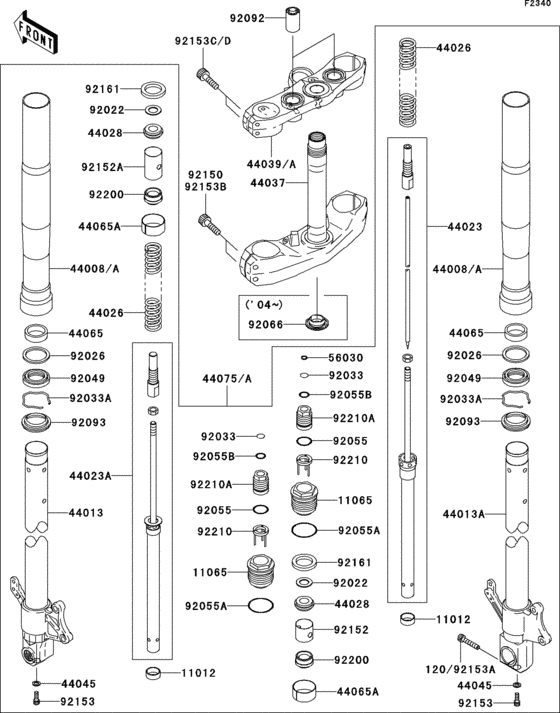

Front fork(1/2) Diagram Kawasaki ZR1000 Z1000
- Year
- 2003
- Model code
- ZR1000-A1
- Sales region
- Canada
- Engine Capacity
- 1000
- Frame
- JKAZRCA1 3A000001 - 3A015000
- Model
- Z1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0840 BOLT-SOCKET,8X40,BLAC |
120CB0840 |
from US $1.27 |
||
|
11012
|
11012
11012-1761 CAP |
11012-1761 |
from US $24.09 |
||
|
11065
|
11065
11065-0011
CAP
|
11065-0011 |
— | ||
|
44008
|
44008
44008-1059 PIPE-FORK OUTER |
44008-1059 |
from US $471.21 |
||
|
44013
|
44013
44013-1513-D3 PIPE-FORK INNER,LH,M. |
44013-1513-D3 |
from US $415.28 |
||
|
44013A
|
44013A
44013-1514-D3 PIPE-FORK INNER,RH,M. |
44013-1514-D3 |
from US $415.28 |
||
|
44023
|
44023
44023-0002 CYLINDER-SET-FORK,RH |
44023-0002 |
from US $447.98 |
||
|
44023A
|
44023A
44023-0003 CYLINDER-SET-FORK,LH |
44023-0003 |
from US $447.98 |
||
|
44026
|
44026
44026-0004 SPRING-FRONT FORK |
44026-0004 |
from US $85.12 |
||
|
44028
|
44028
44028-1083 GUIDE-FORK SPRING |
44028-1083 |
from US $7.92 |
||
|
44037
|
44037
44037-1444 Holder-fork under |
44037-1444 |
from US $610.68 |
||
|
44039A
|
44039A
44039-1335 HOLDER-FORK UPPER |
44039-1335 |
from US $327.42 |
||
|
44045
|
44045
44045051 GASKET,FORK CYL BOLT |
44045051 |
from US $4.59 |
||
|
44065
|
44065
44065-0001 BUSHING-FRONT FORK,GU |
44065-0001 |
from US $16.32 |
||
|
44065A
|
44065A
44065-0002 BUSHING-FRONT FORK,SL |
44065-0002 |
from US $16.32 |
||
|
44075A
|
44075A
44075-1185-ES DAMPER-SET-FORK,GOLD |
44075-1185-ES |
from US $1,490.60 |
||
| replacements | |||||
|
44075A
|
44075A
44070-1993-ES DAMPER-ASSY,FORK,LH,G |
44070-1993-ES |
US $944.64 |
||
|
44075A
|
44075A
44070-1994-ES DAMPER-ASSY,FORK,RH,G |
44070-1994-ES |
from US $882.73 |
||
|
56030
|
56030
56030-0006 LABEL |
56030-0006 |
from US $4.88 |
||
|
92022
|
92022
92022-1713 WASHER,SPRING SEAT |
92022-1713 |
from US $7.76 |
||
|
92026
|
92026
92026-1276 SPACER,FORK OUTER |
92026-1276 |
from US $6.34 |
||
|
92033
|
92033
92033-0002 RING-SNAP |
92033-0002 |
from US $3.33 |
||
|
92033A
|
92033A
92033-1222 RING-SNAP,FORK OUTER |
92033-1222 |
from US $4.61 |
||
|
92049
|
92049
92049-1363 SEAL-OIL |
92049-1363 |
from US $21.24 |
||
|
92055
|
92055
92055-0003 RING-O |
92055-0003 |
from US $3.48 |
||
|
92055A
|
92055A
92055-1497 RING-O,FORK CAP |
92055-1497 |
from US $3.80 |
||
|
92055B
|
92055B
670B2014 O RING,14MM |
670B2014 |
from US $1.50 |
||
|
92092
|
92092
92092-1090 BUSHING-RUBBER |
92092-1090 |
from US $4.75 |
||
|
92093
|
92093
92093-1268 SEAL,FORK |
92093-1268 |
from US $20.53 |
||
|
92150
|
92150
120CA0835 BOLT-SOCKET,8X35 |
120CA0835 |
from US $1.27 |
||
|
92152
|
92152
92152-0011 COLLAR |
92152-0011 |
from US $6.81 |
||
|
92152A
|
92152A
92152-0012 COLLAR |
92152-0012 |
from US $10.14 |
||
|
92153
|
92153
92153-0028 BOLT |
92153-0028 |
from US $4.75 |
||
|
92153D
|
92153D
92153-1265 BOLT,SOCKET |
92153-1265 |
from US $6.49 |
||
|
92161
|
92161
92161-0006 DAMPER |
92161-0006 |
from US $5.07 |
||
|
92200
|
92200
92200-1464 WASHER |
92200-1464 |
from US $5.23 |
||
|
92210
|
92210
92210-0019 NUT |
92210-0019 |
from US $12.51 |
||
|
92210A
|
92210A
92210-0020 NUT |
92210-0020 |
from US $7.44 |
||
