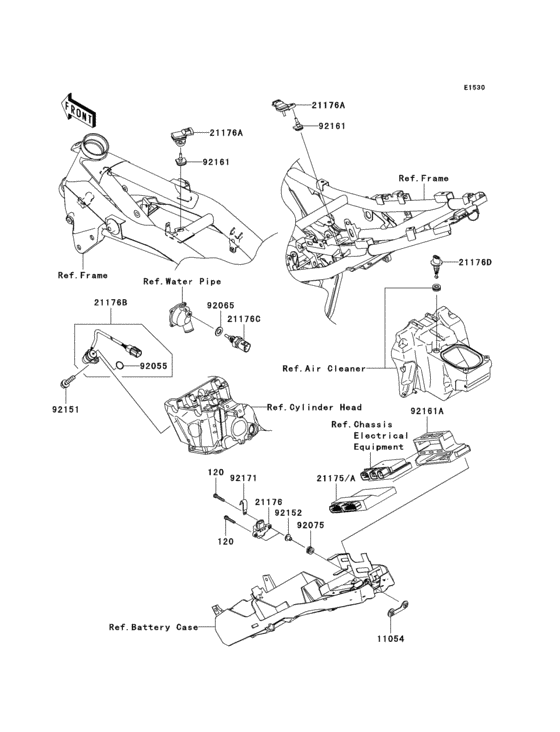

Fuel injection Diagram Kawasaki ZR1000 Z1000
- Year
- 2008
- Colour
- Pearl Crystal White (667)
- Model code
- ZR1000B8F
- Sales region
- Europe (General)
- Engine Capacity
- 1000
- Model
- Z1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0525 BOLT-SOCKET |
120P0525 |
from US $1.27 |
||
| replacement | |||||
|
120
|
120
120CA0525 BOLT-SOCKET |
120CA0525 |
from US $0.95 |
||
|
11054
|
11054
11054-1892 BRACKET |
11054-1892 |
from US $8.77 |
||
|
21175A
|
21175A
21175-0172
CONTROL UNIT-ELECTRON
|
21175-0172 |
— | ||
|
21176
|
21176
21176-0026 SENSOR,VEHICLE-DOWN |
21176-0026 |
from US $58.64 |
||
|
21176A
|
21176A
21176-0058 SENSOR |
21176-0058 |
from US $101.43 |
||
|
21176B
|
21176B
21176-0064 SENSOR,CAM |
21176-0064 |
from US $109.78 |
||
|
21176C
|
21176C
21176-1120 Sensor,water Temp |
21176-1120 |
from US $54.64 |
||
|
21176D
|
21176D
21176-2106 SENSOR |
21176-2106 |
from US $24.96 |
||
|
92055
|
92055
92055-1639 RING-O |
92055-1639 |
from US $1.43 |
||
|
92065
|
92065
92065-097 GASKET,12X22X2,DRAIN PLUG |
92065-097 |
from US $1.61 |
||
|
92075
|
92075
92075-1912 DAMPER |
92075-1912 |
from US $3.64 |
||
|
92151
|
92151
92151-1774 BOLT-FLANGED,6X16 |
92151-1774 |
from US $1.46 |
||
| replacement | |||||
|
92151
|
92151
130CC0616 BOLT-FLANGED,6X16 |
130CC0616 |
from US $0.79 |
||
|
92152
|
92152
92152-0134 COLLAR |
92152-0134 |
from US $4.12 |
||
|
92161
|
92161
92161-0041 DAMPER |
92161-0041 |
from US $2.85 |
||
|
92161A
|
92161A
92161-0356 DAMPER |
92161-0356 |
from US $14.10 |
||
|
92171
|
92171
92171-1539 CLAMP |
92171-1539 |
from US $1.43 |
||
