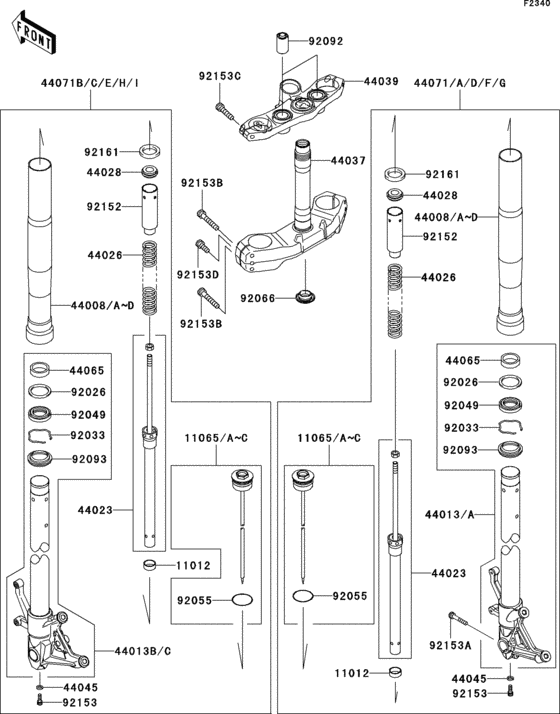

Front fork(1/2) Diagram Kawasaki ZR1000 Z1000 ABS
- Year
- 2009
- Model code
- ZR1000C9F
- Sales region
- Europe (General)
- Engine Capacity
- 1000
- Model
- Z1000 ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1761 CAP |
11012-1761 |
from US $24.09 |
||
|
11065B
|
11065B
11065-0172-499 CAP,FORK BOLT COMP,A. |
11065-0172-499 |
US $53.34 |
||
|
11065C
|
11065C
11065-0172-828
CAP,FORK BOLT COMP,GO
|
11065-0172-828 |
— | ||
|
44008C
|
44008C
44008-0048-499 PIPE-FORK OUTER,A.BLA |
44008-0048-499 |
from US $407.97 |
||
|
44008D
|
44008D
44008-0048-828 PIPE-FORK OUTER,K.GOL |
44008-0048-828 |
from US $471.21 |
||
|
44013
|
44013
44013-0067-10T PIPE-FORK INNER,RH,F. |
44013-0067-10T |
from US $415.58 |
||
|
44013A
|
44013A
44013-0067-11E PIPE-FORK INNER,RH,F. |
44013-0067-11E |
from US $417.85 |
||
|
44013B
|
44013B
44013-0077-10T Pipe-fork inner,lh,f.p.silver |
44013-0077-10T |
US $397.51 |
||
|
44013C
|
44013C
44013-0077-11E Pipe-fork inner,lh,f.s.bl |
44013-0077-11E |
US $397.51 |
||
|
44023
|
44023
44023-0059 CYLINDER-SET-FORK |
44023-0059 |
from US $447.97 |
||
|
44026
|
44026
44026-0098 SPRING-FRONT FORK |
44026-0098 |
from US $85.14 |
||
|
44028
|
44028
44028-1083 GUIDE-FORK SPRING |
44028-1083 |
from US $7.92 |
||
|
44037
|
44037
44037-0058-11E HOLDER-FORK UNDER,F.S |
44037-0058-11E |
from US $610.67 |
||
|
44039
|
44039
44039-0055-11E HOLDER-FORK UPPER,F.S |
44039-0055-11E |
from US $316.97 |
||
|
44045
|
44045
44045051 GASKET,FORK CYL BOLT |
44045051 |
from US $4.59 |
||
|
44065
|
44065
44065-0001 BUSHING-FRONT FORK,GU |
44065-0001 |
from US $16.32 |
||
|
44071F
|
44071F
44071-5087 DAMPER-ASSY,FORK,RH,B |
44071-5087 |
from US $928.78 |
||
|
44071G
|
44071G
44071-5089 DAMPER-ASSY,FORK,RH,G |
44071-5089 |
from US $928.78 |
||
|
44071H
|
44071H
44071-5090 Damper-assy,fork,lh,black |
44071-5090 |
US $882.73 |
||
|
44071I
|
44071I
44071-5091 Damper-assy,fork,lh,gold |
44071-5091 |
US $882.73 |
||
|
92026
|
92026
92026-1276 SPACER,FORK OUTER |
92026-1276 |
from US $6.34 |
||
|
92033
|
92033
92033-1222 RING-SNAP,FORK OUTER |
92033-1222 |
from US $4.61 |
||
|
92049
|
92049
92049-0058 SEAL-OIL |
92049-0058 |
from US $15.05 |
||
|
92055
|
92055
92055-0142 RING-O |
92055-0142 |
from US $1.90 |
||
|
92066
|
92066
92066-0032 PLUG |
92066-0032 |
from US $7.13 |
||
|
92092
|
92092
92092-1090 BUSHING-RUBBER |
92092-1090 |
from US $4.75 |
||
|
92093
|
92093
92093-0035 SEAL,DUST |
92093-0035 |
from US $14.26 |
||
|
92152
|
92152
92152-0263 COLLAR |
92152-0263 |
from US $9.03 |
||
|
92153
|
92153
92153-0028 BOLT |
92153-0028 |
from US $4.75 |
||
|
92153A
|
92153A
92153-0533 BOLT |
92153-0533 |
from US $6.34 |
||
|
92153B
|
92153B
92153-0537 BOLT,SOCKET |
92153-0537 |
from US $6.02 |
||
|
92153C
|
92153C
92153-0855 BOLT |
92153-0855 |
from US $3.01 |
||
|
92153D
|
92153D
92153-1824 BOLT,SOCKET |
92153-1824 |
from US $6.81 |
||
|
92161
|
92161
92161-0418 DAMPER |
92161-0418 |
from US $4.12 |
