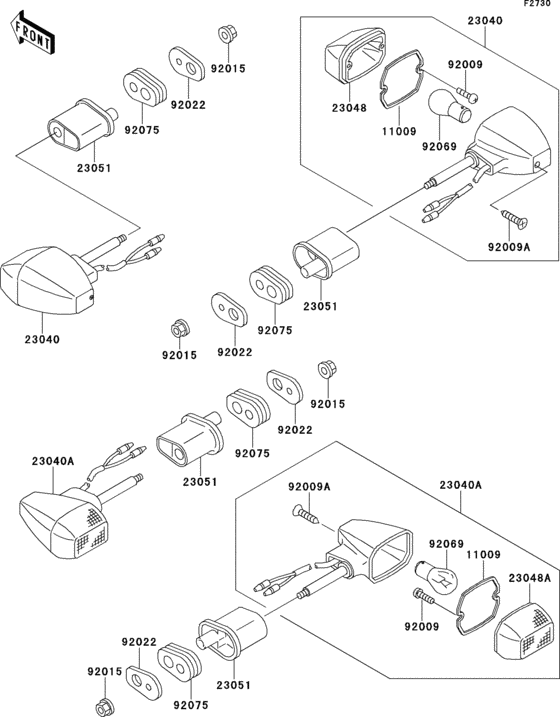

Turn signals Diagram Kawasaki ZR1100 ZRX1100
- Year
- 2000
- Model code
- ZR1100-C4
- Sales region
- General
- Engine Capacity
- 1100
- Model
- ZRX1100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1402 GASKET,SIGNAL LAMP |
11009-1402 |
from US $4.12 |
||
|
23040
|
23040
23040-1270
Lamp-signal,fr
|
23040-1270 |
— | ||
|
23040A
|
23040A
23040-1271 Lamp-signal,rr |
23040-1271 |
US $50.21 |
||
|
23048
|
23048
23048-1054 LENS-SIGNAL LAMP |
23048-1054 |
from US $10.90 |
||
|
23048A
|
23048A
23048-1055 LENS-SIGNAL LAMP |
23048-1055 |
from US $10.34 |
||
|
23051
|
23051
23051-1248 BRACKET-SIGNAL LAMP |
23051-1248 |
from US $8.71 |
||
|
92009
|
92009
92009-1115 SCREW,TAPPING,3X16 |
92009-1115 |
from US $2.28 |
||
|
92009A
|
92009A
92009-1304 SCREW,4X20 |
92009-1304 |
from US $3.33 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-1672 WASHER,SIGNAL LAMP |
92022-1672 |
from US $3.64 |
||
|
92075
|
92075
92075-1698 DAMPER,SIGNAL LAMP |
92075-1698 |
from US $6.65 |
