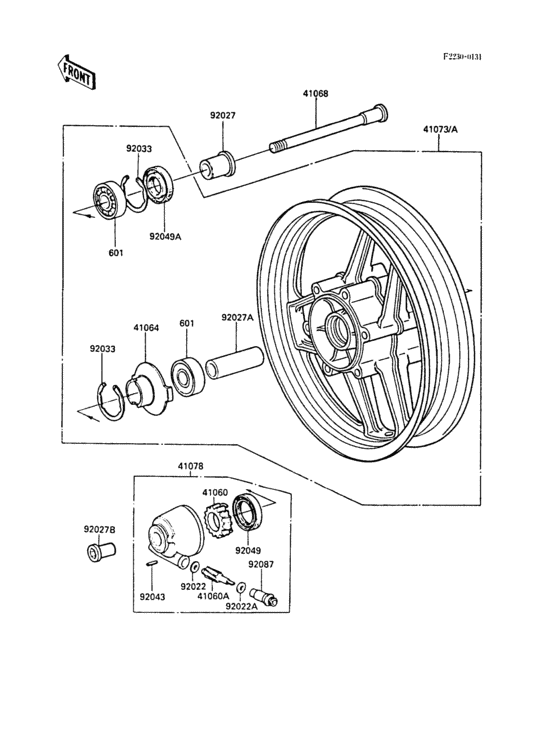

Front hub Diagram Kawasaki ZX600 GPZ600R
- Year
- 1987
- Colour
- Firecracker Red/Pearl Cosmic Gray (X5)
- Model code
- ZX600-A3
- Sales region
- Switzerland
- Engine Capacity
- 600
- Model
- GPZ600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601B6302UG BEARING-BALL |
601B6302UG |
US $22.43 |
||
| replacement | |||||
|
601
|
601
601B6302U BEARING-BALL |
601B6302U |
from US $22.89 |
||
|
41060
|
41060
41060-1025 GEAR-METER SCREW,24T |
41060-1025 |
from US $17.03 |
||
|
41060A
|
41060A
41060-1035 GEAR-METER SCREW,9T |
41060-1035 |
from US $13.66 |
||
|
41064
|
41064
41064-1006 RECEIVER,SPEEDOMETER |
41064-1006 |
from US $10.30 |
||
|
41068
|
41068
41068-1164 AXLE,FR |
41068-1164 |
from US $49.54 |
||
|
41073A
|
41073A
41073-1340-T6 WHEEL-ASSY,FR,WHITE N |
41073-1340-T6 |
US $778.54 |
||
| replacement | |||||
|
41073A
|
41073A
41073-1299-T6
WHEEL-ASSY,FR,WHITE N
|
41073-1299-T6 |
— | ||
|
41078
|
41078
41078-1057 CASE-ASSY-METER GEAR |
41078-1057 |
from US $89.31 |
||
|
92022
|
92022
41063001 WASHER THRST SPD PINI |
41063001 |
from US $3.17 |
||
|
92022A
|
92022A
92022-1062 WASHER THRST SPD PINI |
92022-1062 |
US $3.60 |
||
| replacement | |||||
|
92022A
|
92022A
41063001 WASHER THRST SPD PINI |
41063001 |
from US $3.17 |
||
|
92027
|
92027
92027-1225 COLLAR,FR AXLE L=30MM |
92027-1225 |
from US $12.36 |
||
|
92027A
|
92027A
92027-1725 COLLAR,L=70 |
92027-1725 |
from US $10.30 |
||
|
92027B
|
92027B
92027-1726 COLLAR,&NUT,FR AXLE,L |
92027-1726 |
from US $18.69 |
||
|
92033
|
92033
92033-1041 CIRCLIP,42MM |
92033-1041 |
from US $3.48 |
||
|
92043
|
92043
41082001 PIN,SPRING |
41082001 |
from US $3.01 |
||
|
92049
|
92049
92049-1057 OIL SEAL,BJN30427-C3 |
92049-1057 |
from US $8.86 |
||
|
92049A
|
92049A
92049-1058 OIL SEAL,AG1144AO |
92049-1058 |
from US $8.40 |
||
|
92087
|
92087
92087-1002 BUSHING,METER GEAR |
92087-1002 |
from US $16.16 |
||
