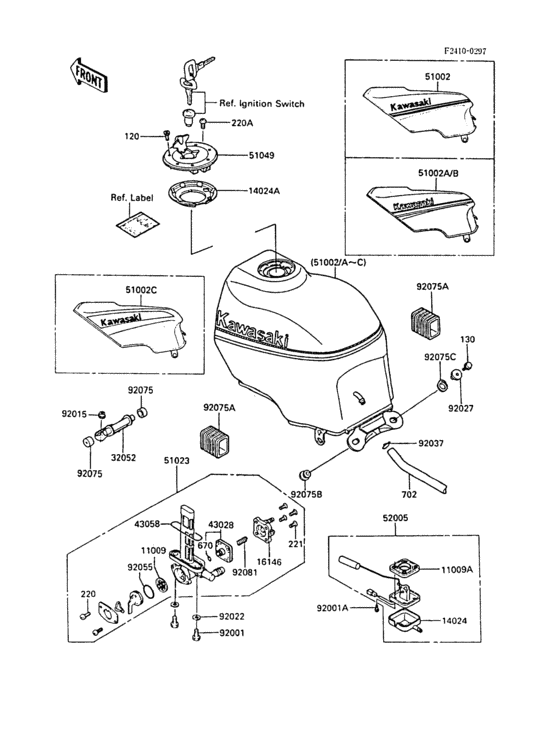

Fuel tank(1/2) Diagram Kawasaki ZX600 GPZ600R
- Year
- 1987
- Colour
- Firecracker Red/Pearl Cosmic Gray (X5)
- Model code
- ZX600-A3
- Sales region
- Switzerland
- Engine Capacity
- 600
- Model
- GPZ600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0512
BOLT-SOCKET,5X12
|
120S0512 |
— | ||
| replacement | |||||
|
120
|
120
120CB0512 BOLT-SOCKET,5X12 |
120CB0512 |
from US $0.95 |
||
|
130
|
130
130C0625 BOLT-FLANGED,6X25 |
130C0625 |
US $22.10 |
||
| replacement | |||||
|
130
|
130
130BB0625 BOLT-FLANGED,6X25 |
130BB0625 |
from US $1.61 |
||
|
220
|
220
220B0308
SCREW PAN HEAD 3X8
|
220B0308 |
— | ||
| replacement | |||||
|
220
|
220
220AA0308 SCREW-PAN-CROS |
220AA0308 |
from US $0.79 |
||
|
220A
|
220A
220C0508
SCREW-PAN-CROS
|
220C0508 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0508 SCREW-PAN-CROS |
220AB0508 |
from US $0.88 |
||
|
221
|
221
221B0414
SCREW-CSK-CROS,4X14
|
221B0414 |
— | ||
| replacement | |||||
|
221
|
221
221AA0414 SCREW-CSK-CROS,4X14 |
221AA0414 |
from US $0.79 |
||
|
670
|
670
670B1504 O RING,4MM |
670B1504 |
from US $2.53 |
||
|
702
|
702
702A07640 TUBE-BREATHER (BULK) |
702A07640 |
US $60.65 |
||
| replacements | |||||
|
702
|
702
702A071000 TUBE-BREATHER (BULK) |
702A071000 |
from US $11.40 |
||
|
702
|
702
702A07720 TUBE-BREATHER (BULK) |
702A07720 |
US $12.13 |
||
|
702
|
702
702A07860
TUBE-BREATHER (BULK)
|
702A07860 |
— | ||
|
11009
|
11009
11009-1188
GASKET,FUEL TAP
|
11009-1188 |
— | ||
| replacement | |||||
|
11009
|
11009
43049-1103 PACKING |
43049-1103 |
from US $4.09 |
||
|
11009A
|
11009A
11009-1656
GASKET,FUEL GAUGE
|
11009-1656 |
— | ||
| replacement | |||||
|
11009A
|
11009A
11061-0292 GASKET,FUEL GAUGE,W/B |
11061-0292 |
from US $11.98 |
||
|
14024
|
14024
14025-1536
COVER,FUEL GAUGE
|
14025-1536 |
— | ||
| replacement | |||||
|
14024
|
14024
14090-1624 COVER,FUEL GAUGE |
14090-1624 |
from US $12.67 |
||
|
14024A
|
14024A
14025-1913 COVER |
14025-1913 |
from US $16.47 |
||
|
16146
|
16146
16146-1009 COVER ASSY,FUEL TAP |
16146-1009 |
from US $15.44 |
||
|
32052
|
32052
32052-1202 BRACKET-TANK |
32052-1202 |
from US $34.36 |
||
|
43028
|
43028
43028-1033 DIAPHRAGM |
43028-1033 |
from US $16.16 |
||
|
43058
|
43058
51039003 O RING |
51039003 |
from US $4.59 |
||
|
51002A
|
51002A
51002-5306-X5
TANK-COMP-FUEL,RED/GR
|
51002-5306-X5 |
— | ||
|
51023
|
51023
51023-1044 Fuel Tap |
51023-1044 |
US $71.64 |
||
| replacements | |||||
|
51023
|
51023
51023-1384 Fuel Tap |
51023-1384 |
from US $79 |
||
|
51023
|
51023
51023-1186
Tap-assy,fuel
|
51023-1186 |
— | ||
|
51023
|
51023
51023-1298 TAP-ASSY,FUEL |
51023-1298 |
US $115.13 |
||
|
51049
|
51049
51049-1080
CAP-TANK,FUEL
|
51049-1080 |
— | ||
| replacement | |||||
|
51049
|
51049
51049-0022 CAP-TANK,FUEL |
51049-0022 |
from US $77.92 |
||
|
52005
|
52005
52005-1071
GAUGE,FUEL
|
52005-1071 |
— | ||
| replacement | |||||
|
52005
|
52005
52005-5018
GAUGE,FUEL
|
52005-5018 |
— | ||
|
92001
|
92001
92001-1091 BOLT,6X20,FUEL TAP |
92001-1091 |
from US $2.53 |
||
|
92001A
|
92001A
92001-1705
BOLT,FUEL GAGE
|
92001-1705 |
— | ||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-183 WASHER-PLAIN |
92022-183 |
from US $2.53 |
||
|
92027
|
92027
92027-251
COLLAR
|
92027-251 |
— | ||
| replacement | |||||
|
92027
|
92027
92152-0365 COLLAR |
92152-0365 |
from US $0.91 |
||
|
92037
|
92037
92037-010 CLAMP FUEL PIPE |
92037-010 |
from US $2.69 |
||
|
92055
|
92055
92055-1085 0 RING,FUEL TAP LEV |
92055-1085 |
from US $3.01 |
||
|
92075
|
92075
92075-1115 DAMPER,FUEL TANK,FRON |
92075-1115 |
from US $4.80 |
||
|
92075A
|
92075A
92075-1700 DAMPER,FUEL TANK |
92075-1700 |
from US $12.85 |
||
|
92075B
|
92075B
92075-174 RUBBER,FENDER COVER |
92075-174 |
from US $3.48 |
||
|
92075C
|
92075C
92075-175 DAMPER RUBBER |
92075-175 |
from US $3.33 |
||
|
92081
|
92081
92081-1240 SPRING,DIAPHRAGM VALV |
92081-1240 |
from US $2.69 |
||
