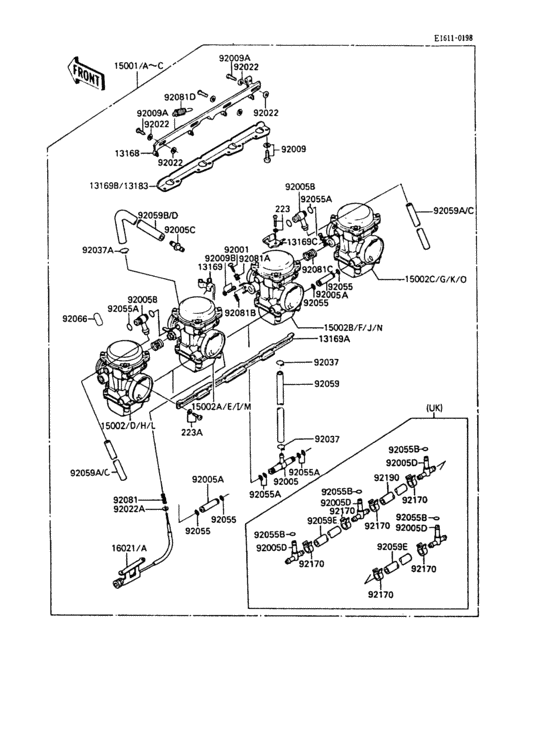

Carburetor(1/3) Diagram Kawasaki ZX600 GPZ600R
- Year
- 1989
- Colour
- Luminous Polaris Blue / Pearl Alpine White (S3)
- Model code
- ZX600-A5A
- Sales region
- Switzerland
- Engine Capacity
- 600
- Model
- GPZ600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223C0420 SCREW-PAN-WS-CROS |
223C0420 |
from US $1.27 |
||
| replacement | |||||
|
223
|
223
223AB0420 SCREW-PAN-WS-CROS |
223AB0420 |
from US $1.27 |
||
|
223A
|
223A
223C0510
SCREW-PAN-WS-CROS
|
223C0510 |
— | ||
| replacement | |||||
|
223A
|
223A
223AB0510 SCREW-PAN-WS-CROS |
223AB0510 |
from US $0.95 |
||
|
13168
|
13168
13168-1280 LEVER,STARTER |
13168-1280 |
from US $76.74 |
||
|
13169
|
13169
13169-1962 PLATE,THROTTLE CABLE |
13169-1962 |
from US $46.17 |
||
|
13169A
|
13169A
13169-1963 PLATE,CARBURETOR STAY |
13169-1963 |
from US $84.94 |
||
|
13169B
|
13169B
13169-1964 PLATE,CARBURETOR STAY |
13169-1964 |
from US $85.87 |
||
|
13169C
|
13169C
13169-1965 PLATE,STARTER CABLE |
13169-1965 |
from US $26.78 |
||
|
15001B
|
15001B
15001-1531
Carburetor-assy
|
15001-1531 |
— | ||
|
15002
|
15002
15002-1553
Carburetor,lh,outside
|
15002-1553 |
— | ||
|
15002A
|
15002A
15002-1554
Carburetor,lh,inside
|
15002-1554 |
— | ||
|
15002B
|
15002B
15002-1555
Carburetor,rh,inside
|
15002-1555 |
— | ||
|
15002C
|
15002C
15002-1556
Carburetor,rh,outside
|
15002-1556 |
— | ||
|
16021
|
16021
16021-1114 SCREW-THROTTLE STOP |
16021-1114 |
from US $85.87 |
||
|
92001
|
92001
92001-1998 BOLT,THROTTLE ADJUST |
92001-1998 |
from US $10.30 |
||
|
92005
|
92005
92005-1108 FITTING,FUEL,T-TYPE |
92005-1108 |
from US $19.11 |
||
|
92005A
|
92005A
92005-1109
FITTING
|
92005-1109 |
— | ||
| replacement | |||||
|
92005A
|
92005A
92005-1310 FITTING |
92005-1310 |
from US $21.99 |
||
|
92005B
|
92005B
92005-1125 FITTING,T-TYPE |
92005-1125 |
from US $17.27 |
||
|
92005C
|
92005C
92005-1167 FITTING |
92005-1167 |
from US $2.92 |
||
|
92009
|
92009
92009-1129
SCREW-PAN-WS-CROS,6X1
|
92009-1129 |
— | ||
| replacement | |||||
|
92009
|
92009
223AA0616 SCREW-PAN-WS-CROS,6X1 |
223AA0616 |
from US $1.24 |
||
|
92009A
|
92009A
92009-1262 SCREW |
92009-1262 |
from US $3.96 |
||
|
92022
|
92022
92022-1199 WASHER,6.1X11X0.8,POL |
92022-1199 |
from US $3.90 |
||
|
92022A
|
92022A
92022-1480 WASHER,PLAIN,STOP SPR |
92022-1480 |
from US $3.01 |
||
|
92037
|
92037
92037-1075 CLAMP,FUEL INLET TUBE |
92037-1075 |
from US $2.69 |
||
|
92037A
|
92037A
92037-1477
CLAMP,TUBE,OVERFLOW
|
92037-1477 |
— | ||
| replacement | |||||
|
92037A
|
92037A
92037-1142 CLAMP,TUBE,OVERFLOW |
92037-1142 |
from US $2.85 |
||
|
92055
|
92055
92055-1004 O RING |
92055-1004 |
from US $3.37 |
||
|
92055A
|
92055A
92055-1223 RING-O,FUEL FITTING |
92055-1223 |
from US $3.90 |
||
|
92059
|
92059
92059-1236
TUBE,7.3X12.5X400
|
92059-1236 |
— | ||
| replacement | |||||
|
92059
|
92059
92190-1063 TUBE,7.3X12.5X400 |
92190-1063 |
from US $22.74 |
||
|
92059A
|
92059A
92059-1376 TUBE,6.5X9.5X500 |
92059-1376 |
US $25.61 |
||
| replacement | |||||
|
92059A
|
92059A
92059-1465 TUBE,6.5X9.5X500 |
92059-1465 |
from US $20.50 |
||
|
92059B
|
92059B
92059-1378 TUBE,5X9X320 |
92059-1378 |
US $20.72 |
||
| replacement | |||||
|
92059B
|
92059B
92059-1626 TUBE,5X9X320 |
92059-1626 |
from US $16.79 |
||
|
92059C
|
92059C
92059-1861 TUBE,6.5X9.5X320 |
92059-1861 |
from US $10.43 |
||
|
92059D
|
92059D
92059-1862 TUBE,5X9X340 |
92059-1862 |
US $16.61 |
||
|
92066
|
92066
92068-006 RUBBER PLUG |
92068-006 |
from US $2.85 |
||
|
92081
|
92081
92081-1617 SPRING,THROTTLE STOP |
92081-1617 |
from US $4.80 |
||
|
92081A
|
92081A
92081-1620 SPRING,THROTTLE ADJUS |
92081-1620 |
from US $3.17 |
||
|
92081B
|
92081B
92081-1621 SPRING,THROTTLE ADJUS |
92081-1621 |
from US $3.64 |
||
|
92081C
|
92081C
92081-1622 SPRING,THROTTLE ADJUS |
92081-1622 |
from US $7.60 |
||
|
92081D
|
92081D
92081-1913 SPRING,STARTER LEVER |
92081-1913 |
from US $15.05 |
||
