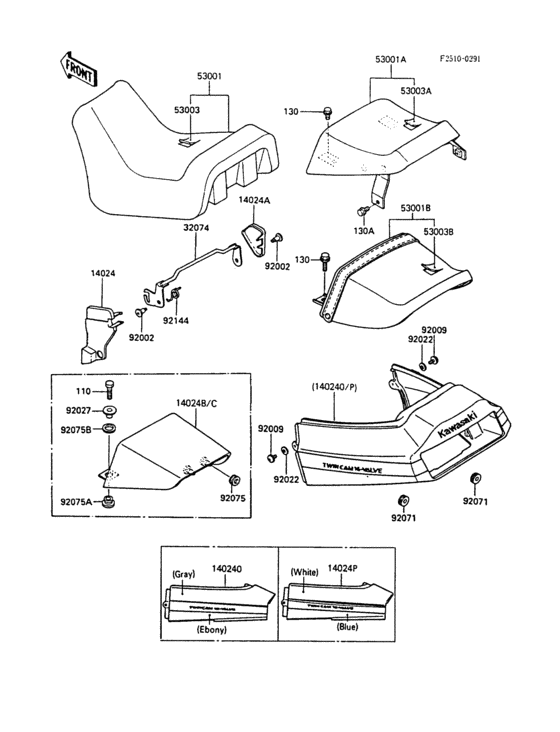

Seat(1/2) Diagram Kawasaki ZX600 GPZ600R
- Year
- 1989
- Colour
- Luminous Polaris Blue / Pearl Alpine White (S3)
- Model code
- ZX600-A5A
- Sales region
- Switzerland
- Engine Capacity
- 600
- Model
- GPZ600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110B0620 BOLT-UPSET |
110B0620 |
US $11 |
||
| replacement | |||||
|
110
|
110
112BA0620 BOLT-UPSET |
112BA0620 |
from US $0.95 |
||
|
130
|
130
130B0614 BOLT |
130B0614 |
US $0.68 |
||
| replacements | |||||
|
130
|
130
130AA0614 BOLT-FLANGED |
130AA0614 |
from US $0.82 |
||
|
130
|
130
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
130A
|
130A
130B0814 BOLT-FLANGED |
130B0814 |
US $0.72 |
||
| replacements | |||||
|
130A
|
130A
130BA0814 BOLT-FLANGED,8X14 |
130BA0814 |
from US $0.95 |
||
|
130A
|
130A
130AA0814 BOLT-FLANGED |
130AA0814 |
from US $0.40 |
||
|
14024
|
14024
14024-1051 COVER,SEAT LOCK,LH |
14024-1051 |
from US $10.91 |
||
|
14024A
|
14024A
14024-1052 COVER,SEAT LOCK,RH |
14024-1052 |
from US $6.05 |
||
|
14024B
|
14024B
14024-1081-R1 COVER,FRONT SEAT,P.A. |
14024-1081-R1 |
US $233.59 |
||
|
14024P
|
14024P
14025-5285-S3
Cover,seat,blue/white
|
14025-5285-S3 |
— | ||
|
32074
|
32074
32074-1113 BRACKET-LOCK,SEAT |
32074-1113 |
from US $36.99 |
||
|
53001
|
53001
53001-1415-MA SEAT-ASSY,FR,BLACK |
53001-1415-MA |
from US $210.29 |
||
|
53001A
|
53001A
53001-1416-MA SEAT-ASSY,RR,BLACK |
53001-1416-MA |
US $190.80 |
||
|
53003
|
53003
53003-1130-MA Leather,front seat,bl |
53003-1130-MA |
US $135.24 |
||
|
53003A
|
53003A
53003-1131-MA LEATHER,REAR SEAT BLA |
53003-1131-MA |
US $79.81 |
||
|
92002
|
92002
92002-1616 BOLT |
92002-1616 |
from US $8.08 |
||
|
92009
|
92009
92009-1288
SCREW
|
92009-1288 |
— | ||
| replacements | |||||
|
92009
|
92009
92009-1662 SCREW |
92009-1662 |
from US $2.53 |
||
|
92009
|
92009
92172-0004 SCREW,6X14 |
92172-0004 |
from US $1.27 |
||
|
92022
|
92022
92022-1654 WASHER,6.5X16X1.0 |
92022-1654 |
from US $3.20 |
||
|
92027
|
92027
92027-251
COLLAR
|
92027-251 |
— | ||
| replacement | |||||
|
92027
|
92027
92152-0365 COLLAR |
92152-0365 |
from US $0.91 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92075
|
92075
92075-1629 DAMPER |
92075-1629 |
from US $3.90 |
||
|
92075A
|
92075A
92075-174 RUBBER,FENDER COVER |
92075-174 |
from US $3.48 |
||
|
92075B
|
92075B
92075-175 DAMPER RUBBER |
92075-175 |
from US $3.33 |
||
|
92144
|
92144
92144-1086 SPRING |
92144-1086 |
from US $4.16 |
||
