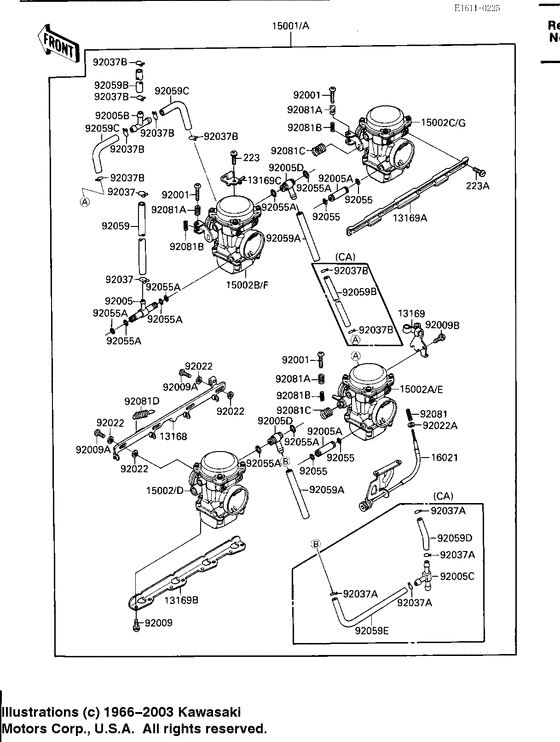

Carburetor assy Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223C0420 SCREW-PAN-WS-CROS |
223C0420 |
from US $1.27 |
||
| replacement | |||||
|
223
|
223
223AB0420 SCREW-PAN-WS-CROS |
223AB0420 |
from US $1.27 |
||
|
223A
|
223A
223C0510
SCREW-PAN-WS-CROS
|
223C0510 |
— | ||
| replacement | |||||
|
223A
|
223A
223AB0510 SCREW-PAN-WS-CROS |
223AB0510 |
from US $0.95 |
||
|
13168
|
13168
13168-1280 LEVER,STARTERLever,starter; |
13168-1280 |
from US $76.74 |
||
|
13169
|
13169
13169-1962 PLATE,THROTTLE CABLEPlate,throttle cable; |
13169-1962 |
from US $46.17 |
||
|
13169A
|
13169A
13169-1963 PLATE,CARBURETOR STAYPlate,carburetor stay; |
13169-1963 |
from US $84.94 |
||
|
13169B
|
13169B
13169-1964 PLATE,CARBURETOR STAYPlate,carburetor stay; |
13169-1964 |
from US $85.87 |
||
|
13169C
|
13169C
13169-1965 PLATE,STARTER CABLEPlate,starter cable; |
13169-1965 |
from US $26.78 |
||
|
15001
|
15001
15001-1153 CARBURETOR-ASSYUs |
15001-1153 |
US $1,612.91 |
||
|
15001A
|
15001A
15001-1154 CARBURETOR-ASSYCa |
15001-1154 |
US $1,612.91 |
||
|
15002
|
15002
15002-1229
CARBURETOR,LH,OUTSIDE
Carburetor,lh,outside; Ca |
15002-1229 |
— | ||
|
15002A
|
15002A
15002-1230
CARBURETOR,LH,INSIDE
Carburetor,lh,inside; Ca |
15002-1230 |
— | ||
|
15002B
|
15002B
15002-1231
CARBURETOR,RH,INSIDE
Carburetor,rh,inside; Ca |
15002-1231 |
— | ||
|
15002C
|
15002C
15002-1232
CARBURETOR,RH,OUTSIDE
Carburetor,rh,outside; Ca |
15002-1232 |
— | ||
|
15002D
|
15002D
15002-1233
CARBURETOR,LH,OUTSIDE
Carburetor,lh,outside; Us |
15002-1233 |
— | ||
|
15002E
|
15002E
15002-1234
CARBURETOR,LH,INSIDE
Carburetor,lh,inside; Us |
15002-1234 |
— | ||
|
15002F
|
15002F
15002-1235
CARBURETOR,RH,INSIDE
Carburetor,rh,inside; Us |
15002-1235 |
— | ||
|
15002G
|
15002G
15002-1236 CARBURETOR,RH,OUTSIDECarburetor,rh,outside; Us |
15002-1236 |
US $415.46 |
||
|
16021
|
16021
16021-1114 SCREW-THROTTLE STOP |
16021-1114 |
from US $85.87 |
||
|
92001
|
92001
92001-1998 BOLT,THROTTLE ADJUSTBolt,throttle adjust; |
92001-1998 |
from US $10.30 |
||
|
92005
|
92005
92005-1108 FITTING,FUEL,T-TYPEFitting,fuel,t-type; |
92005-1108 |
from US $19.11 |
||
|
92005A
|
92005A
92005-1109
FITTING
Fitting,fuel,i-type; |
92005-1109 |
— | ||
| replacement | |||||
|
92005A
|
92005A
92005-1310 FITTINGFitting,fuel,i-type; |
92005-1310 |
from US $21.99 |
||
|
92005B
|
92005B
92005-1112 FITTING,FUEL,T-TYPEFitting,fuel,t-type; Us |
92005-1112 |
from US $9.03 |
||
|
92005C
|
92005C
92005-1135 FITTING,T-TYPEFitting,t-type; Ca |
92005-1135 |
from US $13.54 |
||
|
92005D
|
92005D
92005-1125 FITTING,T-TYPEFitting,t-type; |
92005-1125 |
from US $17.27 |
||
|
92009
|
92009
92009-1129
SCREW-PAN-WS-CROS,6X1
Screw,6x16; |
92009-1129 |
— | ||
| replacement | |||||
|
92009
|
92009
223AA0616 SCREW-PAN-WS-CROS,6X1Screw,6x16; |
223AA0616 |
from US $1.24 |
||
|
92009A
|
92009A
92009-1262 SCREW |
92009-1262 |
from US $3.96 |
||
|
92009B
|
92009B
92009-1365 SCREW |
92009-1365 |
from US $3.96 |
||
|
92022
|
92022
92022-1199 WASHER,6.1X11X0.8,POLWasher,6.1x11x0.8,pol; |
92022-1199 |
from US $3.90 |
||
|
92022A
|
92022A
92022-1480 WASHER,PLAIN,STOP SPRWasher,plain,stop spr; |
92022-1480 |
from US $3.01 |
||
|
920237A
|
920237A
92037-1682 CLAMP,TUBEClamp,tube; Ca |
92037-1682 |
from US $3.27 |
||
|
92037
|
92037
92037-1075 CLAMP,FUEL INLET TUBEClamp,fuel inlet tube; |
92037-1075 |
from US $2.69 |
||
|
92037B
|
92037B
92037-1142 CLAMP,TUBE,OVERFLOWClamp,tube,overflow; Ca, ca |
92037-1142 |
from US $2.85 |
||
|
92055
|
92055
92055-1004 O RING"o" ring; Us |
92055-1004 |
from US $3.37 |
||
|
92055A
|
92055A
92055-1223 RING-O,FUEL FITTINGRing-o,fuel fitting; |
92055-1223 |
from US $3.90 |
||
|
92059
|
92059
92059-1236
TUBE,7.3X12.5X400
Tube,fuel; |
92059-1236 |
— | ||
| replacement | |||||
|
92059
|
92059
92190-1063 TUBE,7.3X12.5X400Tube,fuel; |
92190-1063 |
from US $22.74 |
||
|
92059A
|
92059A
92059-1376 TUBE,6.5X9.5X500Tube,6.5x9.5x290; Us |
92059-1376 |
US $25.61 |
||
| replacement | |||||
|
92059A
|
92059A
92059-1465 TUBE,6.5X9.5X500Tube,6.5x9.5x290; Us |
92059-1465 |
from US $20.50 |
||
|
92059B
|
92059B
92059-1378 TUBE,5X9X320Tube,5x9x150; |
92059-1378 |
US $20.72 |
||
| replacement | |||||
|
92059B
|
92059B
92059-1626 TUBE,5X9X320Tube,5x9x150; |
92059-1626 |
from US $16.79 |
||
|
92059C
|
92059C
92059-1627 TUBE,5X9X90Tube,5x9x90; Us |
92059-1627 |
from US $7.29 |
||
|
92059D
|
92059D
92059-1638 TUBE,7X11X90Tube,7x11x90; Ca |
92059-1638 |
from US $5.60 |
||
|
92059E
|
92059E
92059-1639 TUBE,7X11X300Tube,7x11x260; Ca |
92059-1639 |
US $23.56 |
||
| replacement | |||||
|
92059E
|
92059E
92059-1493 TUBE,7X11X300Tube,7x11x260; Ca |
92059-1493 |
from US $16.32 |
||
|
92081
|
92081
92081-1617 SPRING,THROTTLE STOPSpring,throttle stop; |
92081-1617 |
from US $4.80 |
||
|
92081A
|
92081A
92081-1620 SPRING,THROTTLE ADJUSSpring,throttle adjus; |
92081-1620 |
from US $3.17 |
||
|
92081B
|
92081B
92081-1621 SPRING,THROTTLE ADJUSSpring,throttle adjus; |
92081-1621 |
from US $3.64 |
||
|
92081C
|
92081C
92081-1622 SPRING,THROTTLE ADJUSSpring,throttle adjus; |
92081-1622 |
from US $7.60 |
||
|
92081D
|
92081D
92081-1913 SPRING,STARTER LEVERSpring,starter lever; |
92081-1913 |
from US $15.05 |
||
