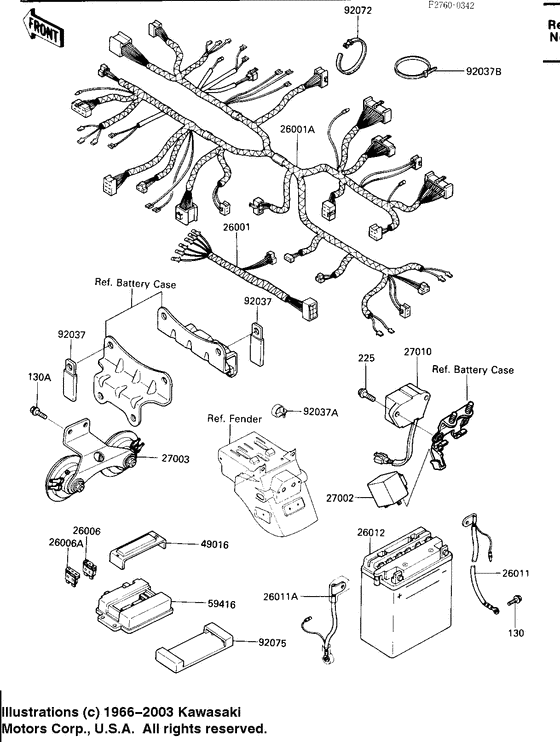

Chassis electrical equipment Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0608
BOLT-FLANGED
Bolt,flanged,6x8; |
130B0608 |
— | ||
| replacements | |||||
|
130
|
130
130AA0608 BOLT-FLANGEDBolt,flanged,6x8; |
130AA0608 |
from US $1.05 |
||
|
130
|
130
130BA0608 BOLT-FLANGEDBolt,flanged,6x8; |
130BA0608 |
from US $1 |
||
|
130A
|
130A
130C0612
BOLT-FLANGED,6X12
Bolt-flanged,6x12; |
130C0612 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB0612 BOLT-FLANGED,6X12Bolt-flanged,6x12; |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130AB0612 BOLT-FLANGED,6X12Bolt-flanged,6x12; |
130AB0612 |
from US $1.02 |
||
|
225
|
225
225B0620
SCREW-PAN-WSP-CROS
|
225B0620 |
— | ||
| replacement | |||||
|
225
|
225
225AA0620 SCREW-PAN-WSP-CROS |
225AA0620 |
from US $1.24 |
||
|
26001
|
26001
26001-1726 HARNESS |
26001-1726 |
from US $31.90 |
||
|
26001A
|
26001A
26001-1733
HARNESS,MAIN
Harness,main; |
26001-1733 |
— | ||
|
26006
|
26006
26006-1006 FUSE,BLADE,30A,GREENFuse,30a-g; |
26006-1006 |
from US $2.82 |
||
|
26006A
|
26006A
26006-1007 FUSE,BLADE,10A,REDFuse,10a-r; |
26006-1007 |
from US $3.33 |
||
|
26011
|
26011
26011-1195 WIRE-LEAD,BATTERY GROWire-lead,battery gro; |
26011-1195 |
US $21.39 |
||
|
26011A
|
26011A
26011-1315 WIRE-LEAD,BATTERY(+)Wire-lead,battery(+); |
26011-1315 |
from US $26.77 |
||
|
26012
|
26012
26012-1132
Battery
26012-1210 (canada); |
26012-1132 |
— | ||
| replacements | |||||
|
26012
|
26012
26012-1210
Battery,12v 12ah,fb12
26012-1210 (canada); |
26012-1210 |
— | ||
|
26012
|
26012
26012-1175
No longer available
26012-1210 (canada); |
26012-1175 |
— | ||
|
27002
|
27002
27002-1060 RELAY-ASSY,TURN SIGNALRelay-assy,turn signa; |
27002-1060 |
from US $86.92 |
||
|
27003
|
27003
27003-1259 HORN,DOUBLEHorn,double; |
27003-1259 |
from US $179.42 |
||
|
27010
|
27010
27010-1069
SWITCH,RESERV LIGHTIN
Switch,reserve lighti; |
27010-1069 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-1066 SWITCH,RESERV LIGHTINSwitch,reserve lighti; |
27010-1066 |
from US $142.46 |
||
|
49016
|
49016
49016-1106 COVER-SEAL,FUSECover-seal,fuse; |
49016-1106 |
from US $8.03 |
||
| replacement | |||||
|
49016
|
49016
49016-0658 Cover-Seal,fuseCover-seal,fuse; |
49016-0658 |
US $8.03 |
||
|
59416
|
59416
59416-1052 CASE-ELECTRIC,FUSE &Case-electric,fuse &; |
59416-1052 |
from US $134.84 |
||
|
92037
|
92037
92037-1069
CLAMP
Clamp,wiring harness; |
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMPClamp,wiring harness; |
92171-0652 |
from US $1.27 |
||
|
92037A
|
92037A
92037-1163 CLAMPL=58 |
92037-1163 |
from US $3.96 |
||
|
92037B
|
92037B
92037-1576 CLAMP,HARNESSClamp,harness; |
92037-1576 |
from US $7.07 |
||
|
92072
|
92072
92072-030 BAND,SHORTBand,short; |
92072-030 |
from US $3.01 |
||
|
92075
|
92075
92075-1688 DAMPER,JUNCTION BOXDamper,fuse & relay b; |
92075-1688 |
from US $9.03 |
||
