	Description	OEM Part #	Price
601	601 92045-1235 BEARING-BALL (12X28X8)	92045-1235	from US $16.42
13081	13081 13081-1198 CLUTCH-ASSY	13081-1198	—
13087	13087 13087-1067 Hub-clutch	13087-1067	—
	replacement
13087	13087 13087-1162 Hub-clutch	13087-1162	from US $97.84
13088	13088 13088-040 PLATE,CLUTCH FRICTION Plate,clutch friction;	13088-040	from US $12.94
13089	13089 13089026 PLATE,CLUTCH STEEL Plate,clutch steel;	13089026	from US $12.36
13095	13095 13095-1128 HOUSING-COMP-CLUTCH	13095-1128	US $453.82
13102	13102 13102-1072 RELEASE-COMP-CLUTCH	13102-1072	US $51.61
13187	13187 13187-1012 PLATE-CLUTCH OPERATIN Plate-clutch operatin;	13187-1012	—
	replacement
13187	13187 13187-1087 PLATE-CLUTCH OPERATIN Plate-clutch operatin;	13187-1087	from US $56.70
46102	46102 46102-1146 ROD,CLUTCH Rod,clutch;	46102-1146	US $23.62
92001	92001 92001-1066 BOLT,CLUTCH SPR FITT Bolt,clutch spr fitt;	92001-1066	from US $4.25
92002	92002 92002-1356 BOLT	92002-1356	from US $3.48
92015	92015 92015-1555 NUT,20MM Nut,20mm;	92015-1555	from US $9.56
92022	92022 92022-1116 WASHER,PLAIN,2.3X20.3 Washer,plain,2.3x20.3;	92022-1116	from US $5.39
92022A	92022A 92022-304 WASHER,PLAIN Washer,plain;	92022-304	from US $2.53
92026	92026 92026-022 WASHER TH 25.5X47X2.5 Washer th 25.5x47x2.5;	92026-022	from US $7.98
92026A	92026A 92026-116 SPACER,THRUST,T=5.5MM Spacer,thrust,t=5.5mm;	92026-116	from US $11.09
92028	92028 92028-178 BUSHING,CLUTCH Bushing,clutch;	92028-178	from US $18.95
92046	92046 92046-028 BEARING,KTV323723 Bearing,ktv323723;	92046-028	from US $19.17
92081	92081 92081-139 SPRING,CLUTCH Spring,clutch;	92081-139	from US $5.54

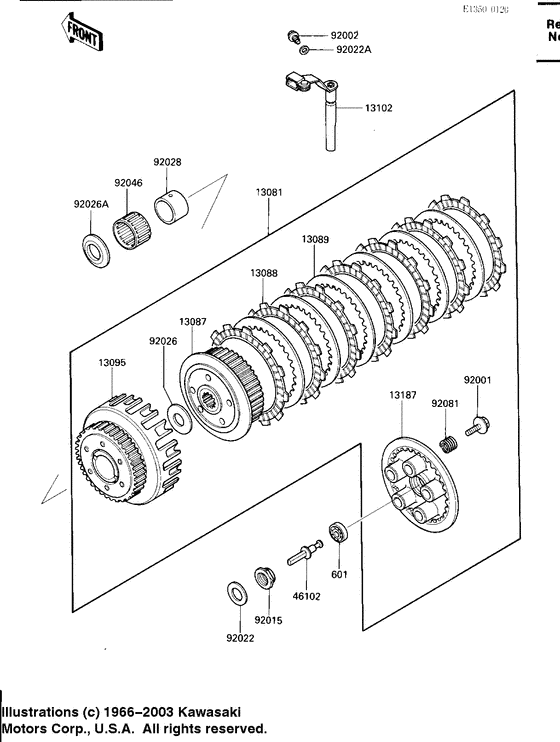

Clutch Diagram Kawasaki ZX600 Ninja 600RX USA 10420679-684004

Clutch Diagram Kawasaki ZX600 Ninja 600RX USA 10420679-684004
