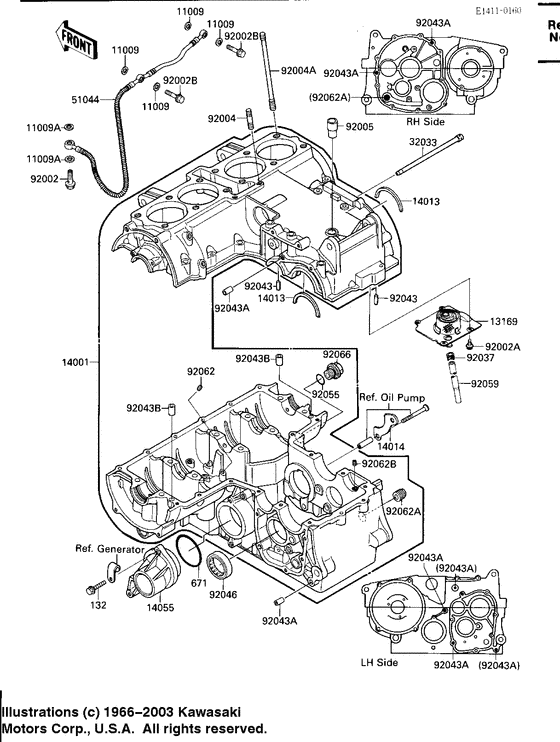

Crankcase Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0625
BOLT-FLANGED-SMALL,6X
|
132J0625 |
— | ||
| replacement | |||||
|
132
|
132
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
671
|
671
671B2555 0 RING,55MM"0" ring,55mm; |
671B2555 |
from US $3.48 |
||
|
11009
|
11009
11009-1344 GASKET,OIL PIPE,8.2X1Gasket,oil pipe,8.2x1; |
11009-1344 |
from US $3.33 |
||
|
11009A
|
11009A
11009-1376 GASKET,12.4X17X1.5Gasket,12.4x17x1.5; |
11009-1376 |
from US $2.41 |
||
|
13169
|
13169
13169-1966
PLATE,BREATHER
Plate,breather; |
13169-1966 |
— | ||
|
14001
|
14001
14001-5192 SET-CRANKCASE |
14001-5192 |
US $1,494.36 |
||
| replacement | |||||
|
14001
|
14001
14001-5217
SET-CRANKCASE
|
14001-5217 |
— | ||
|
14013
|
14013
14013-004 RING BEARING SETTINGRing bearing setting; |
14013-004 |
from US $7.44 |
||
|
14014
|
14014
14014-1006 PLATE,POSITIONPlate,position; |
14014-1006 |
from US $8.40 |
||
|
14055
|
14055
14055-1078 CASE-GEAR |
14055-1078 |
from US $72.90 |
||
|
32033
|
32033
32033-1858 PIPE,OILPipe,oil; |
32033-1858 |
from US $21.06 |
||
|
51044
|
51044
51044-1071
TUBE-ASSY,OIL
|
51044-1071 |
— | ||
| replacement | |||||
|
51044
|
51044
51044-1168 TUBE-ASSY,OIL |
51044-1168 |
from US $213.93 |
||
|
92002
|
92002
92001-1871
BOLT,BANJO 12X27
Bolt,banjo,12x23; |
92001-1871 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-1976 BOLT,BANJO 12X27Bolt,banjo,12x23; |
92153-1976 |
from US $9.03 |
||
|
92002A
|
92002A
92002-1449 BOLT,6X10Bolt,6x10; |
92002-1449 |
from US $3 |
||
|
92002B
|
92002B
92002-1858 BOLT |
92002-1858 |
from US $7.36 |
||
|
92004
|
92004
92004-059 STUD |
92004-059 |
from US $3.80 |
||
|
92004A
|
92004A
92004-1161 STUD |
92004-1161 |
US $9.66 |
||
|
92005
|
92005
92005-1129
FITTING,BREATHER
Fitting,breather; |
92005-1129 |
— | ||
|
92037
|
92037
92037-1181 CLAMP |
92037-1181 |
from US $3 |
||
|
92043
|
92043
92042-016
PIN DOWEL 6MM
Pin dowel 6mm; |
92042-016 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-1690 PIN,6X16Pin dowel 6mm; |
92043-1690 |
from US $2.85 |
||
|
92043A
|
92043A
92043-1263 PIN,6.2X8X14Pin,dowel,6.2x8x14; |
92043-1263 |
from US $0.75 |
||
|
92043B
|
92043B
92043-1264 PIN,DOWEL,8.2X10X14Pin,dowel,8.2x10x14; |
92043-1264 |
from US $1 |
||
|
92046
|
92046
92046-051 BRG,NEDL,37BTM4312Brg,nedl,37btm4312; |
92046-051 |
from US $19.80 |
||
|
92055
|
92055
92055-1146 RING-O |
92055-1146 |
from US $6.57 |
||
|
92059
|
92059
92059-1544 TUBE |
92059-1544 |
from US $15.53 |
||
|
92062
|
92062
92062-011
NOZZLE
Nozzle,oil bias; |
92062-011 |
— | ||
| replacement | |||||
|
92062
|
92062
92062-1079 NOZZLENozzle,oil bias; |
92062-1079 |
from US $5.54 |
||
|
92062A
|
92062A
92062-014 NOZZLE |
92062-014 |
from US $6.18 |
||
|
92062B
|
92062B
92062-015
NOZZLE
|
92062-015 |
— | ||
| replacement | |||||
|
92062B
|
92062B
92062-1081 NOZZLE |
92062-1081 |
from US $3.96 |
||
|
92066
|
92066
92066-1096 PLUG,MAIN GALLARY,18XPlug,main gallary,18x; |
92066-1096 |
from US $7.29 |
||
