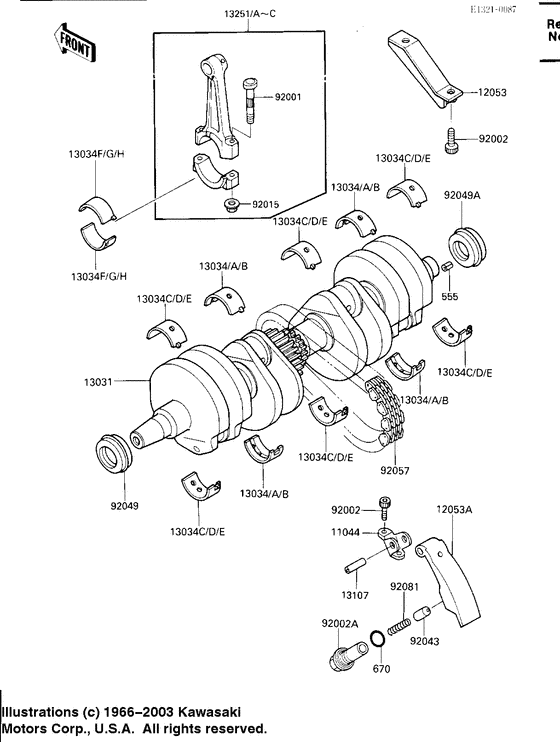

Crankshaft Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
555
|
555
555A0408 PIN-SPRING,4X8Pin-spring,4x8; |
555A0408 |
from US $2.38 |
||
|
670
|
670
670B2016 O RING,16MM"0" ring,16mm; |
670B2016 |
from US $1.70 |
||
|
11044
|
11044
11044-1075 BRACKET,CHAIN GUIDEBracket,chain guide; |
11044-1075 |
from US $4.52 |
||
|
12053
|
12053
12053-1156 GUIDE-CHAIN,UPPGuide-chain,upp; |
12053-1156 |
from US $25.13 |
||
|
12053A
|
12053A
12053-1157 GUIDE-CHAIN,LWRGuide-chain,lwr; |
12053-1157 |
from US $36.95 |
||
|
13031
|
13031
13031-1191
CRANKSHAFT
|
13031-1191 |
— | ||
| replacement | |||||
|
13031
|
13031
13031-1245
CRANKSHAFT
|
13031-1245 |
— | ||
|
13034
|
13034
13034-1016 METAL,BRG,"BROWN"MARKMetal,brg,"brown"mark; |
13034-1016 |
from US $15.05 |
||
|
13034A
|
13034A
13034-1017 METAL,BRG"BLACK"MARKMetal,brg"black"mark; |
13034-1017 |
from US $17.34 |
||
|
13034B
|
13034B
13034-1018 METAL,BRG,"BLUE"MARKMetal,brg,"blue"mark; |
13034-1018 |
from US $15.05 |
||
|
13034C
|
13034C
13034-1064 BUSHING,CRANKSHAFT,BLUEBushing,crankshaft,bl; |
13034-1064 |
from US $15.05 |
||
|
13034D
|
13034D
13034-1065 BUSHING,CRANKSHAFT,BLACKBushing,crankshaft,bl; |
13034-1065 |
from US $17.34 |
||
|
13034E
|
13034E
13034-1066 BUSHING,CRANKSHAFT,BROWNBushing,crankshaft,br; |
13034-1066 |
US $15.05 |
||
|
13034F
|
13034F
13034-1067 BUSHING,CONNECTING ROD,BLUEBushing,connecting ro; |
13034-1067 |
from US $15.05 |
||
|
13034G
|
13034G
13034-1068 BUSHING,CONNECTING ROD,BLACKBushing,connecting ro; |
13034-1068 |
from US $15.05 |
||
|
13034H
|
13034H
13034-1069 BUSHING,CONNECTING ROD,BROWNBushing,connecting ro; |
13034-1069 |
from US $15.05 |
||
|
13107
|
13107
13107-1142 SHAFT,L=24.5Shaft,l=24.5; |
13107-1142 |
from US $5.86 |
||
|
13251
|
13251
13251-1059-JJ
ROD-ASSY-CONNECTING,K
Rod-assy-connecting,j; |
13251-1059-JJ |
— | ||
| replacement | |||||
|
13251
|
13251
13251-1059-KK
ROD-ASSY-CONNECTING,K
Rod-assy-connecting,j; |
13251-1059-KK |
— | ||
|
13251A
|
13251A
13251-1059-II
Rod-assy-connecting,i
Rod-assy-connecting,i; |
13251-1059-II |
— | ||
| replacements | |||||
|
13251A
|
13251A
13251-1059-KK
ROD-ASSY-CONNECTING,K
Rod-assy-connecting,i; |
13251-1059-KK |
— | ||
|
13251A
|
13251A
13251-1059-JJ
ROD-ASSY-CONNECTING,K
Rod-assy-connecting,i; |
13251-1059-JJ |
— | ||
| replacement | |||||
|
13251A
|
13251A
13251-1059-KK
ROD-ASSY-CONNECTING,K
Rod-assy-connecting,i; |
13251-1059-KK |
— | ||
|
13251B
|
13251B
13251-1059-JJ
ROD-ASSY-CONNECTING,K
Rod-assy-connecting,j; |
13251-1059-JJ |
— | ||
| replacement | |||||
|
13251B
|
13251B
13251-1059-KK
ROD-ASSY-CONNECTING,K
Rod-assy-connecting,j; |
13251-1059-KK |
— | ||
|
13251C
|
13251C
13251-1059-KK
ROD-ASSY-CONNECTING,K
Rod-assy-connecting,k; |
13251-1059-KK |
— | ||
|
92001
|
92001
92001-1887 BOLT,CONNECTING ROD,8Bolt,connecting rod,8; |
92001-1887 |
from US $6.34 |
||
|
92002
|
92002
92002-1192 BOLT,SOCKET,6X14Bolt,socket,6x14; |
92002-1192 |
US $3.48 |
||
|
92002A
|
92002A
92002-1479 BOLT |
92002-1479 |
from US $20.59 |
||
|
92015
|
92015
92015-1311 NUT,FLANGED,8MMNut,flanged,8mm; |
92015-1311 |
from US $4.80 |
||
|
92043
|
92043
92043-076 PIN-NEUTRAL POSITIONPin-neutral position; |
92043-076 |
from US $7.44 |
||
|
92049
|
92049
92049-1013 OIL SEAL,HSCY 25X36X7Oil seal,hscy 25x36x7; |
92049-1013 |
from US $7.76 |
||
|
92049A
|
92049A
92050-081 OIL SEAL,HSCY25397Oil seal,hscy25397; |
92050-081 |
from US $9.39 |
||
|
92057
|
92057
92057-1011 CHAIN,#63-139X50LChain,#63-139x50l; |
92057-1011 |
from US $123.27 |
||
|
92081
|
92081
92081-112 SPRING |
92081-112 |
from US $3.64 |
||
